Wolf ATEX Zone 0 Flood Banks & Handlamps | Hazardous Area Lighting

Published 19 Dec 2020

Wolf Safety Lamp Hazardous Area Lighting

portable Hazardous Area Lighting

Wolf Floodbanks

Wolf ATEX Zone 0 Flood Banks use portable handlamps to deliver a bright flood of light to hazardous work areas including those with potentially explosive atmospheres.

Wolf portable lighting with a flood bank can offer up to 2,100 lumens all in a self-contained and portable unit. The flood bank range is available in either 2, 4 or 6 handlamp bank configurations and the stands can be placed on level ground or mounted on a tripod (available separately) to elevate, direct and focus the light onto the desired working area.

What is Zone 0?

Zone 0 and Zone 20 classified hazardous areas are places in which an explosive atmosphere consisting of either a mixture of flammable substances in the form of gas, vapour or mist (Zone 0) or a cloud of combustible dust (Zone 20) is present in the air continuously or for long periods of time.

An explosive atmosphere is defined as a mixture of dangerous substances with air, under atmospheric conditions, in the form of gases, vapours, mist or dust in which, after ignition has occurred, an explosion could take place.

âž¡ See the full range of Hazardous Area Lighting

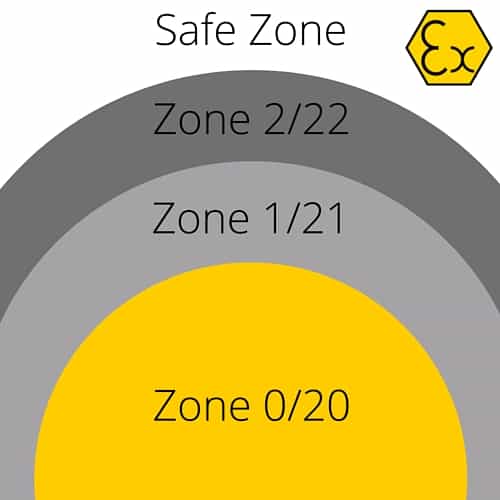

Hazardous Area Zones Explained

Hazardous Area Zones Explained

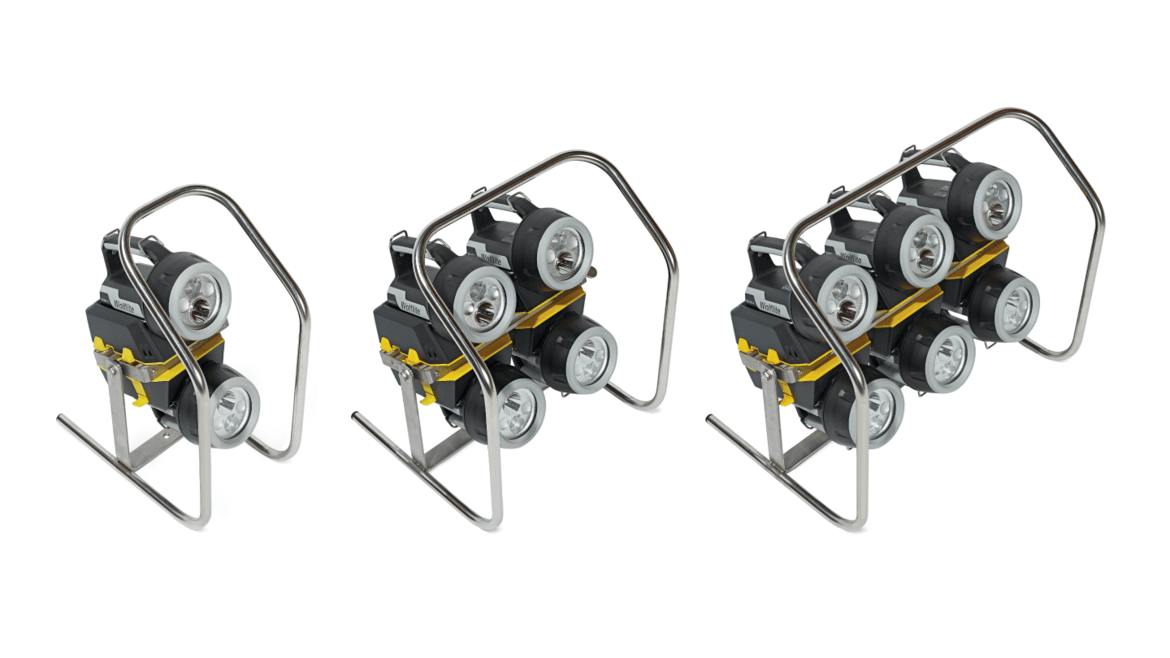

Wolf Zone 0 Floodbanks

Wolf Zone 0 Floodbanks

Wolf ATEX Zone 0 Floodbanks

Models – Wolf XT-602, XT-604, XT-606
Hazardous Area Zones: 0, 1, 2, 20, 21 & 22

The ATEX Zone 0 Flood Bank, manufactured by Wolf, makes use of the excellent performance and reliability of the Wolflite XT Rechargeable Zone 0 Handlamps to collectively deliver a flood of illumination, of up to 2,100 lumens, to a Zone 0 hazardous task area.

Wolf flood bank stands integrate the Wolflite XT Rechargeable Zone 0 Handlamps (Wolf XT-75) which are CE marked to the ATEX Directive and IECEx Certified, for safe use in Zone 0 potentially explosive gas atmospheres, where a T4 temperature class permits.

The XT-75 Zone 0 Handlamps’ bespoke optics coupled with the highest performance ‘fitted for life’ LED light sources deliver an outstanding light output, of over 350lms each, from the high intensity spot beam, switchable to a wide-angle flood. The battery duration at high output is 7.5 hours and 15 hours in powersave mode and is monitored with a state of battery charge indicator.

Made of stainless steel, each stand incorporates handlamp holders with ‘snap-in/snatch-out’ function for quick release but secure retention and allows the bank of handlamps to be manually tilted and locked in position.

The handles makes the banks easily transportable for maintenance tasks and individual handlamps are easily swapped, even with gloved hands, allowing for straightforward function selection and use.

Handlamps can be removed from the stand within the Zone 0 hazardous area to be used for close up inspection work or in awkward to reach places, plus the Flood Bank can act as an emergency backup light source, independent of lead powered lighting.

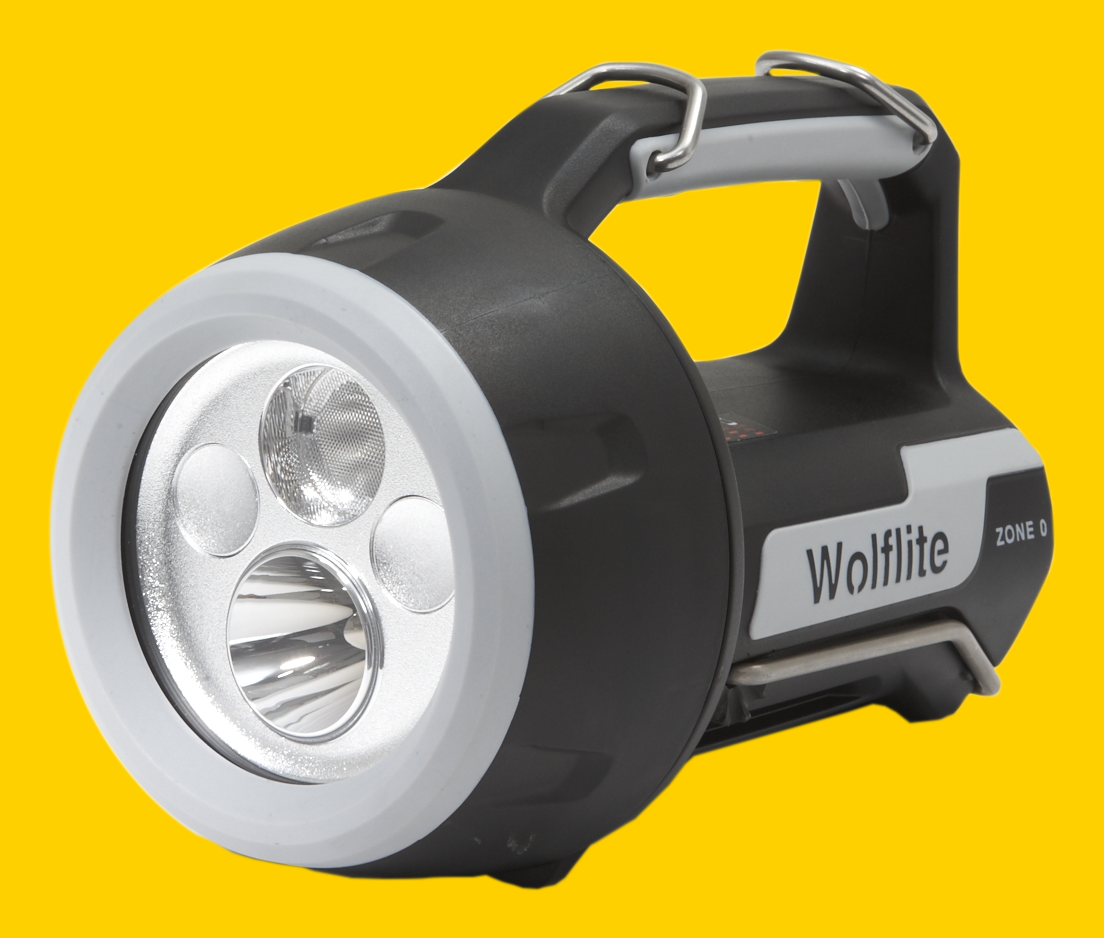

Wolf XT-75 Portable Handlamp

Wolf XT-75 Portable Handlamp



Wolflite XT Rechargeable LED Handlamps

Models – Wolf XT-50, XT-70, XT-70MOD, XT-90, XT-75

Hazardous Area Zones: 0, 1, 2, 20, 21 & 22

The Wolflite XT Rechargeable LED Handlamp range is available in a number of different models in order to optimise performance in specific applications.

Bespoke optics and the high performing ‘fitted for life’ LED light sources deliver outstanding light output from the high intensity spot beam; making them ideal for tasks requiring a higher light intensity. A wide-angle flood option is also available, for tasks requiring a less extensive light.

Additional coloured LED signals can also be added. All products in the XT range feature easy, single-handed changeover even with gloved hands to allow for straightforward function selection and use.

Battery duration varies by model, from 4 hours of high output light (XT-50) to 11 hours (XT-90); by selecting the ‘powersave’ option, the duration can be doubled. The state of battery charge is indicated with a bar of bright red LEDs, which go out as battery charge diminishes and the beam flashes off repeatedly when recharging is required.

The latest lithium-ion battery technology improves reliability and also eliminates the ‘memory’ affect and the ‘quick’ charger base fully recharges the Handlamp in a minimum of 2 hours, dependent on model, and is configured as a holder with ‘snap-in/snatch-out’ function, for quick release but secure retention. Emergency illumination function illuminates Handlamp if power to the charger fails.

Wolf handlamps have a compact, lightweight body which has proven impact resistance even at sub zero temperatures; enhanced by rubber armoured lens ring, and handle/sides give improved grip and shock protection. The lens is resistant to scratches and chemical attack; the enclosure is electrostatic non-hazardous and certified to IP67.

Wolf XT-50 Handlamp

Wolf XT-50 Handlamp

âž¡ For further information, technical specifications and hazardous area ATEX certificates, please see the Wolf Handheld Leadlamps product sections below. Visit portable and temporary lighting for more information about the full range of Wolf Lighting products.

Portable & Temporary Hazardous Area Lighting

When clear vision and brilliant LED light is required in hazardous area locations or confined spaces with potentially explosive atmospheres, Wolf Safety lights provide bold, bright and unfailing portable and temporary lighting. Since 1912, Wolf has been trusted to light the world’s most hazardous and hostile environments – with ATEX & IECEX certified portable lights to provide safe lighting in explosive atmospheres.

Thorne & Derrick are hazardous area lighting specialists stocking a complete range of portable and permanent fixed lighting including both fluorescent and LED technology in standard linear light fittings, wellglass, high bay and floodlight design certified by ATEX for both Zone 1 and Zone 2 hazardous areas.

âž¡ Technical Resources | Hazardous Area Zones | T Class Temperature Ratings | Explosive Atmospheres (Defintions)

Hazardous Area Lighting

Stockists & Suppliers of Wolf Safety Lamp | Portable & Hazardous Area Lighting

Contact Thorne & Derrick for the competitive supply of the complete range of Wolf Safety Lamp portable & temporary lighting products including handlamps, torches, warning lights, tank lighting and floodlights.
