Abtech BPG10 Enclosures – Zone 1 & 2 ATEX

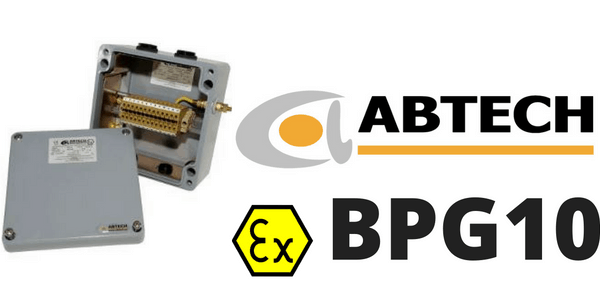

Abtech BPG10 Electrical Enclosures

Abtech BPG10 GRP electrical enclosures are ATEX Certified for use in Zone 1 and Zone 2 hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from GRP and available in a full range of depths and sizes.

  • ATEX EEx e (Zone 1 & Zone 2)
  • ATEX EEx nA (Zone 2)
  • ATEX EEx nR (Zone 2)

The GRP carbon loaded version of the enclosure (Abtech BPGC) helps to reduce the surface resistance of the material and consequently reduce the risk of spark from static build up – please quote Abtech BPGC10 when ordering.

GRP Enclosure

Zone 1 & Zone 2 Hazardous Areas

Enclosure Application

Abtech BPG10 electrical enclosures are suitable for both industrial and hazardous areas.

Protection Degree IP66 or IP67.

Hazardous Area Certification

  • ATEX & IECEx (Zone 1 & 2; Zone 21 & 22)
  • TR CU
  • NEMA 4X (CSA, UL & FM) Class 1 Division 2

Abtech BPG10 GRP Enclosures

Junction Box Specification

Part Reference Enclosure Material  Width mm Length mm Weight g

ATEX
Abtech BPG10 Enclosure GRP 360 160 2150 Zone 1 & Zone 2
Abtech BPGC10 Enclosure Carbon Loaded GRP 360 160 2150 Zone 1 & Zone 2
GRP Electrical Enclosures & Junction Boxes For Hazardous Areas

GRP Electrical Enclosures & Junction Boxes For Hazardous Areas

Abtech BPG10 electrical enclosures, manufactured from GRP, are suitable for Zone 1 and Zone 2 hazardous areas according to the ATEX Directive – the junction box or electrical enclosure can be populated with cable terminals including Weidmuller, Entrelec and Wago types.

Cable Gland Entry Matrix

Cable Gland Size Side A – C  Side B- D
M16 18 4
M20 8 2
M25 6 1
M32 5 1
M40 0 0

Temperature Rating

Hazardous Area: -65°C to +130°C

Non Hazardous: -70°C to +130°C

ENCLOSURE Power Rating

13.793W

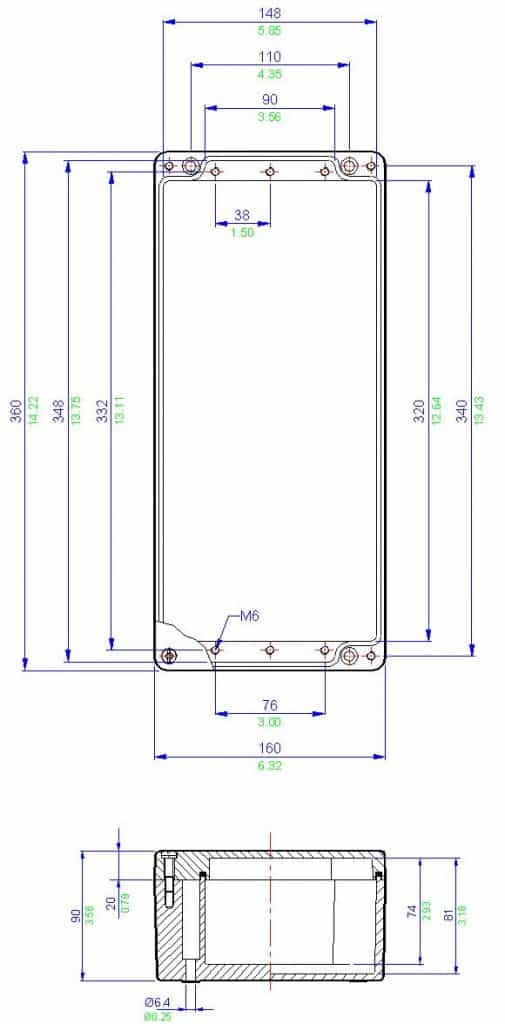

Abtech BPG10 - ATEX Zone 1 Zone 2 Junction Box Electrical Enclosure

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches

Hazardous Area Zone 1 Zone 2 Enclosure Junction Box

T&D Are Main Abtech Stockists: Hazardous Area Power, Control & Instrumentation Junction Boxes & Electrical Enclosures suitable for low voltage and high voltage (3.3kV, 6.6kV, 11kV, 33kV) networks.
