Abtech BPG12 Electrical Enclosures

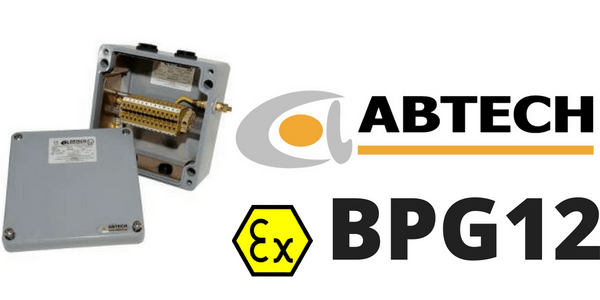

Abtech BPG12 GRP electrical enclosures are ATEX Certified for use in Zone 1 and Zone 2 hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from GRP and available in a full range of depths and sizes.

  • ATEX EEx e (Zone 1 & Zone 2)
  • ATEX EEx nA (Zone 2)
  • ATEX EEx nR (Zone 2)

The GRP carbon loaded version of the enclosure (Abtech BPGC) helps to reduce the surface resistance of the material and consequently reduce the risk of spark from static build up – please quote Abtech BPGC12 when ordering.

GRP Enclosure

Zone 1 & Zone 2 Hazardous Areas

Enclosure Application

Abtech BPG12 electrical enclosures are suitable for both industrial and hazardous areas.

Protection Degree IP66 or IP67.

Hazardous Area Certification

  • ATEX & IECEx (Zone 1 & 2; Zone 21 & 22)
  • TR CU
  • NEMA 4X (CSA, UL & FM) Class 1 Division 2

Abtech BPG12 GRP Enclosures

Junction Box Specification

Part Reference Enclosure Material  Width mm Length mm Weight g

ATEX

Abtech BPG12 Enclosure GRP 255 250 3200 Zone 1 & Zone 2
Abtech BPGC12 Enclosure Carbon Loaded GRP 255 250 3200 Zone 1 & Zone 2
GRP Electrical Enclosures & Junction Boxes For Hazardous Areas

GRP Electrical Enclosures & Junction Boxes For Hazardous Areas

Abtech BPG12 electrical enclosures, manufactured from GRP, are suitable for Zone 1 and Zone 2 hazardous areas according to the ATEX Directive – the junction box or electrical enclosure can be populated with cable terminals including Weidmuller, Entrelec and Wago types.

Cable Gland Entry Matrix

Cable Gland Size Side A – C  Side B- D
M16 15 12
M20 10 8
M25 6 4
M32 3 2
M40 3 2

Temperature Rating

Hazardous Area: -65°C to +130°C

Non Hazardous: -70°C to +130°C

ENCLOSURE Power Rating

15.474W

Abtech BPG12 - ATEX Zone 1 Zone 2 Junction Box Electrical Enclosure

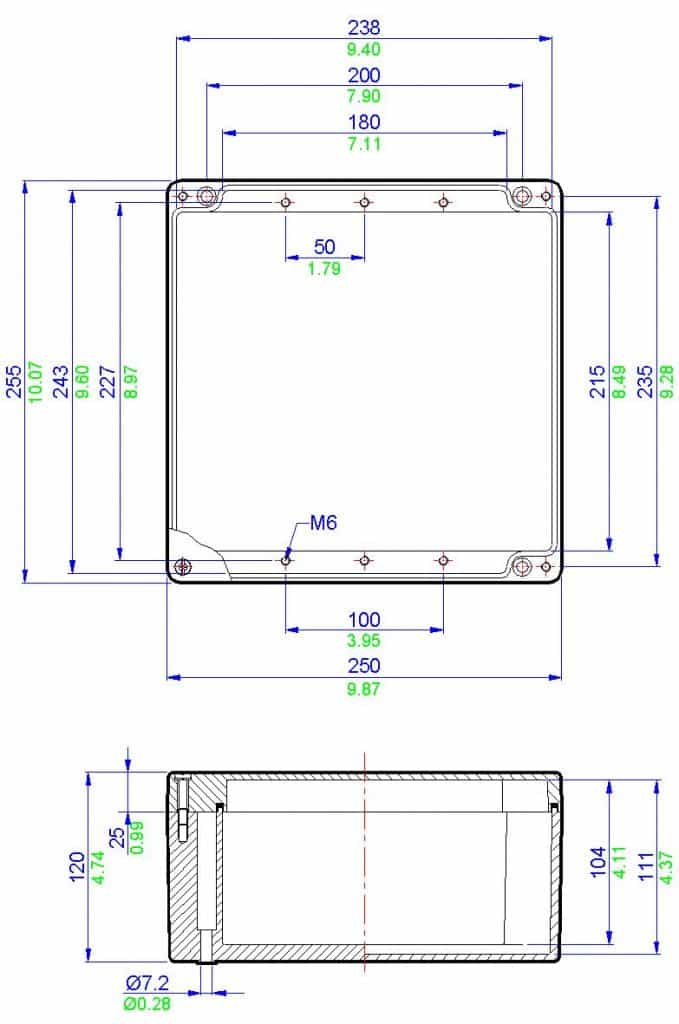

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches

Hazardous Area Zone 1 Zone 2 Enclosure Junction Box
