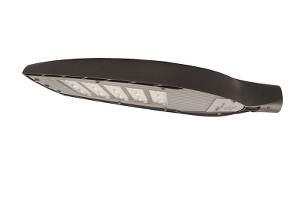

The Abtech STR-1 is an ATEX certified Zone 2 LED street light designed for use in Zone 2 Gas and Zone 21 Dust environments. The Zone 2 LED streetlight is an LED luminaire with excellent horizontal distribution. The LED light source provides an energy efficient, crisp white light. When combined with an appropriate lens from the range of options, the STR-1 streetlight is flexible enough for almost all hazardous area roadway and perimeter lighting applications.

Abtech LX2STR5LB41 manufactured from marine grade Aluminium, the Abtech STR-1 is designed to withstand the extreme climatic and corrosive conditions associated with Zone 2 hazardous area operation. The LED streetlight’s control gear has also been developed for heavy industrial use and features built in harmonic and overvoltage protection.

Zone 2 LED Streetlight Hazardous Area ATEX – Abtech STR1

Zone 2 LED Streetlight Hazardous Area ATEX – Abtech STR1

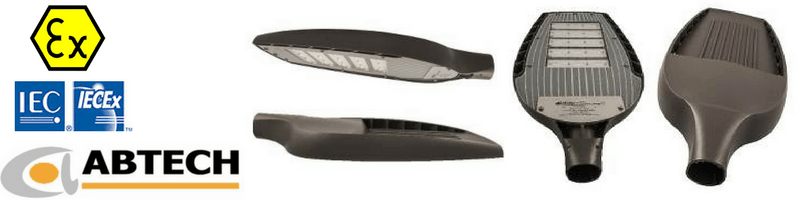

Zone 2 LED Streetlight Hazardous Area ATEX

Features

  • Part Number: LX2STR5LB41
  • Low windage design suitable for mounting on poles 7-10m
  • High performance optical design for maximum spacing between poles
  • Maintenance free LED design with five-year complete system warranty
Luminaire Type Zone 2 LED road lantern
Ingress Protection IP66 to EN60529
Material Epoxy painted die cast marine grade Aluminium body, toughened glass window, silicone gasket and stainless steel fixings
Distribution/output ERS standard road luminance optic
Lamp Types Light emitting diode (4100K)
LED Life 60,000 hours L80 @ 50°C
Colour Rendering Index >75
Cable Entry 1 x M20 clearance hole
Terminals Terminals block for up to 4mm2 conductors
Control Gear HF electronic driver with overvoltage and harmonic protection to EN61000-3-2, EN 61000- 3-3 and EN 61000-4-5
Orientation Horizontal, beam down
Mounting Side arm mounting – Ø60 to Ø62mm
Supply 90 to 305V 50/60Hz ac

ABTECH STR1 ZONE 2 LIGHTING

LUMINAIRE RATINGS

Abtech Product Reference LampType Lumen Output (lm) Power (W) Windage (m2) Ambient Temperature Weight (kg)
LX2STR5LB41 LED 12,348 120 0.07 – 50°C to +55°C 11Kg



Zone 2 LED Streetlight Abtech STR1 - Dimensions

Zone 2 LED Streetlight Abtech STR1 – Dimensions

HAZARDOUS AREA CERTIFICATION

Abtech STR1 LED streetlights are certified according to leading hazardous area classifications including:

  • Area Classification Zone 2 & 22, Gas and Dust
  • Type of Protection Ex nR (restricted breathing)
  • Apparatus Coding Ex nR IIC T* Gc, Ex tc IIIC T100ºC Dc
  • Certificate Number AB15ATEX4111X

T&D, The Explosive Atmosphere Experts, provide a single-source capability for the most extensive range of Electrical, Mechanical, Process & Instrumentation Equipment suitable for hazardous area locations.
