Abtech SX8 Enclosures – Zone 2 ATEX

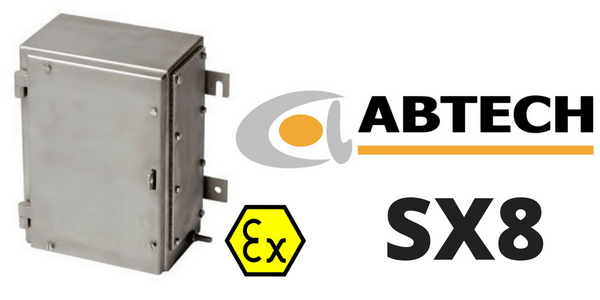

Abtech SX8 Electrical Enclosures

Abtech SX8 hazardous area enclosures are ATEX Certified for use in Zone 1 and Zone 2 hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from stainless steel and available in a full range of depths and sizes.

  • ATEX EEx e (Zone 1 & Zone 2)
  • ATEX EEx nA (Zone 2)
  • ATEX EEx nR (Zone 2)

The mild steel version of the enclosure (Abtech MSX) is available with a number of paint options (most RAL colours are available) and anti-corrosion finishes – please quote Abtech MSX8 when ordering.

Stainless Steel Enclosure

Zone 1 & Zone 2 Hazardous Areas

Enclosure Application

Abtech SX8 electrical enclosures are suitable for both industrial and hazardous areas.

Protection Degree IP66 or IP67.

Hazardous Area Certification

  • ATEX & IECEx (Zone 0, 1 & 2; Zone 20, 21 & 22)
  • CSA Ex e (Class 1 Zone 1 & Zone 2)
  • FM AEx e (Class 1 Zone 1 & Zone 2)
  • TR CU Ex e (Zone 1 & Zone 2)
  • NEMA 4X (CSA, UL & FM)
  • Class 1 Division 2

Abtech SX8 ELECTRICAL Enclosures

Junction Box Specification

Part Reference Enclosure Material  Width mm Length mm Weight g

ATEX
Abtech SX8.140 Enclosure Stainless Steel 372 324 9500 Zone 1 & Zone 2
Abtech SX8.200 Enclosure Stainless Steel 372 324 11300 Zone 1 & Zone 2
Abtech SX8.300Enclosure Stainless Steel 372 324 14300 Zone 1 & Zone 2
Abtech MSX8.140 Enclosure Mild Steel 372 324 9500 Zone 1 & Zone 2
Abtech MSX8.200 Enclosure Mild Steel 372 324 11300 Zone 1 & Zone 2
 Abtech MSX8.300 Enclosure Mild Steel 372 324 14300 Zone 1 & Zone 2
Stainless Steel Electrical Enclosures & Junction Boxes For Hazardous Areas

Stainless Steel Electrical Enclosures & Junction Boxes For Hazardous Areas

Abtech SX8 electrical enclosures, manufactured from stainless steel, are suitable for Zone 1 and Zone 2 hazardous areas according to the ATEX Directive – the junction box or electrical enclosure can be populated with cable terminals including Weidmuller, Phoenix and Wago types.

Cable Gland Entry Matrix

Cable Gland Size Side A – C  Side B – D
140 200 140 200
M16 45 90 72 150
M20 36 60 58 100
M25 18 45 30 72
M32 12 24 20 40
M40 10 20 17 32

Temperature Rating

Hazardous Area: -50°C to +175°C

Non Hazardous: -60°C to +200°C

ENCLOSURE Power Rating

119.462W

Abtech SX8 - ATEX Zone 1 Zone 2 Junction Box Electrical Enclosures

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches.

Hazardous Area Zone 1 Zone 2 Enclosure Junction Box
