ATEX Fan Heaters | Zone 1 & Zone 2 Hazardous Areas

Hazardous Area Fan HEATERS

ATEX Certified | Up to 40kW

Zone 1 & Zone 2 (IIB + H2) | T2 T3 & T4 Temperature Classes

EXHEAT LFH Fan Heater combines superior electrical heating efficiency with simple functionality to provide a next-generation heating solution for use in hazardous area environments where the explosive atmosphere is classified as Zone 1/2 (IIB+H2) according to the ATEX Directive.

Certified to the new EN 80079-36 and EN 80079-37 standards for constructional safety, the EXHEAT LFH is supplied ready to ‘plug and play’, with the option of fitting a plug, or hard wiring to an isolator unit.

Incorporating a stainless steel casing for added toughness and durability, the LFH electric fan heater manufactured by EXHEAT is designed to operate in ambient temperatures of -40°C to +40°C, and uses a framework allowing for multiple mounting options on floors, walls and even ceilings in explosive atmospheres.

Depending on the heater model selected, inlet air temperatures can be increased by up to 46°C. Heaters are available up to 40kW output and provide class leading, energy efficient heating solutions for both onshore and offshore applications.

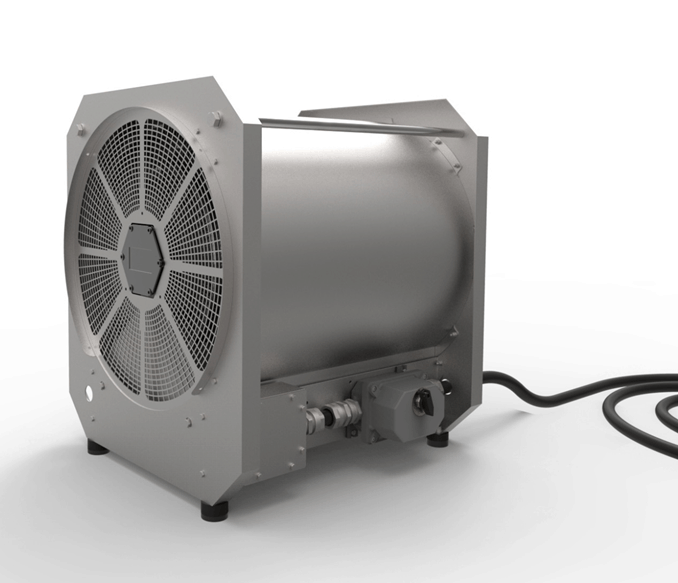

ATEX Heaters

Fixed Heater Version. Shown with wall mounting brackets – other mounting options available on request.

Portable & Temporary Heating Solution for Explosive Atmospheres

The EXHEAT LFH can also be manufactured and supplied as a portable configuration with options for anti-static castors, lifting handles, built in isolator and controls if required. The portable version can also be ducted front and rear to provide a versatile and portable heating solution for hazardous area locations.

Portable & Temporary Heating Solution for Explosive Atmospheres

ATEX Heaters Ducting

Electrical heaters can be ducted in hazardous areas


Electrical Heating

Manufactured with robust stainless steel housing the fan heater is suitable for onshore and offshore heating in the following applications:

  • Fabric Maintenance
  • Battery Stores
  • Localised Heating
  • Offshore Containers
  • Oil Drilling
  • Oil Refineries
  • Paint Curing
  • Paint Store
  • Production Platforms
  • Spray Booth
  • Crane and Hoist Houses
  • Pulp & Paper Mills
  • Grain Elevators
  • Hazardous Waste Storage Facilities

EXHEAT LFH Fan Heater

Features

Main Materials

  • Casing: Stainless steel
  • Impeller: PA66
  • Element: Finned stainless steel tubular elements
  • Ex e Enclosure: Stainless steel
  • Ex d Enclosure: Anodised extruded aluminium

Dimensions

  • LFH: Length 540mm, Width 600mm, Height 600mm – 50kgs
  • XLFH: Length 690mm, Width 720mm, Height 680mm – 60kgs
ATEX Electrical Heaters

The EXHEAT LFH electric heater is stackable for increased heat output

Hazardous Area CertificationATEX IECEx Electrical Heaters

ATEX

 II 2 G D Ex h
Ex db eb IIB+H2 T3…T4 Gb
Ex tb IIIC T200°C…T135°C Db

IECEx

Ex db eb h IIB+H2 T3…T4 Gb
Ex tb IIIC T200°C…T135°C Db

CU TR (EAC)CU TR (EAC) Certified Electric Fan Heaters

1Ex db e IIB+H2 T4…T3 Gb X
Ex tb IIIC T135°C…T200°C Db X

EXHEAT LFH

Performance Data

Should you require any technical advise our support to enable the selection of the correct heater please contact our Sales Team to discuss your application.

At 50Hz At 60Hz
Performance Data LFH XLFH LFH XLFH
Air Velocity m/s (average) 5.5 6 6.6 7.2
Volumetric Flow Rate (m3/hr) 1950 3050 2340 3660
Fan Speed (min-1) 1380 1380 1460 1460
Motor Rating (kW) 0.55 1.1 0.55 1.1
Sound Pressure (dBA) 78 83 80 85

Product Range

The EXHEAT LFH fan heater is available in a range of models and specifications – contact us to discuss your explosive atmosphere heating application.

Fan Model Voltage (V) Duty (kW) Maximum Current (A) 2 Air Delta T (°C/°F) 3
LFH – T4 440 9 13 26 / 47
415 8 12 23 / 41
400 7.5 12 22 / 40
380 6.5 10 19 / 34
230 (3Ph) 7.5 12 22 / 40
Up to 690 1 Up to 9 Based on Voltage Up to 26 / 47
LFH – T3 440 15 21 38 / 68
415 13.5 20 34 / 61
400 12.5 19 32 / 58
380 11 18 28 / 50
230 (3Ph) 12.5 33 32 / 58
Up to 690 1 Up to 15 Based on Voltage Up to 38 / 68
LFH – T2 Up to 690 24 Up to 38 TBC
LFH-C with Advanced Controls Up to 690 24 38 TBC



Fan Model Voltage (V) Duty (kW) Maximum Current (A) 2 Air Delta T (°C/°F) 3
XLFH-T4 440 14.5 20 32 / 58
415 13 19 29 / 52
400 12 18 26 / 47
380 11 17 24 / 43
230 (3Ph) 12 32 26 / 47
Up to 690 1 Up to 14.5 Based on Voltage Up to 37 / 64
XLFH-T3 440 24 32 46 / 82
415 21.5 31 41 / 74
400 20 30 38 / 68
380 18 28 34 / 61
230 (3Ph) 20 55 38 / 68
Up to 690 1 Up to 24 Based on Voltage Up to 46 / 82
XLFH-T2 Up to 690 40 Up to 63 TBC
XLFH-C with Advanced Controls Up to 690 40 63 TBC
    1. LFH and XLFH fan heaters are also available in 480V, 600V and 690V options.
    2. Maximum currents include motor inrush.
    3. Air Delta T values taken at outlet.

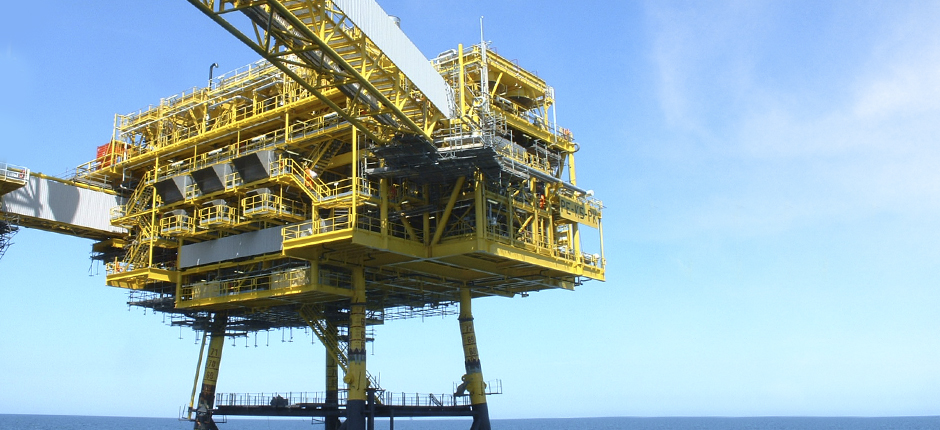

Electrical Heating Offshore ATEX Certified


Additional Portable Heater Option

The MFH Portable Fan Heater manufactured by EXHEAT and Distributed Exclusively in the UK by Thorne & Derrick is the world’s first truly portable fan assisted heater with dual hazardous area ATEX & IECEX Certification - commonly referred to as the Bulldog heater.

EXHEAT MFH | Bulldog Heater

EXHEAT MFH Bulldog Heater

The MFH Portable Fan Heater manufactured by EXHEAT and Distributed Exclusively in the UK by Thorne & Derrick is the world’s first truly portable fan assisted heater with dual hazardous area ATEX & IECEX Certification – commonly referred to as the Bulldog heater.

The Bulldog heater is the safest and most efficient portable heating solution available and has been extensively adopted by the process and hazardous area industries

EXHEAT MFH electric heater safely provides temporary and portable air warming to workplaces in potentially explosive atmospheres.

Thorne & Derrick in consultation with several international oil and gas E&P companies have developed an offshore model which has received an Offshore Inspection Release Notice.
