Zone 2 LED Light Fitting

ATEX Classification – Ex II 3GD Ex ec mc IIC T4 Gc | Ex II 3GD Ex tc IIIC T135°C Dc Protection: IP 66 / IP 67

Petrel‘s LED Area light fittings are suitable for Zone 2 hazardous area lighting for use in gas and dust areas.

The brand new LED Area Light is a high efficiency luminaire which boasts an impressive light output from 13,000 to 24,000 Lumens (Subject to variant).

Certified for use in Zone 2, 22 this is a modern and versatile lumminaire. The high quality corrosion resistant aluminium body gives excellent durability in offshore environments, and the LED light engine provides a long service life which is virtually maintenance free.

Zone 2 light fittings are designed to provide a high light output using the very latest LED technology and is available in a variety of sizes.

➡ View full range of hazardous area lighting.

Please Note: This range has superseded the Zone 2 Hazardous Area Floodlight – Petrel ZT

Hazardous Area Zone 2 Lighting LED

Zone 2 LED – Hazardous Area Lighting For Potentially Explosive Atmospheres In Both Onshore & Offshore Locations

Zone 2 led light fitting

Hazardous Area Lighting

Hazardous Area Zone 2 Lighting Stockists & Suppliers Shipping Worldwide

Hazardous Area ATEX Certified

  • Certification and Hazardous Area Approval Certification Code: Ex II 3GD Ex ec mc IIC T4 Gc | Ex II 3GD Ex tc IIIC T135°C Dc
  • Certification Number: CML 17ATEX3036X IECEx CML 17.0018X
  • Protection: IP 66 / IP 67

Zone 2 LED Lighting ATEX

Benefits & Options

Petrel XN LED Zone 2 light fitting is designed as a low maintenance fitting with a maximum light output that provides the following benefits:

  • Low maintenance high efficiency LED light source
  • High quality corrosion resistant aluminium alloy body
  • Durable construction
  • Virtually maintenance free
  • Steel swivel mounting bracket
  • Long service life
  • Tempered glass lens cover
  • Flood light

➡ See also Hazardous Area Enclosures & Junction Boxes – conventional Zone 2 fluorescents are available in both single and twin type versions up to 58 watts.

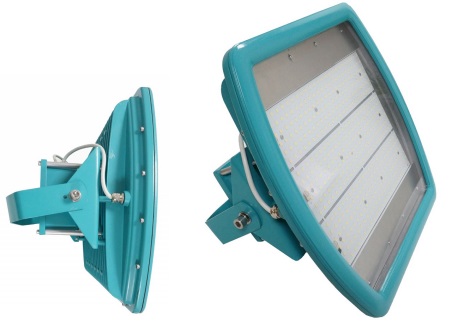

Petrel LED Area Light

Petrel LED Area Light

Zone 2 LED Light fitting

Petrel XN Technical Data

Petrel Area LED Light Fitting Specification Details
Full Hazardous Area Certification Code Ex II 3GD Ex ec mc IIC T4 Gc
Ex II 3GD Ex tc IIIC T135°C Dc
Temperature Rating -40°C to +55°C
Certificate CML 17ATEX3036X
IECEx CML 17.0018X
Suitable Zoned Areas Zones 2 & 22
Material Corrosion resistant aluminium alloy with tempered glass lens
Ingress Protection IP66 / IP67
Cable Entries 2 off M20/M25 entries
Electrical Connections Up to 4mm2 multi or single conductor
Light Fitting Source High efficiency LED
Light Output
Various ranging from 13,000lm @84W to 24,000lm @156W (max)
Supply Voltage 220V-240V AC 50/60 Hz as standard
Installation/Mounting Steel swivel mounting bracket
Control Gear Integral within the luminaire
Dimensions 400mm x 400mm x 231mm
Weight
11kg



Zone 1 LED Luminaire ATEX - Petrel LED Area Light - Dimensions

ATEX LED Light | Zone 2 Hazardous Area Lighting Ex ec mc – Petrel LED Area Light – Dimensions

Ordering Information
Part Number Light Fitting Description Light Source Light Output Power Consumption
ALED/Z2/85 ZONE 2 AREA LIGHT LED 13,000lm 84W
ALED/Z2/150  ZONE 2 AREA LIGHT LED 24,000lm 156W
