ATEX Mobile Phone Zone 2/22 Hazardous Area – Ecom Smart-Ex 02 DZ2 Smart Phone

ATEX Mobile Phone Zone 2 22 Hazardous Area – Ecom Smart-Ex 02 DZ2 Smartphone

ATEX MOBILE PHONES

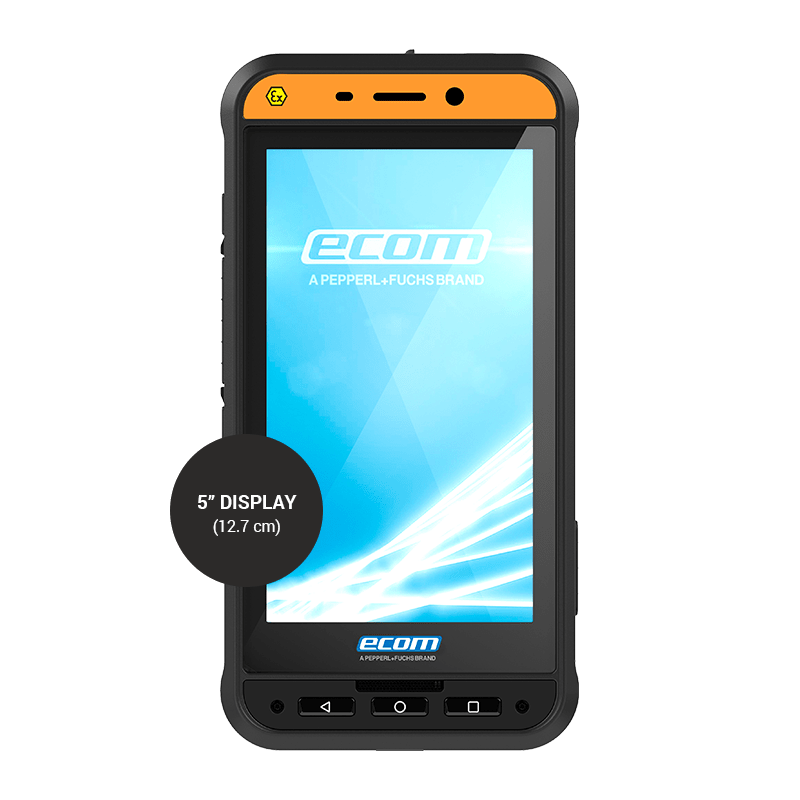

Ecom Smart-Ex 02 DZ2 Mobile Phone with Explosion Protection

Zone 2 & Zone 22 Division 2 Hazardous Area Locations

Ecom Smart-Ex 02 DZ2 is the successor of the world’s first intrinsically safe smartphone suitable for use within Zone 2, Zone 22 and Division 2 hazardous areas and explosive atmospheres. The Ecom Smart-Ex 02 DZ2 ATEX mobile phone has a large, high-resolution display, powerful features, and optimised accessories.

In addition, the smartphone meets all important global hazardous area and regulatory certifications. The ATEX mobile phone also provides access to productivity applications and worker safety in hazardous area locations and is part of the Ecom hazardous area mobile communications range.

ATEX Certification
II 3G Ex ic op is IIC T4 Gc IP64
II 3D Ex ic op is IIIC T120°C Dc
Ta = -20 °C to +60 °C

➡ Are you interested in a mining-certified version? Take a look at the Ecom Smart-Ex 02M (link).

➡ See the complete ranges of Mobile Communications Products with ATEX & IECEX Certifications for Explosion Protection of workers in Zone 1 / 21 (Gas) & Zone 2 / 22 (Dust) including Div. 1 & Div. 2 Potentially Explosive Atmospheres – improve workforce productivity, data quality and the speed and accuracy of decision-making in hazardous areas | Mobile Phones & Smartphones | Tablets | Telephones | Computers

Ecom ATEX Mobile Phones & Tablets

ATEX Mobile Phone Zone 2/22 Hazardous Area – Ecom Smart-Ex 02 DZ2 Smart Phone

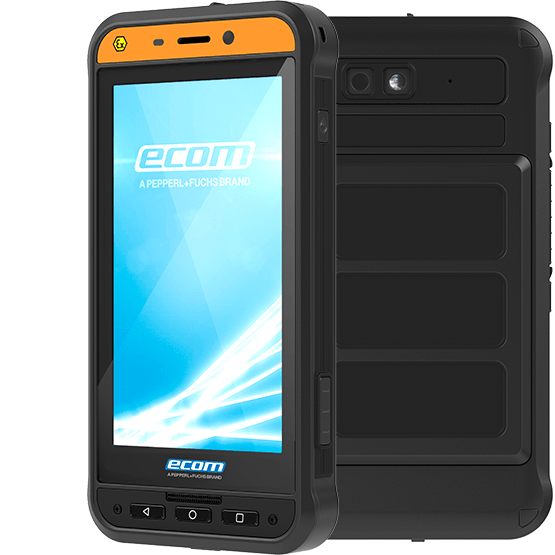

Ecom Smart-Ex 02 DZ2 Smartphone

Ecom Smart-Ex 02 DZ1 Smartphone is designed to support 21 LTE frequency bands, the Smart-Ex 02 has no SIM lock and can be connected to different networks worldwide. An Android operating system enables the intrinsically safe device to work safely, quickly, and efficiently.

The ergonomic design and intuitive user interface enhance the user experience, and optimised accessories and peripherals ensure total compatibility with current and future Ecom products. With the most powerful replaceable battery on market (4400 mAh), longer shifts and 24-hour work coverage are possible.

Regular security updates prevent unauthorised access to the smart phone’s confidential, personal and company data. Long term use is provided thanks to the Ecom three year service level agreement.

To ensure unlimited, long-term use of the smartphone, ecom offers a three-year service level agreement. Pepperl+Fuchs’ global sales and service network provides excellent customer service around the globe. Support from ecom’s system engineers and development teams is also available when software requirements change.

Thorne & Derrick distribute the Ecom range of hazardous area mobile communications and computing solutions – including mobile phones, smartphones, handheld comp uters, laptops, tablet computers, PDAs and bar-code scanners with ATEX and IECEx certification.

➡ The State-of-the-Art Intrinsically Safe Smartphone for Global Hazardous Areas. The Smart-Ex® 02 is available for Hazardous Area Zone 1/21 (Flammable Gas) + Zone 2/22 (Combustible Dust) and Division 1 + 2 as well as harsh industrial environments – the ATEX smartphone is available with a range of standard mobile phone accessories including RFID Barcode Scanner, Remote Speaker Microphone, EX Camera & Thermal Imager and Smart Watch.

ATEX MOBILE PHONE

ECOM SMART-EX 02 DZ2 KEY FEATURES

Ecom Smart-Ex 02 DZ2 smart phone provides safe mobile communications for hazardous area workers:

4G / LTE standard (SIM unlocked)
Supports Dual-SIM
Supports 21 LTE bands
3 GB RAM, 32 GB ROM
Up to 128 GB additional memory with microSD
WiFi Standard 802.11 a/b/g/n/ac/e/k/r/h
WiFi 2.4 Ghz und 5 Ghz support
Bluetooth^® 4.2 incl. BLE
GPS / A-GPS / Glonass / Beidou / Galileo / NFC
2 cameras: 12 MP camera with autofocus and LED flash + 5 MP camera
Waterproof magnetic USB 2.0 connection
Replaceable 4400 mAh battery

ATEX Mobile Phone Zone 2/22 Hazardous Area – Ecom Smart-Ex 02 DZ2

ATEX MOBILE PHONE ZONE 2 Zone 22 HAZARDOUS AREA

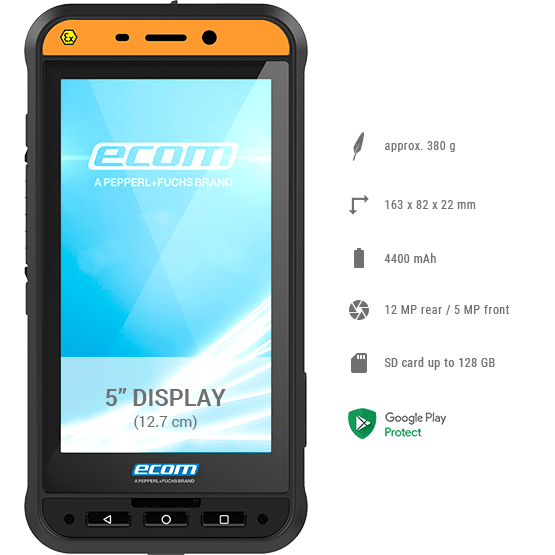

ECOM SMART-EX 02 DZ2 Smart Phone – Technical Data

ATEX Phone Operating System	Android 9.0
Processor	Qualcomm Snapdragon 450 platform
Band	Cellular frequency bands: 4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B20, B21, B25, B26, B28, B66, B71 4G LTE TDD: B38, B39, B40, B41 3G UMTS: 850 / 900 / 1700 / 1900 / 2100 MHz 2G GSM: 850 / 900 / 1800 / 1900 MHz
Memory	3 GB RAM, 32 GB ROM
User Memory	SD card up to 128 GB
Display	12.7 cm (5.0″) extreme shock and scratch resistant Gorilla® Glass with glove touch and wet mode
Ports	3.5 mm jack connection with special com mounting solution 7-pins water-proof magnetic USB 2.0 connector
ATEX Smartphone Dimensions	163 x 82 x 22 mm
Weight	approx. 380 g
Dedicated Keys	Programmable key / Alarm / Power / Multifunction / Volume / Hardware buttons for Android features
Connectivity	4G / LTE -standard (SIM unlocked); LTE Dual SIM; Nano SIM WiFi 2.4 Ghz and 5 Ghz support WiFi standards 802.11 a/b/g/n/ac/e/k/r/h Bluetooth® 4.2 incl. BLE (Bluetooth Low Energy) GPS / A-GPS / Glonass / Beidou / Galileo NFC
Camera	12 MP rear with autofocus and LED flash with flashlight function / 5 MP front (optional)
Battery	Replaceable Li-Ion Battery pack with 3.7 V / 4400 mAh / 16.28 Wh
LTE Standby Time	up to 350 hours
Protection Class	IP68, MIL-STD-810G

ATEX Mobile Phone Technical Data

Hazardous Area INTERNATIONAL Certifications

Ecom Smart-Ex 02 DZ2 smart phone is ATEX certified to most international hazardous area certification bodies including ATEX, IECEx & SGS (CEC | NEC):

ATEX (Europe)

II 3G Ex ic op is IIC T4 Gc IP64
II 3D Ex ic op is IIIC T120°C Dc
Ambient temperature: Ta = -20 °C to +60 °C

IECEx (International)

Ex ic op is IIC T4 Gc IP64
Ex ic op is IIIC T120°C Dc
Ambient temperature: Ta = -20 °C to +60 °C

SGS (CEC / NEC)

Class I, II, III, Division 2, Groups A-G, T4, IP64
Ex ic IIC T4 Gc
Ex ic IIIC T120°C Dc
Cl I Zn 2, AEx ic IIC T4 Gc
Zn 22, AEx ic IIIC T120°C Dc
Ambient temperature: Ta = -20 °C to +60 °C, IP64

Ecom Smart-Ex Hazardous Area Mobile & Smart Phones – Safe Working In Explosive Atmospheres

Ecom Mobile Communications

Ecom (a Pepperl & Fuchs brand) are responsible for protecting people, places and equipment in the most challenging of workplaces anywhere in the world. Typical applications and industries for Ecom hazardous area equipment include the global oil and gas industry, petrochemical plants, mining and underground processes.
