Eltherm ELSR-W Heater Cables – Trace Heating

Eltherm ELSR-W self-regulating trace heating cables provide process temperature maintenance and frost protection to pipework, instrument lines, tanks and drums up to 100° Celsius.

The ELSR-W heater cable is frequently used to heat oil and fat lines within the food processing industry and can also be used for hot water temperature maintenance to prevent Legionella formation.

Eltherm ELSR-W HEATer CABLE – SPECIFICATION

Eltherm ELSR-W Heater Cable wattages per metre – Water Supply Lines: 9 watts at 55ºC, 13 watts at 65ºC. Fat/Oil Lines: 22 watts at 40ºC.

• Nominal Supply Voltage : 230v
• Maximum Exposure Temperature : Power off 100°C, power on 80°C
• Minimum Installation Temperature : -20° Celsius
• Minimum Heater Cable Bend Radius : 20mm
• Heater Cable Outer Jacket: TPE-O
• Bus Wire: Nickel plated copper

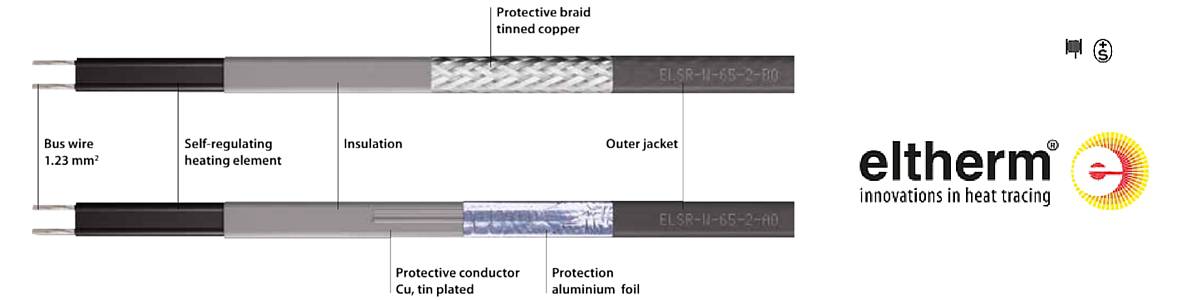

Eltherm ELSR-W self-regulating heater cables are available in two cable designs:

• BO: Protective braid and a thermoplastic outer jacket
• AO: Aluminium foil and a thermoplastic outer jacket

Eltherm ELSR-W Heater Cable : Process Temperature Maintenance

Trace Heating Cable Selection Table – Eltherm ELSR-W

Contact T&D for technical guidance, heat loss calculations for pipework systems and optimum specification of the correct trace heater cable for your application.

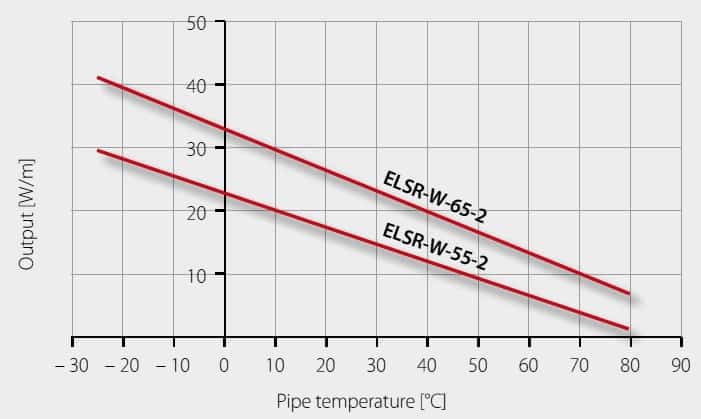

Eltherm ELSR-W heater cable power output on insulated metallic pipes in accordance with EN 62395-1

Eltherm ELSR-W – Applications

• Food processing industry
• Heat tracing on fat lines
• Drainage lines in canteens and large-scale kitchens
• Frost protection for heating lines
• Installation on hot water supplies to prevent Legionella formation

Eltherm ELSR-N HEATer CABLES

Eltherm video providing a step-by-step termination of ELSR-N heater cable using a EL-ECN termination kit.

Eltherm Heat Tracing With ELSR-W Heater Cables

Eltherm ELSR-W heating cables provide temperature maintenance and frost protection to pipework and mechanical services in all industries – typical applications include heating process pipework, instrument lines and storage tanks to maintain viscosity or prevent frost damage as an integral work-task of plant Winterisation.

Eltherm ELSR-W cables utilise cold-applied installation components to complete the trace heating system – no requirement for “hot-working” permit applications in potentially explosive atmospheres, including Zone 1 and Zone 2 hazardous areas.

T&D provide value-added specification and design services for both onshore and offshore process heating of pipework, tanks and vessels using trace heating cables and systems. Image : Abtech.

OFFSHORE TRACE HEATING

Trace heating cables provide frost protection for operations and safety purposes in both safe and hazardous areas : loading and unloading pipelines, gas vapour return lines, fire protection lines, strip and cleaning pipelines, fuel oil lines, storage tanks and vessels, deck and tank cleaning lines, engine room fuel and drip lines, cross-over lines, manifolds and safety showers.

Anti-icing or de-icing of escape passages, walkways, staircases and handrails. Water pipe freeze protection is critical for production and process water pipes, fresh/potable and waste water piping and piping used for offshore fire protection systems.
