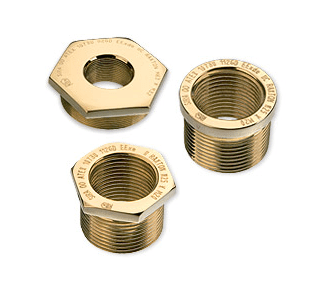

Raxton Exe Ex d Reducers

Electrical Thread Conversions & Cable Installation Solutions for Hazardous Areas & Explosion Proof/Protection Applications

Exe Exd reducers

Flameproof & Increased Safety Reducers

ATEX

Adaptors | Flameproof & Increased Safety

Raxton Exd/Exe hazardous area reducers provide a means of electrical connection between different thread forms and sizes – reducers are ATEX Certified. They effectively reduce the threaded entry diameter of an enclosure to accept a smaller gland of alternative thread forms.

Standard Exe Exd reducers, manufactured by Raxton, have a hexagonal body, or for applications where space is a critical factor, reducers with a circular head can be offered having a diameter equal to the across flats dimension of the hexagonal head.

Raxton flameproof (Exd) and increased safety (Ex e) reducers are marked with the applicable approval number and size.

Certified reducers should be used following the basic rules in line with good engineering practice:- no more than one reducer should be used at one time.

Materials

  • Brass: BS2874: 1985 CZ121
  • Mild Steel: BS970 PT3 230M07
  • Stainless Steel: BS970 PT3 316 S11
  • Aluminium: BS1474/1 6082 T4 or T6
  • Aluminium Bronze: BS1400 1985 AB2 or BS2874:1986 CA104

Raxton Exe & Exd reducers are available in a variety of finishes including Nickel, Electro Zinc, Zinc Passivated, Chromatised, Electroless Nickel and Anodised.

exd exe reducer dimensions

The ATEX Certified reducers are suitable for both Zone 1 & Zone 2 hazardous area installations.

Thread Metallic Male Thread Max Bore Nylon Male Thread Max Bore
M16 20.8 22.0
M20 23.4 25.0
M25 27.9 30.0
M32 37.6 38.0
M40 47.2 46.0
M50 56.4 56.0
M63 70.1 70.0
M75 80.0 81.0
M90 105.0 96.0

Hazardous Areas

The hazardous area reducers are Flameproof and are certified and approved to the following international hazardous area classifications and Increased Safety Standards.

Approvals & Certifications: Sira 10ATEX1225X | IECEx SIR 07.0010X | CSA 200455-1003277 | GOST TС С-GB.ГБ06.В00105 | INMETRO NCC 12.0764X | NEPSI GYJ13.1313X

reducer Thread selection

  • Isometric (ISO) to BS3643:1981 and ISO 965 Pts 1 & 3
  • Imperial (ET) to BS31:1940 (1979)
  • National Pipe Thread (NPT) to ANSI/ASME:1983
  • British Standard Pipe (BSP) to BS21:1985
  • Pg to DIN 40430:1971

These reducer selection tables identify the standard thread variations produced and are designed to assist the user in selecting the correct hazardous area Exe/Exd reducer suitable for use in Zone 1 or Zone 2 potentially explosive atmospheres according to the ATEX Directive.

Isometric to BS 3643:1981

Adaptor Size Major Diameter (mm) Threads per Inch Pitch
16mm (M16) 16 16.93 1.50
20mm (M20) 20 16.93 1.50
25mm (M25) 25 16.93 1.50
32mm (M32) 32 16.93 1.50
40mm (M40) 40 16.93 1.50
50mm (M50) 50 16.93 1.50
63mm (M63) 63 16.93 1.50
75mm (M75) 75 16.93 1.50



National Pipe Thread to ANSI/ASME: 1983

Adaptor Size Major Diameter (mm) Threads per Inch Pitch
1/8″ NPT 10.30 27 0.94
1/4″ NPT 13.72 18 1.41
3/8″ NPT 17.15 18 1.41
1/2″ NPT 21.34 14 1.81
3/4″ NPT 26.67 14 1.81
1″ NPT 33.40 11 1/2 2.20
1 1/4″ NPT 42.16 11 1/2 2.20
1 1/2″ NPT 48.26 11 1/2 2.20
2″ NPT 60.33 11 1/2 2.20
2 1/2″ NPT 73.03 8 3.175
3″ NPT 88.90 8 3.175
4″ NPT 114.30 8 3.175



British Standard Pipe to BS 21:1985

Adaptor Size Major Diameter (mm) Threads per Inch Pitch
1/8″ BSP 9.73 28 0.91
1/4″ BSP 13.16 19 1.34
3/8″ BSP 16.66 19 1.34
1/2″ BSP 20.96 14 1.81
3/4″ BSP 26.44 14 1.81
1″ BSP 33.25 11 2.31
1 1/4″ BSP 41.91 11 2.31
1 1/2″ BSP 47.80 11 2.31
2″ BSP 59.61 11 2.31
2 1/2″ BSP 75.18 11 2.31
3″ BSP 87.88 11 2.31
4″ BSP 113.03 11 2.31
