Fisher Baumann 24000F Universal Globe Valve is part of the sliding stem valve range that is designed to control a wide range of process liquids, gases and vapors.
The Baumann 24000F is unique thanks to it’s ASME and EN line flange connections and it’s compact design providing connection integrity amd making the valve simpler and lighter to install. Â
The 24000F universal globe valve is a modulating valve suitable for process line pressures up to 99 barg (1440 psig) and operating temperatures to 537°C (1000ºF).
Fisher Baumann 24000F Universal Globe Valve
Product Features
- Compact and light weight design reduces installed piping costs
- Universal valve body construction; 1/2″ mates with ASME CL300 & 600FF (Flat Face) and PN10-40 line flanges; 3/4″ and 1″ mate with ASME CL150, 300, & 600FF and PN10-40 line flanges (see Table 10, Page 6)
- Multiple trim capacity reductions available to meet changing process requirements with Cv ratings as low as 0.00013
- Optional extended bonnet for applications ranging from -320°F to 1000°F (-195°C to 537°C)
- Optional ENVIRO-SEALâ„¢ packing system to meet critical emission control requirements
- Epoxy powder coated actuator with stainless steel fasteners for corrosion resistance
- Multi-spring, field reversible actuator with reduced deadband, permits direct operation from remote signal devices
- Entire actuator and yoke can be removed from the valve assembly while maintaining packing integrity
- FIELDVUEâ„¢ Digital Valve Controller available for remote calibration and diagnostics in facilities utilizing the PlantWebâ„¢ architecture
FISHER BAUMANNÂ 24000F UNIVERSAL GLOBE VALVE
PRODUCT Specification
| Sizes | NPS 1/2, 3/4, 1 |
| Connections | Mates between CL150, 300, 600RF, or PN10-40 |
| Body Material | 316L SS, N10276, N08020, or N04400 Nickel Alloys |
| Valve Body Rating | CL600 |
| Trim Material | 316 SS with optional PTFE insert |
| Trim Characteristic | Equal % or Linear |
| Seat Leakage | ANSI/FCI 70-2 Class IV or VI |
| Cv Ratings | 0.0005 to 6.5 |
| Bonnet Type | Standard threaded and extension |
| Packing Material | PTFE V-ring, PTFE ENVIRO-SEALâ„¢, or Graphite |
| Temperature Range | -195ºC to 537ºC (-230ºF to 1000ºF) |

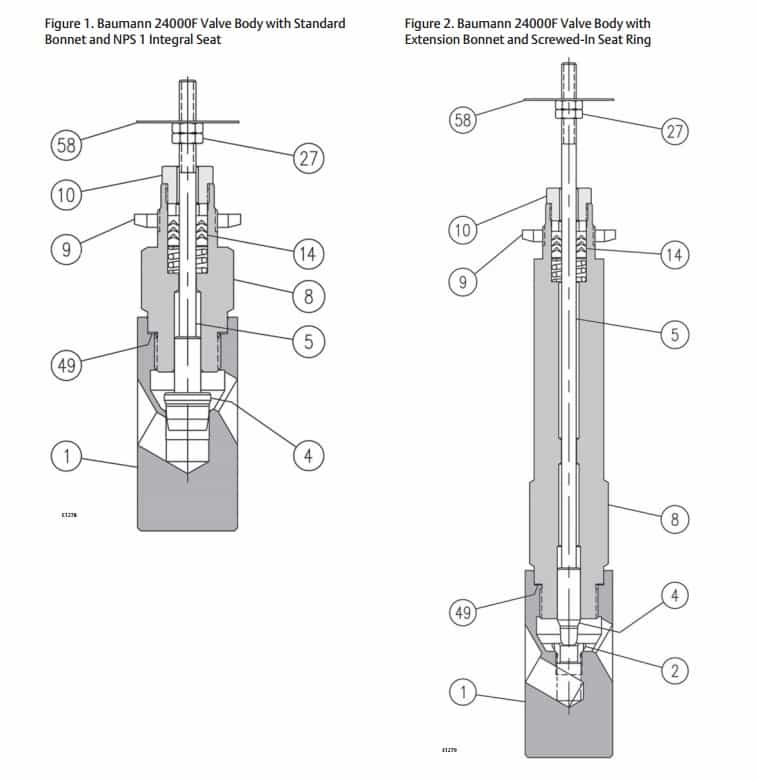

Fisher Baumann 24000F Universal Globe Valve – Valve Body
FISHERÂ BAUMANN 24000F Universal globe VALVE
Materials of construction
| Key No | Description | Material | ||||
| S31603 Stainless Steel | N10276 Nickel Alloy(1) | N08020 Nickel Alloy(1) | N04400 Nickel Alloy(1) | |||
| 1 | Valve Body | ASME SA479 S31600/ S31603 Dual Certified | ASME SB574 N10276 | ASTM B473 N08020 | ASME SB164 N04400 | |
| 2 | Seat Ring (standard) (For Low Flow Trim, see tables 2 and 3 on data sheet) | ASME SA479 S31600/ S31603 Dual Certified | ASME SB574 N10276 | ASTM B473 N08020 | ASME SB164 N04400 | |
| 4 | Plug (Metal Seat) Cv < 2.5 | ASME SA479 S21800 (standard) / ASTM A582 S41600 Condition T (optional) | ASME SB574 N10276 | ASTM B473 N08020 | ASME SB164 N04400 | |
| ASME SB164 N04400 | ||||||
| Plug (Metal Seat) Cv > 4.0 | ASTM A276 S31600/ S31603(standard) / ASTM A582 S41600 Condition T (optional) | ASME SB164 N04400 | ||||
| ASME SB164 N04400 | ||||||
| Plug (Soft Seat) | ASTM A276 S31600/ S31603 with PTFE (Polytetrafluoroethylene) insert | ASME SB574 N10276/PTFE | ASTM B473 N08020/PTFE | ASME SB164 N04400/ PTFE | ||
| 5 | Stem | ASTM A276 S31600 | ASME SB574 N10276 | ASTM B473 N08020 | ASME SB164 N04400 | |
| 8 | Bonnet | ASME SA479 S31600/ S31603 Dual Certified | ASME SB574 N10276 | ASTM B473 N08020 | ASME SB164 N04400 | |
| 9 | Drive Nut (Yoke) | S30400 | ||||
| 10 | Packing Follower | ASTM A276 S31600/ S31603 Dual Certified | ASME SB574 N10276 | ASTM B473 N08020 | ASME SB164 N04400 | |
| 14 | V- Ring Packing (standard) | (Refer to page 4 of data sheet) | ||||
| Packing (optional) | (Refer to page 4 of data sheet) | |||||
| 27 | Lock nut | Stainless Steel (18-8 Stainless Steel) | ||||
| 49 | Body Gasket | Graphite Grade GHR with S31600 Insert | ||||
| 58 | Travel Indicator | ASME SA240 S30400 | ||||
