Appleton PC is part of the Zone 1 Zone 2 (21/22) hazardous area floodlights ATEX lighting range that are specifically designed for large area lighting in industrial outdoor and indoor hazardous areas.

The Appleton PC offers flameproof lighting in a variety of lamp types, wattages and mounting options. The ATEX certified PC floodlights are ideally suited for use in Zones 1, 2, 21 and 22 hazardous areas in the oil and gas industry in applications such as refineries, pipelines, warehouses, offshore platforms and drilling rigs.

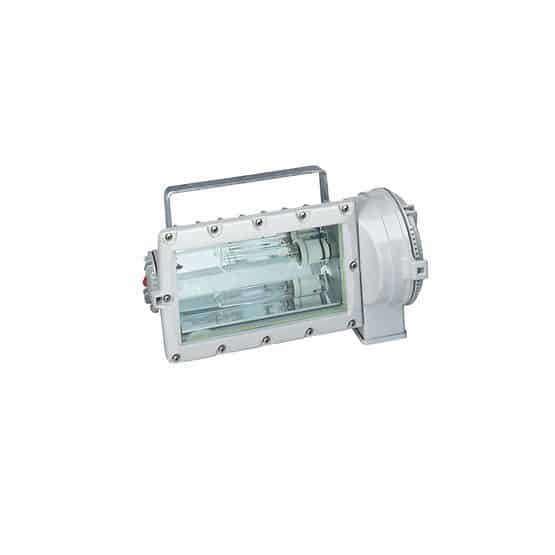

Hazardous Area Floodlights – Zone 1 Zone 2 (21/22) ATEX Floodlight – Appleton PC

Features & Benefits

Gray epoxy painted light marine grade aluminum housing and door
Fast and easy lamp replacement via threaded cover on the side of the fixture. The cover is fitted with a short safety chain
Lampholder can be easily field-adjustable for either a narrow or wide beam
Fixtures operate safely in high ambient temperatures up to +55 °C (+131°F) and in low ambient temperature up to -40 °C (-40 ºF)
Electrical components (ballast, ignitor and capacitor) are thermally separated from the lighting compartment with a bulkhead, providing extended life
Easy and efficient wiring due to separate Ex e terminal box with wiring onto 2 captive terminals 2 x 6 mm2 (2 x 0.009 in²); 2 internal earth terminals capacity 6 mm2 (0.009 in2) and 1 external earth terminal capacity 4 mm2 (0.006 in²)
2 x 20 mm (2 x 0.79 in) clearance holes throughwire cable entries supplied with:
– One Ex e unarmored cable gland — sealing diameter 6.5 mm to 14.5 mm (0.2 in to 0.57 in)
– One blanking plug
– Two M20 locknuts
For use with either tubular or ellipsoidal shape lamps. See ordering information for details

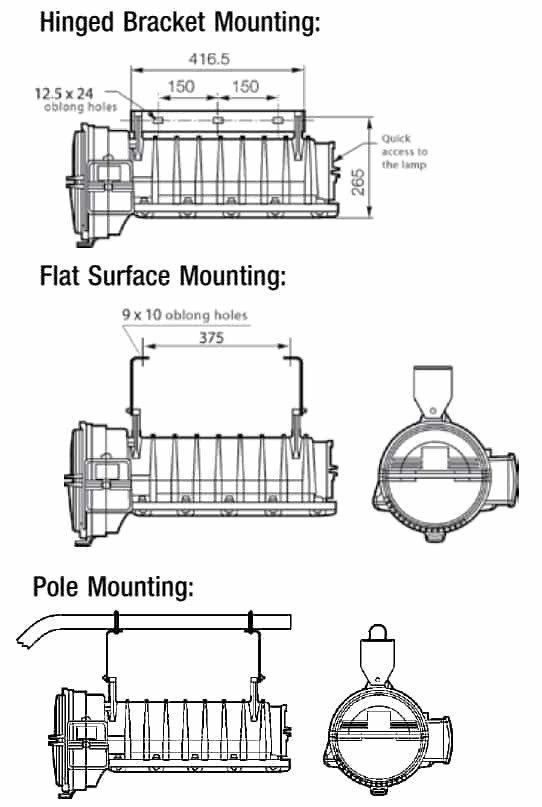

Choice of mounting with galvanized hinged bracket fixed mounting or tube/pole mounting with galvanized brackets
Thermoshock and impact-resistant glass factory sealed into the cover frame
Luminaire operates in any position
Reversible hinge allows for fixture access from either side
E40 or H3 lampholders for the 2 x 70 W Vac/Vdc halogen version
Internal symmetric reflector

Flameproof Floodlights – Zone 1 Zone 2 (21/22) ATEX Floodlight – Appleton PC

Hazardous Area Floodlights – Zone 1 Zone 2 (21/22) ATEX Floodlight

Appleton PC

Technical Data

Lamp Wattages	Lampholder	Voltage (+/-10%)	Lamp Type Ellipsoidal	Lamp Type Tubular	Weight (kg)	Volume (dm3)	Appleton Catalog Number
High Pressure Sodium
150 W	E40	230/240 V 50 Hz	X	X	29.0	104.4	PCAL15XJB
250 W	E40	230/240 V 50 Hz	X	X	30.0	104.4	PCAL25XJB
400 W	E40	230/240 V 50 Hz	–	X	32.0	104.4	PCAL40XJB
600 W	E 40	230/240 V 50 Hz	–	X	35.0	104.4	PCAL60XJB
Mercury Vapor
250 W	E40	230/240 V 50 Hz	X	X	30.0	104.4	PCAM25XJB
400 W	E40	230/240 V 50 Hz	–	X	30.5	104.4	PCAM40XJB
Metal Halide
250 W	E40	230/240 V 50 Hz	X	X	30.0	104.4	PCAH25XJB
400 W	E40	230/240 V 50 Hz	–	X	32.0	104.4	PCAH40XJB
Halogen
500/1000 W	E40		–	X	27.0	104.4	PCAZ50B

Note : Floodlights supplied with hinged mounting bracket, 1 plug, 1 M20 cable gland (dia. 6.5 to 14.5 mm). Lamps are not included.

Flameproof Floodlights – Zone 1 Zone 2 (21/22) ATEX Floodlight

Appleton PC

Temperature Rating Chart

Lamp Wattage	Gas			Dust
	Temperature Rating According to Ta			Surface Temperature
	+40°C	+50°C	+55°C	Surface Temperature
2 x 70 W – H3	T4	T4	T4	130°C
150 W Sodium	T4	T3	T3	145°C
250 W Sodium	T3	T3	T3	195°C
250 W Metal Halide	T3	T3	T3	197°C
250 W Mercury Vapor	T3	T3	T3	194°C
400 W Sodium	T3	T3	T3	189°C
400 W Metal Halide	T3	T3	T3	193°C
400 W Mercury Vapor	T3	T3	T3	195°C
600 W Sodium	T2	T2	T2	257°C
500 W Halogen	T2	T2	T2	267°C
1000 W Halogen	T1	T1	T1	378°C
