Marechal DN1 Plugs & Sockets 30A 500V Decontactors

Marechal DN1 Decontactors

Marechal DN1 Decontactors

plugs & sockets 30A

marechal dN1

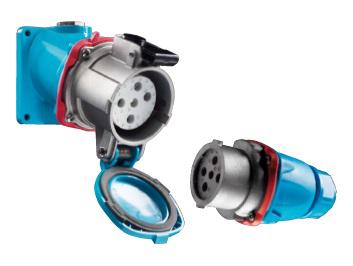

Marechal DN1 plugs and sockets are suitable for use in heavy duty environments and have a current rating of 30A and a maximum voltage of 500V.

Marechal DN1 plugs and sockets have a metal-bodied plug and socket-outlet with integral switching device AC-22, silver-nickel butt contacts with metallic braid that are compliant with international standards.

Marechal DN1 Plugs

Technical Specification

Rated Current (with wiring according to standard) 30A
Maximum Voltage 500V
Ingress Protection Rating – Lid Closed IP55
Ingress Protection Rating – Connected Plug IP54
Impact Protection Rating (metal casing) IK09
Ambient Temperature -40ºC to +60ºC
Flexible Wiring (Min-Max) 2.5 mm² – 6 mm²
Stranded Wiring (Min-Max) 2.5 mm² – 10 mm²
Other Wiring On Request
Keying Positions 16

Load Break Capability Of Decontactor

  • Comply with IEC EN 60309-1 and IEC EN 60309-4 standards – 30 A / 500 V
  • Load-break capability according to IEC EN 60947-3 / AC-22A – 30 A / 400 V or 16 A / 500 V

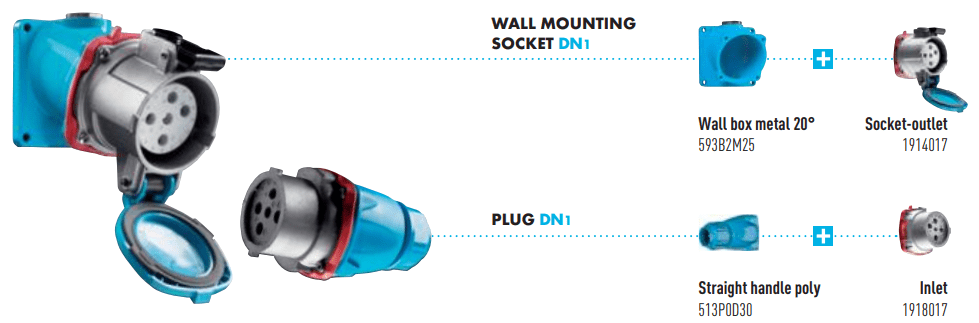

Marechal DN1 Decontactors | Typical Configuration

Marechal DN1 Decontactors | Typical Configuration

A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal DN range of plugs and sockets are suitable for rated currents from 20A up to 90A and maximum voltages of 500V.

Marechal DN1 – Socket Outlets & Inlets

Voltage 50Hz Polarity Marechal Socket Outlet (Female) DN1 30A Marechal Inlet (Male) DN1 30A
20V – 24V 2P 191408A 191808A
220v – 250V 1P+N+E 1914015 1918015
380V – 440V 3P+E 1914013 1918013
220V – 250V / 380V – 440V* 3P+N+E 1914017 1918017
480V – 500V 3P+E 1914093 1918093
480V – 500V 3P+N+E 1914097 1918097

*Dual-voltage socket outlet
