Rotronic CF1 CO2 Gas Measurement Transmitter (+Humidity & Temperature)

Rotronic CF1 CO2 measurement transmitter + humidity and temperature

Rotronic CF1 CO2 measurement transmitter + humidity and temperature

Rotronic CF1 CO2 gas measurement transmitter is a carbon dioxide measurement instrument with integrated humidity and temperature measurement.

The Rotronic CF1 features the proven Hygromer IN1 sensor and offers un-rivalled performance and accuracy with an elegant design that fits in many industries and applications.

Altering the scaling is simple with the Rotronic SW21/HW4 software and the measurement transducer can be adjusted and calibrated in the humidity and CO2 ranges.

Rotronic CF1 CO2 Gas Measurement Transmitter (+Humidity & Temperature) Product Features

  • Measures CO2, relative humidity, and temperature
  • Hygromer® IN-1 humidity sensor
  • Adjustable at 35 %RH or 80 %RH
  • Scalable analog voltage or current outputs
  • Single-relay output
  • Small size
  • Compatible with HW4 software
  • Three programmable LEDs

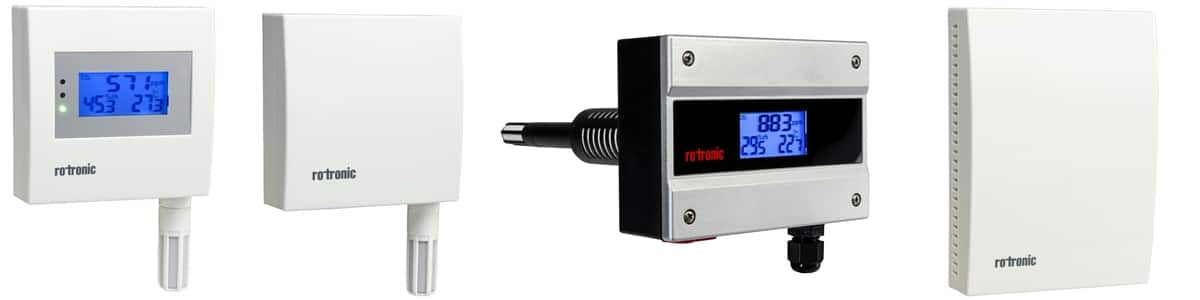

Rotronic CF1 CO2 gas measurement transmitter

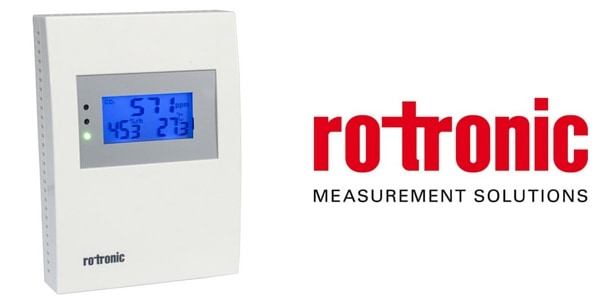

Rotronic CF1 CO2 gas measurement transmitter



Rotronic CF1 CO2 Gas Measurement Transmitter – Technical Specifications

Parameters Humidity/temperature and CO2
Dimensions Type R: 131 x 86 x 32 )H,W,D) mm Type S: 120 x 86 x 32 )H,W,D) mm
Weight Type R: 115g, Type S: 135g
Range of application Electronics: 0 .. 50 °C Measuring range probe dependent 0 .. 100 %RH, non-condensing
Accuracy At 23 ± 5°c <3 % RH (10..90 %RH) / ± 0.3, ± 1 K type S with display
0 .. 2000 ppm: ± 40 ppm ± 3 % of measured value
0 .. 5000 ppm: ± 10 % of measured value
Measurement principle  Infrared (NDIR)
Measurement ranges 0..2000 ppm or 0..5000 ppm
Adjustment points 0, 400 ppm and 35, 80 %RH
Pressure dependency  +1.6 % reading per kPa
Power supply/power consumption 12..28 VAC / 15..40 VDC
86.5 mA
Long-term stability < 1.5 %RH per year
Humidity sensor ROTRONIC HYGROMER® IN-1
Standard temperature scale 0…50 °C or 0…100 °F
Temperature sensor Thermistor

CO2 GAS MEASUREMENT & DETECTION INFORMATION

Measurement principle Infrared (NDIR)
Measurement range 0..2000 ppm or 0..5000 ppm
Precision at 23 °C ± 5 K 0 .. 2000 ppm 0 .. 5000 ppm ± 40 ppm ± 3 % of measured value ± 10 % of measured value
Adjustment points 400 ppm
Response time <3 min diffusion time
Pressure dependence + 1.6 % of read-off per kPa

ROTRONIC – CARBON DIOXIDE GAS MEASUREMENT FOR VENTILATION MONITORING

Rotronic devices including transmitters, data loggers and hand held instruments are used for regulating ventilation in living areas, offices, classrooms, cinemas, hospitals and also for measuring CO2 pollution in garages, tunnels and logistics facilities. Rotronic carbon dioxide gas measurement instruments monitor indoor air quality (IAQ) safeguarding the health, productivity and comfort of occupants.
