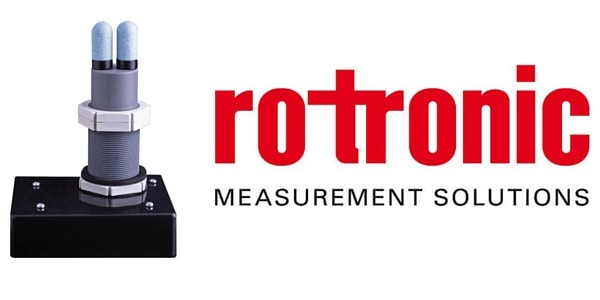

Rotronic CF8-D/W-IN CO2 Gas Measurement Transmitter

Rotronic CF8-D/W-IN CO2 Gas Measurement Transmitter

Rotronic CF8-D/W-IN CO2 Gas Measurement Transmitter

Rotronic CF8-D/W-IN CO2 carbon dioxide measurement instrument is suitable for measurements in incubators or climate chambers.

Rotronic CF8-D/W-IN Product Features

  • Model: IN (Incubator)
  • Measurement range CO2: 0…3 %vol (0…30,000 ppm)
  • Accuracy CO2: ±200 ppm
  • Output 1 (0…3 %vol CO2): 2…10 VDC or 4…20 mA
  • Output 2 (0…2 %vol CO2): 0…5 VDC or 0…10 mA
  • Range of application: 0…50 °C (30…120 °F) / 0…95 %RH
  • Maintenance: is not necessary for indoor applications. Industrial applications may require annual calibration.
  • Lifetime: >15 years

Rotronic CF8-D/W-IN CO2 Gas Measurement Transmitter – Technical Specifications

Dimensions 142 x 84 x 46 mm – Ø 40 x 102 mm
Power Supply / Power Consumption 16…29 VDC/AC
IP Protection Rating IP54

Rotronic CF8-D/W-IN CO2 Measurement Instrument Meter Guidelines

350 – 450 ppm 400 – 1,200 ppm >1,000 ppm 5,000 ppm (0.5 %vol) 38,000 ppm (3.8 %vol) >100,000 ppm (10%vol)
Fresh air outdoors Room air Fatigue and loss of concentration become apparent. Maximum permissible value at the workplace during an 8-hour workday Breathing air (direct exhalation) Nausea, vomiting, loss of consciousness and death



ROTRONIC – CARBON DIOXIDE GAS MEASUREMENT FOR VENTILATION MONITORING

Rotronic devices including transmitters, data loggers and hand held instruments are used for regulating ventilation in living areas, offices, classrooms, cinemas, hospitals and also for measuring CO2 pollution in garages, tunnels and logistics facilities. Rotronic carbon dioxide gas measurement instruments monitor indoor air quality (IAQ) safeguarding the health, productivity and comfort of occupants.
