Rotronic CO2 Gas Measurement Display – Indoor Air Quality (IAQ) Monitor

Rotronic CO2 gas measurement display - Indoor air quality

Rotronic CO2 gas measurement display – Indoor air quality

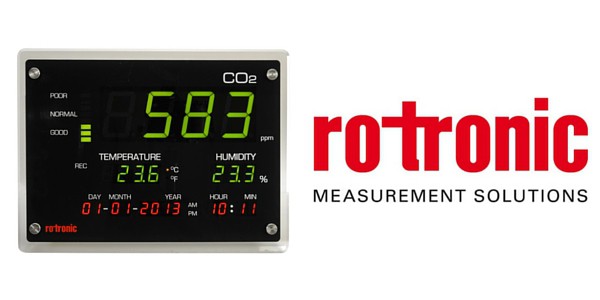

Rotronic CO2 gas measurement display is a carbon dioxide measurement instrument suitable for wall mounting or bench top monitoring providing simultaneous monitoring and recording of CO2 levels.

The Rotronic CO2 gas measurement display is fitted with the Rotronic Hygromer IN-1 humidity sensor and can be configured directly with buttons and stored data can be exported with a USB stick for analysis.

Typical applications of indoor air quality monitoring include classrooms, meeting rooms, open-plan offices and shopping centers.

Rotronic CO2 Gas Measurement Display – Indoor Air Quality (IAQ) Monitor – Product Benefits

Features

  • Display for mounting on walls or bench-top use
  • Data recording function

Display

  • Large, easy-to-read display of measured values
  • CO2 indicator for quick recognition of air quality (GOOD/NORMAL/POOR)
  • REC LED to indicate data recording is in progress
  • Display of date and time

Use And Connections

  • Readily accessible buttons for easy use
  • USB access for data downloads
  • 12 VDC power supply

Humidity Sensor And Calibration

  • HYGROMER® IN-1 humidity sensor
  • NDIR sensor with automatic calibration
  • Calibration of CO2 at 0/400 ppm or any value between 0 and 990 ppm
  • Calibration of humidity possible at 35/80 %RH

Rotronic CO2 Gas Measurement Display – Technical Specifications

Type Wall or bench-top display
Parameters CO2, relative humidity and temperature
Range of application 0…50 °C / 0…95 %RH, non-condensing
Power supply AC adapter 12 VDC
Clock Real time clock
Alarm/indicator Adjustable for CO2 measurement
Current consumption 700 mA (max)
Warm-up time <1 min
Memory capacity 18,000 values with time stamp, automatic recording (%RH / °C / ppm)

CO2 GAS MEASUREMENT & DETECTION INFORMATION

Measurement principle Infrared (NDIR) with automatic calibration (ABC)
Measurement range 0…5000 ppm
Accuracy at 23 °C ±5 K ±30 ppm ±5 % of the measured value
Response time <3 min. diffusion time
Adjustment points 0, 400 ppm or any value between 0 and 990 ppm
Pressure dependence +1.6 % reading per kPa
Null drift <10 ppm/year
Maintenance No maintenance (standard indoor application)



ROTRONIC – CARBON DIOXIDE GAS MEASUREMENT FOR VENTILATION MONITORING

Rotronic devices including transmitters, data loggers and hand held instruments are used for regulating ventilation in living areas, offices, classrooms, cinemas, hospitals and also for measuring CO2 pollution in garages, tunnels and logistics facilities. Rotronic carbon dioxide gas measurement instruments monitor indoor air quality (IAQ) safeguarding the health, productivity and comfort of occupants.
