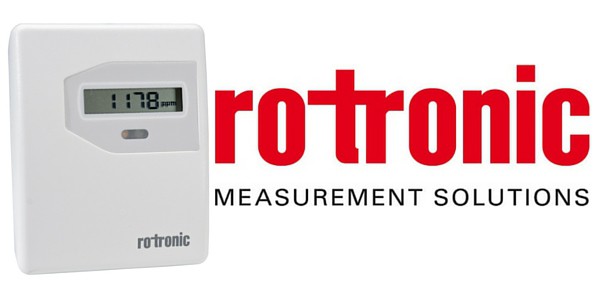

Rotronic CF3-W-EU / -DISP CO2 Gas Measurement Transmitter

Rotronic CF3-W-EU / -DISP CO2 Gas Measurement Transmitter

Rotronic CF3-W-EU / -DISP CO2 Gas Measurement Transmitter

Rotronic CF3-W-EU / -DISP CO2 is a carbon dioxide measurement instrument for installation in the enthronement and fits directly onto standard EU surface-mounted boxes.

Typical applications for the Rotronic CF3-E-WU /-DISP include ventilation control in residential properties, offices, classrooms, cinemas and hospitals.

Rotronic cf3-W-EU /-disp co2 product benefits

  • Measurement range: 0…2,000 ppm
  • Measurement technique: infrared (NDIR) with automatic calibration
  • Accuracy: ±30 ppm
  • Power supply: 16…29 VDC/AC
  • Output 1 (0…2,000 ppm): 0…10 VDC
  • Output 2 (0…2,000 ppm): 4…20 mA (no output 2 in CF3-W-EU(US)-Disp-FLI)
  • Range of application: 0…50 °C (30…120 °F) / 0…95 %RH
  • Maintenance: not necessary
  • Lifetime: >15 years

Rotronic CF3-W-EU /-DISP CO2 Gas Measurement Transmitter Technical Specifications

Dimensions 100 x 80 x 25 mm
Display Type In option, LCD, 1-line
Enclosure Material ABS
IP Protection Rating IP30

Rotronic CF3-W-EU /-DISP CO2 Measurement Instrument Meter Guidelines

350 – 450 ppm 400 – 1,200 ppm >1,000 ppm 5,000 ppm (0.5 %vol) 38,000 ppm (3.8 %vol) >100,000 ppm (10%vol)
Fresh air outdoors Room air Fatigue and loss of concentration become apparent. Maximum permissible value at the workplace during an 8-hour workday Breathing air (direct exhalation) Nausea, vomiting, loss of consciousness and death



ROTRONIC – CARBON DIOXIDE GAS MEASUREMENT FOR VENTILATION MONITORING

Rotronic devices including transmitters, data loggers and hand held instruments are used for regulating ventilation in living areas, offices, classrooms, cinemas, hospitals and also for measuring CO2 pollution in garages, tunnels and logistics facilities. Rotronic carbon dioxide gas measurement instruments monitor indoor air quality (IAQ) safeguarding the health, productivity and comfort of occupants.
