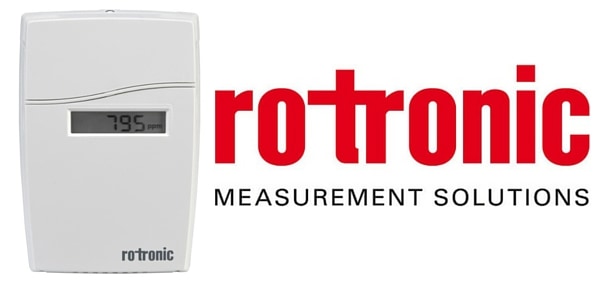

Rotronic CF5-W / -DISP CO2 Gas Measurement Transmitter
Typical applications of the Rotronic CF5-W / -DISP CO2 include ventilation control in residential rooms, offices, classrooms and cinemas.
Rotronic CF5-W / -DISP Gas Measurement Transmitter – Key Features
- Measurement range CO2: 0…2,000 ppm / temperature: 0…50 °C / 30…120 °F
- Measurement technique: infrared (NDIR) with automatic calibration
- Accuracy: ±30 ppm
- Power supply: 16…29 VDC/AC
- Output 1 (0…2,000 ppm): 0/2…10 VDC or 0/4…20 mA
- Output 2 (0…50 °C): 0/2…10 VDC or 0/4…20 mA
- Range of application: 0…50 °C (30…120 °F) / 0…95 %RH
- Maintenance: not necessary
- Lifetime: >15 years
Rotronic CF5-W / -DISP Technical Specifications
|Dimensions||120 x 82 x 30 mm|
|Display Type||In option, LCD, 1-line|
|IP Protection Rating||IP30|
Rotronic CF5-W / -DISP CO2 Measurement Instrument Meter Guidelines
|350 – 450 ppm||400 – 1,200 ppm||>1,000 ppm||5,000 ppm (0.5 %vol)||38,000 ppm (3.8 %vol)||>100,000 ppm (10%vol)|
|Fresh air outdoors||Room air||Fatigue and loss of concentration become apparent.||Maximum permissible value at the workplace during an 8-hour workday||Breathing air (direct exhalation)||Nausea, vomiting, loss of consciousness and death|
ROTRONIC – CARBON DIOXIDE GAS MEASUREMENT FOR VENTILATION MONITORING
Rotronic devices including transmitters, data loggers and hand held instruments are used for regulating ventilation in living areas, offices, classrooms, cinemas, hospitals and also for measuring CO2 pollution in garages, tunnels and logistics facilities. Rotronic carbon dioxide gas measurement instruments monitor indoor air quality (IAQ) safeguarding the health, productivity and comfort of occupants.
