ZONE 1, ZONE 21 Wellglass LIGHTING
EXPLOSION PROTECTION EX d
Wellglass Lighting for Zone 1, Zone 21, Zone 2, Zone 22 Hazardous Area Lighting Applications
Thorne & Derrick, the Specialist Distributors of Hazardous Area Lighting can provide competitive prices and supply from stock the complete range of Technor products including electrical enclosures and junction boxes.

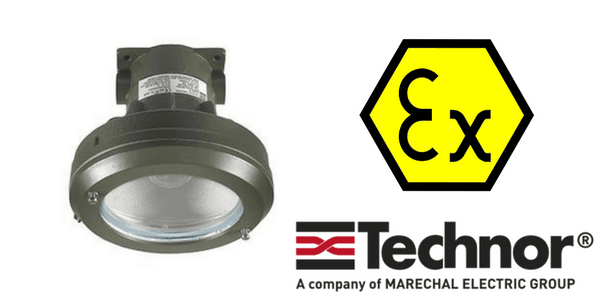

Technor’s EVCC-PR is a wellglass lighting fixture suitable for hazardous area lighting and offers offers Ex-e IIC mode of protection and are suitable for on-shore and off-shore tank inspection lighting applications.
Technor EVCC-PR wellglass lighting is classified to international hazardous area classifications with ATEX, IECEx and TRCU certification, with ingress protection IP66 and an operational ambient temperature range of -52°C to +60°C.
Technor EVCC-PR Wellglass Lighting – Technical Features
| Material | Aluminium with low content of copper |
| IP rating | IP66 |
| Ambient temperature range | -52°C to +60°C |
| Approvals |
INERIS 01ATEX0019X (standard)
IECEx INE 15.0031X
TR CU (marking upon request, ordering code to be required)
|
| Gaskets | O-ring made of Nitrile Rubber (NBR) |
| Surface treatment | Green colour polyurethane painting cycle RAL6003 (other colour available upon request) |
| Entries | N° 2 entries M25x1,5 (plugs and cable glands excluded) |
| Hardware and screws | AISI304 Stainless steel external hardware and screws |
| Lamps | Included |
| Rated Operation Voltage (UE) |
230V (standard)
220V, 240V (marking upon request)
|
| Frequency | 50 Hz / 60 Hz |
| Accessories Available Upon Request |
Fixing flange for porthole
|
Technor EVCC-PR Lighting
| Technor Part Number | Code | Lamp (W) | Weight (Kg) | Temperature Class | Dimensions (mm) | |
| A | B | |||||
| EVCC-PR2/HA 42 | A044621E2171D | 42 | 3.10 | T4 | 153 | 165 |
| EVCC-PR3/HA 53 | A044631F3171D | 53 | 4.40 | T4 | 170 | 195 |

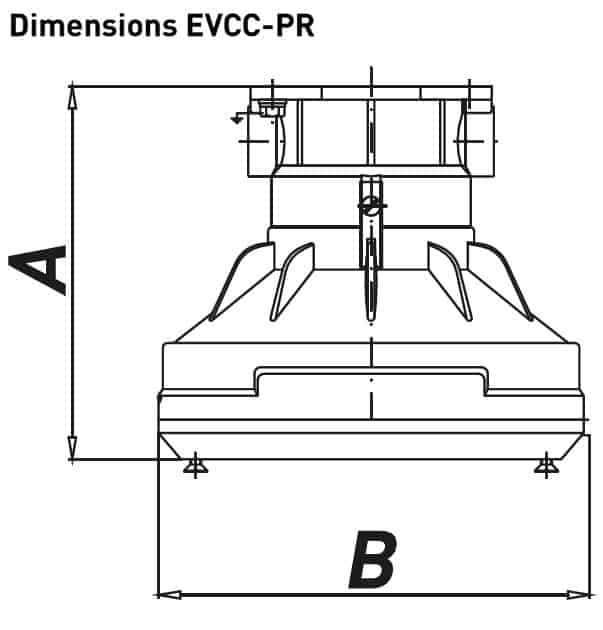

Explosion Proof Hazardous Area Technor EVCC-PR Wellglass Lighting – Dimensions
HAZARDOUS AREA CERTIFICATION & MARKING FOR Lighting
ATEX
- II 2 GD
- Ex d IIC T3 Gb
- Ex tb IIIC T200°C Db IP66
under IEC Ex directive, junction boxes and enclosures are suitable for IIC group of gases/dusts onlyÂ
Approvals
