Ex eb Lighting – Increased Safety Hazardous Area Technor LED RMS 560 Lighting

ZONE 1, ZONE 21 Increased SAFETY LIGHTING

EXPLOSION PROTECTION EX Eb

Lighting for Zone 1, Zone 21, Zone 2, Zone 22 Hazardous Area Lighting Applications

Thorne & Derrick, the Specialist Distributors of Hazardous Area Lighting can provide competitive prices and supply from stock the complete range of Technor products including electrical enclosures and junction boxes.

Technor’s LED RMS 560 is an LED Ex eb lighting fixture suitable for hazardous area lighting and offers offers Ex-e IIC mode of protection and has a body and glass frame are made of stainless steel AISI304 and manufactured from a single sheet of steel with no invasive mounting holes, to minimise the risk of water ingress through the housing.

Designed to allow the operator to work with free hands and alone during start-up or maintenance without needing to support any of the Ex eb lighting fixture.

Technor EMS 560 Ex eb LED lighting fixtures are 95% recyclable only components and insulation of single core wires need some more care.

Technor LED RMS 560 lighting is classified to international hazardous area classifications with ATEX certification, with ingress protection IP65 and an operational ambient temperature range of -20°C to +60°C.

Technor LED RMS 560 Lighting – Technical Features

Material	AISI304 stainless steel, 0,8mm thickness and transparent part in tempered glass (AISI 316 L version available upon request)
IP rating	IP65
Ambient temperature range	-20°C to +60°C
Approvals	TÜV CY 17 ATEX 0205847 X
Gaskets	Special cross-section tightness gasket, silicon rubber made (closed cell), located in housing channel between body and window frame.
Entries	Body complete of two 21mm Ø through holes (on one side) for cable entry, one complete of metallic plug with M20 locknut and gasket and the other one with temporary plastic plug to prevent dust ingress.
Hardware and screws	AISI304 Stainless steel external hardware and screws
Lamps	Extended long life new LED technology with CRI > 85
Ballast	Electronic
Rated Operation Voltage (UE)	220-240Vac (normal and emergency service) 198-278Vdc (normal service)
Frequency	50 – 60 Hz
Power Factor	>0.95
Accessories available upon request	Pole mounting kit / Ceiling mounting kit / Suspension mounting kit / Wall mounting kit 3°- 4° through holes opposite side

Technor LED RMS 560 Lighting – Normal Service

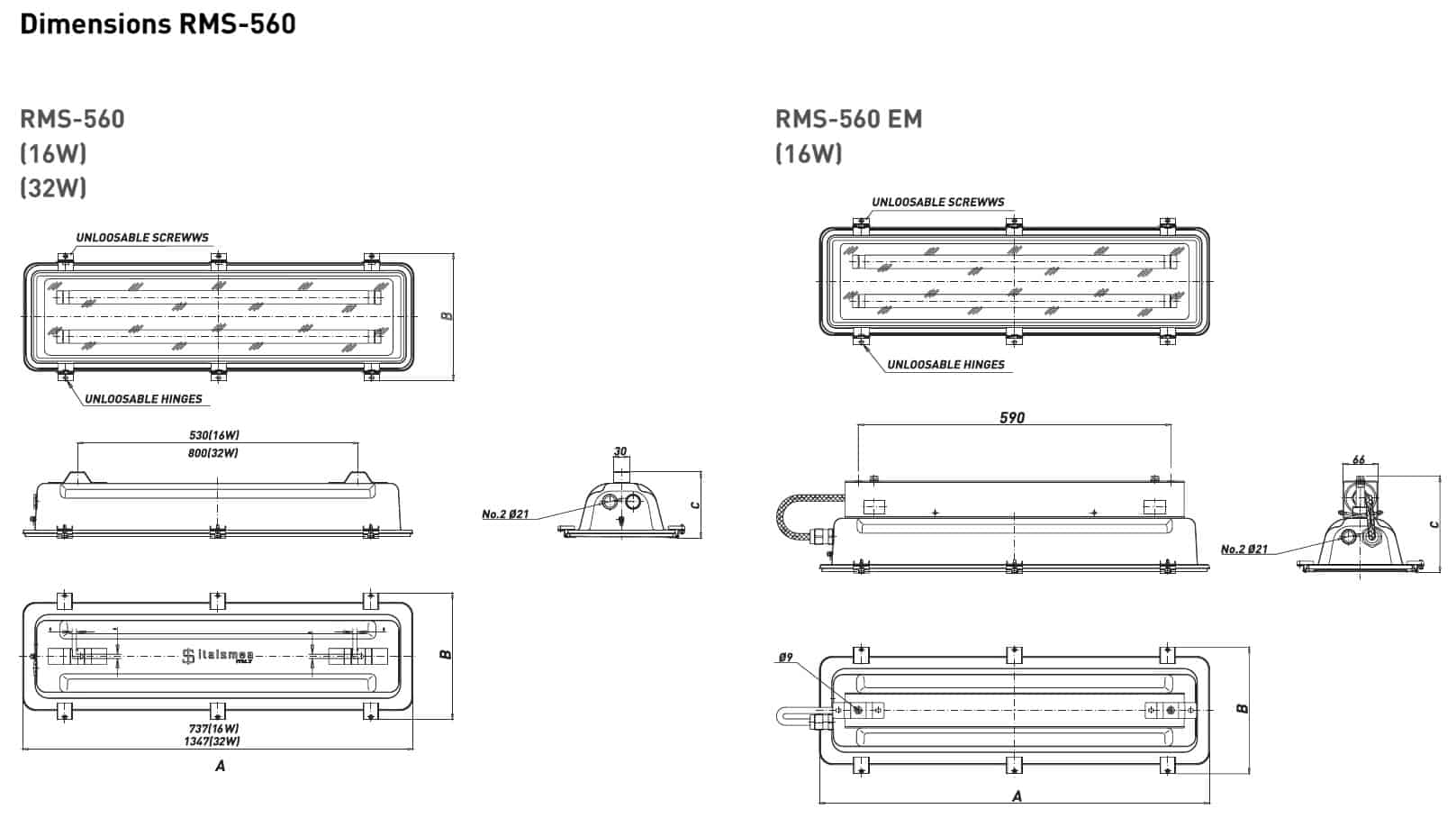

Technor Part Number	Code	Power (W)	Dimensions (mm)			Weight (kg)
			A	B	C
RMS-560 116	A020321160600	16	737	239	123	–
RMS-560 216	A020322160600	2X16	737	239	123	–
RMS-560 132	A020321320600	32	1347	239	123	–
RMS-560 232	A020322320600	2X32	1347	239	123	–
RMS-560 116/MS*	A020321160601	16	737	239	123	–
RMS-560 216/MS*	A020322160601	2X16	737	239	123	–
RMS-560 132/MS*	A020321320601	32	1347	239	123	–
RMS-560 232/MS*	A020322320601	2X32	1347	239	123	–

* With micro-switch

Technor LED RMS 560 Lighting – 90′ Emergency Service

Technor Part Number	Code	Power (W)	Dimensions (mm)			Weight (kg)
			A	B	C
RMS-560 116 LE-P-90	A020421161610*	16	737	239	183	–
RMS-560 216 LE-P-90	A020422161610*	2X16	737	239	183	–
RMS-560 132 LE-P-90	A020421321610**	32	1347	239	123	–
RMS-560 232 LE-P-90	A020422321610*	2X32	1347	239	123	–
RMS-560 116 LE-NP-90	A020421162610*	16	737	239	123	–
RMS-560 132 LE-NP-90	A020421322610**	32	737	239	123	–

* External battery unit protected by stainless steel cover
**180′ emergency version with external battery unit available upon request

HAZARDOUS AREA CERTIFICATION & MARKING FOR Lighting

II 2 GD

• Ex eb mb op is IIC T4 Gb (normal service)
• Ex eb db mb op is IIC T4 Gb (emergency service)
• Ex tb IIIC T135°C Db IP66

under IEC Ex directive, junction boxes and enclosures are suitable for IIC group of gases/dusts only

Approvals

TÜV CY 17 ATEX 0205847 X
