Wolf WL-50 LED Mini Worklite ATEX IECEx
Wolf WL-50
Floodlight
Gas: Hazardous Area Zone 1 & Zone 2
Dust: Hazardous Area Zone 21 & Zone 22
The ATEX & IECEx certified WL-50 & WL-50HT light weight mini Worklite™ from Wolf is a high output LED floodlight for use in harsh, remote and hazardous area lighting applications. They are easy to carry, rechargeable and at just over 9kgs, it weighs around half the weight of the WL-80 and WL-85 worklites, while providing the same outstanding level of light.
Building on the success of the market leading Wolf Worklites and Floodlites, the WL-50 shares the same strong, robust and proven powder coated die-cast construction as the Wolf LinkEx range.
Worklites are CE marked to the ATEX Directive for safe use in Zones 1 & 2 as well as Zones 21 & 22 potentially explosive gas, vapour, mist and dust atmospheres, where a T4 temperature class permits.
WL-50 Wolf ATEX Floodlight

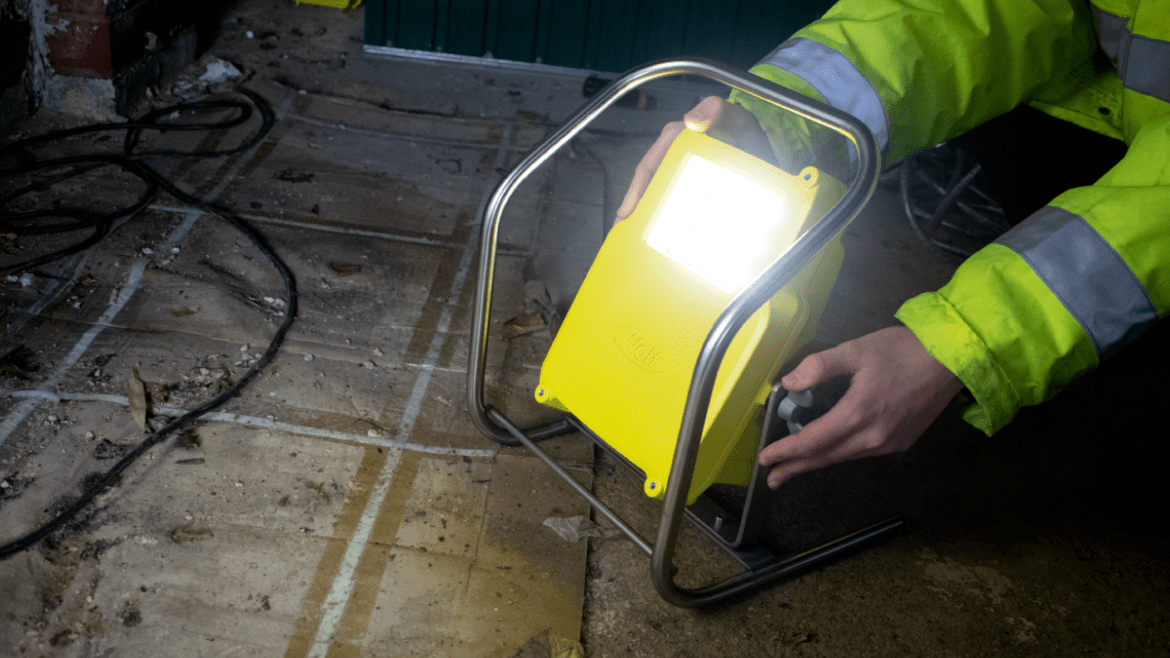

Wolf WL-50 & WL-50HT Worklite
Features
- ATEX & IECEx Certified
- Light weight – just over 9kgs
- Light output – The WL-50 & WL-50HT floodlights have an 18 LED lamp head which gives over 3,100 lumens output at source from a small, lightweight battery, which delivers a piercing spot beam and a flood of lower level fringe light. These LED floodlights are designed to give over 100,000 hours life.
- Light Duration – Battery duration is up to 5 hours on ‘high power’ and up to 10 hours on ‘low power’. In addition to dual light output levels, the control circuit manages the switch function, battery level indicator and the low battery cut-off, maintaining and protecting the battery from deep discharge damage.
- Impact Resistant Lens – The lens is impact resistant 6mm toughened glass. For shot blasting and painting applications, the lens can be protected by an ATEX certified disposable antistatic lens guard and in paint applications an ATEX certified antistatic protection cover (1 supplied) is available to protect the light.
- Durable Construction – The painted, powder coated aluminium construction is designed to withstand the rigours and corrosion of both harsh industrial and offshore applications. Mounted in a stainless steel stand, the battery light source and control circuit are within the enclosure giving IP66 and IP67 protection from ingress of dust and water. This stainless steel stand offers additional protection and allows you to easily direct the light to exactly where it’s needed. The lamp can also be used on tripods or attached to flat ferrous metal surfaces with magnet bracket kits for complete flexibility in getting the light to just where you want it.
➡ Should it ever be required, the battery, circuit and LED can be replaced by a suitably qualified technician.
WOLF ATEX WORKLITE FLOODLIGHTS
TECHNICAL INFORMATION
The following table explains the technical specification differences for the Wolf ATEX Worklite range of floodlight – should you require support or advice on selecting the correct hazardous area floodlight please do not hesitate to contact us.
| Product Reference | WL-50 | WL-50HT |
| Product Description | High Power Rechargeable Battery Worklite™ | |
| Hazardous Area Code | II 2 GD Ex e ib mb op is IIC T4 Gb Ex tb op is IIIC T135°C Db |
|
| Type of Protection | ‘e’ Increased Safety, ‘ib’ Intrinsic Safety, ‘op is’ optical intrinsic safety, ‘mb’ Encapsulation, tb Enclosure Protection | |
| Area of Classification (Gas) | Zones 1 and 2, Gas Groups IIA, IIB, IIC | |
| Temperature Classification (Gas) | T4 | |
| Area of Classification (Dust) | Zones 21 and 22, Dust Groups IIIA, IIIB, IIIC | |
| Max Surface Temperature (Dust) | T135°C | |
| Ambient Temperature | -20°C to +45°C | -20°C to +50°C |
| Certificate | CML 18ATEX3373X IECEX CML 18.0199X |
|
| Enclosure | Die Cast Aluminium | |
| Lens | Toughened Glass Lens | |
| Beam Type | Spot Beam with a Flood of Low Level Fringe Light | |
| Light Source | ||
| Type | High Power LED | |
| Power/Output | 18 x High Power LEDs / Up to 3100 lm at source | |
| Life | 100,000hrs+ (Fitted for Life) | |
| Power Source | ||
| Part Code | W-3200 | W-3300 |
| Battery Type | Rechargeable Battery, Sealed Gel Lead Acid | |
| Volts | 12V | |
| Capacity | 10Ah | 9Ah |
| Life | Up to 200 Recharge Cycles¹ | |
| Low Battery Indicator | Yes | |
| Light Duration – High/Low | Up to 10hrs / 5hrs | Up to 9hrs / 4.5hrs |
| Ingress Protection Rating | IP66 and IP67² to IEC60529 | |
| Weight (including battery) | 9.3kg | |
| Charger Input | 100 – 254 Vac | |
| Recharge Time | 8hrs | |
| ¹ Cycle life is dependent on ambient temperature. In a 20°C ambient the cycle will be about 200 full cycles, it will be fewer at higher temperature ambients
² Being certified to both IP66 and IP67, the Worklite™ is “dust tight” and protects against powerful water jets and immersion up to 1 metre |
||
