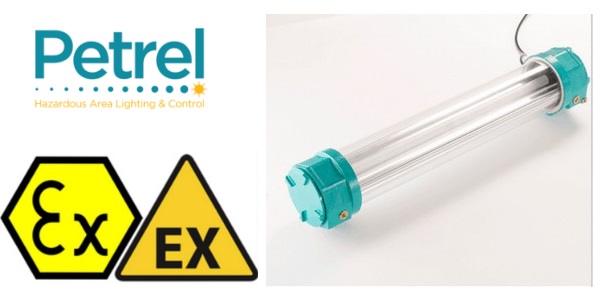

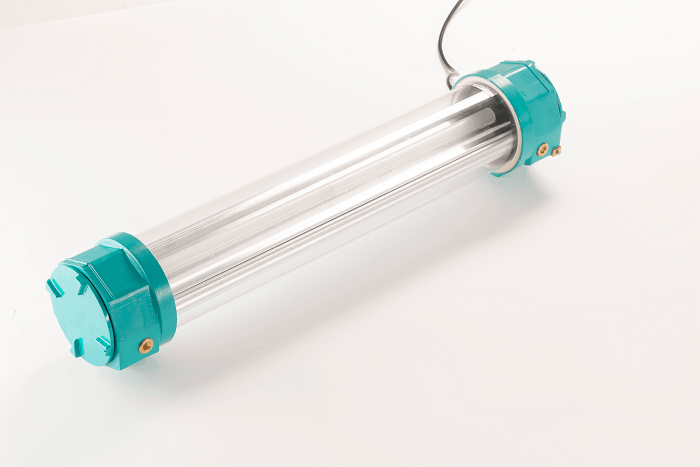

Zone 1 LED Luminaire ATEX – Ex d Linear Light Fittings – Petrel 7 Series
Zone 1 LED – Hazardous Area Lighting
ATEX Classification – Ex d II 2GD Ex db op is II* Gb T6 Protection IP 66
Petrel 7 Series are high output LED lighting suitable for Zone 1 hazardous area lighting applications. Available in both standard and emergency formats the Zone 1 ATEX light fittings have a range of sizes 1-5ft with a light output up to 10,000 lumens (subject to lamp choice).
7 Series LED light fitting is a ‘d’ &’tb’ explosion protected and hazardous area certified light fitting designed for maximum light output which is low maintenance and energy efficient with motion sensor options for controlling single and multiple fittings.
➡ See Zone 2 Hazardous Area Lighting for fluorescent, LED, floodlight and bulkhead type light fittings for potentially explosive atmospheres with ATEX certification.
➡ View full range of hazardous area lighting.
Zone 1 Hazardous Area Lighting For Potentially Explosive Atmospheres In Both Onshore & Offshore Locations
ZONE 1 LED
ATEX – Zone 1 LED
Hazardous area & atex approved
- Certification and Hazardous Area Approval Certification Code: II 2 GD Ex db op is II* Gb T6 Ex tb op is IIIC T85°C Db (II* – IIC Sizes 1, 2, 4, IIB size 5)
- Certification Number: CML14ATEX 1028X, IECEx CML140012X
- Certification Standard: EN 60079, IEC 60079-0,1,31
- Protection: IP 66
Zone 1 LED Luminaire ATEX
Benefits & Options
- Low maintenance high output LED light source
- Energy efficient control
- Robust long life Zone 1 LED light fitting
- 1’, 2’ & 4’ versions
- Motion sensor options
- Standard and emergency LED light
Hazardous Area Zone 1 Lighting Stockists & Suppliers Shipping Worldwide
- 230v 50Hz standard
- Marine grade aluminium body with high impact polycarbonate tube.
- Relamp access via threaded end cover and slide out tray.
ZONE 1 LED LUMINAIRE ATEX – TYPICAL APPLICATIONS
- Chemical Sites
- Refineries
- Docks & Jetties
- Offshore
- Marine
- Pharmaceutical
- Paint Spray Shops
- Grain Storage
- Paper Mills
- Waste, Water & Metal Treatment Plants
Zone 1
T&D distribute an extensive range of Zone 1 Hazardous Area Equipment including plugs/sockets, junction boxes/enclosures, isolators and control panels with ATEX certification for both Zone 1 and Zone 2 potentially explosive atmospheres.
| LED Luminaire Sizes Petrel 7 Series | Hazardous Area Classification | |||
| LED Standard Range | ||||
| Petrel Part Number | Light Fitting Description | Output | Fitting Size | |
| 7LED1700 | 15w Ex d Zone 1 Luminaire | 2000lm / 14.2W | 1 (448mm) | Zone 1 Ex d |
| 7LED2700 | 30w Ex d Zone 1 Luminaire | 4000lm / 28.4W | 2 (752mm) | Zone 1 Ex d |
| 7LED4700 | 60w Ex d Zone 1 Luminaire | 8000lm / 56.8W | 4 (1362mm) | Zone 1 Ex d |
| 7LED5700 | 75w Ex d Zone 1 Luminaire | 10000m, 71.0W | 5 (1662mm) | Zone 1 Ex d |
| 7LED41050 | – | 8400lm / 75.2W | 4 (1362mm) | Zone 1 Ex d |
| 7LED51050 | – | 10500lm / 94.0W | 5 (1662mm) | Zone 1 Ex d |
| LED Emergency Range | ||||
| 7LED1700/EM | 15w Ex d Zone 1 Luminaire | 2000lm / 14.2W | 1 (448mm) | Zone 1 Ex d |
| 7LED2700/EM | 30w Ex d Zone 1 Luminaire | 4000lm / 28.4W | 2 (752mm) | Zone 1 Ex d |
| 7LED4700/EM | 60w Ex d Zone 1 Luminaire | 8000lm / 56.8W | 4 (1362mm) | Zone 1 Ex d |
| 7LED5700/EM | 75w Ex d Zone 1 Luminaire | 10000lm / 71.0W | 5 (1662mm) | Zone 1 Ex d |
| 7LED41050E | – | 8400lm / 75.2W | 4 (1362mm) | Zone 1 Ex d |
| 7LED51050E | – | 10500lm / 94.0W | 5 (1662mm) | Zone 1 Ex d |
Zone 1 LED Luminaire ATEX – Petrel 7 Series
ZONE 1 LED Lighting ATEX
PETREL 7 SERIES – Technical Data
| Full Hazardous Area Certification Code | II 2 GD Ex d IIC T6 Gb, Ex tb IIIC T85ºC Db |
| Explosion Protection Type | Ex d (flameproof & Ex tb – dust) |
| Temperature Rating | T6 at Ta = 55ºC |
| Certification Standards | EN 60079-0,1,31, IEC 60079-0,1,31 |
| Certificates | CML14ATEX1028X |
| Suitable Zoned Areas | Zones 1, 2, 21 & 22 |
| Gas Group Suitability | Hazardous Area IIA, IIB, IIC * Size 5 IIB |
| Material | Marine grade aluminium body with high impact polycarbonate tube |
| Ingress Protection (IP Rating) | IP66 |
| Cable Entries | 4 x M20 – ISO (3 plugged) as standard. Other threads available |
| Electrical Connections | 3 wire and earth. Cable size 4mm² max Through wiring versions available |
| Light Source | Long life LED |
| Supply Voltage | 230V 50/60Hz |
| Installation // Mounting | 2 x M8 tapped holes |
| Relamp Access | Tray assembly is replaced via threaded entry |
| Weight |
Size 1’ 3Kg, size 2’ 5Kg, size 4’ 7Kg, size 5’ 8Kg |
