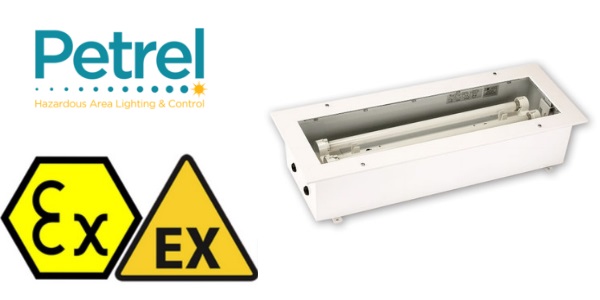

Zone 1 Fluorescent Recessed Hazardous Area Lighting ATEX Ex de – Petrel 9 Series

Zone 1 Fluorescent Recessed Hazardous Area Lighting ATEX Ex de - Petrel 9 Series

Zone 1 Fluorescent Recessed Hazardous Area Lighting ATEX Ex de – Petrel 9 Series

Zone 1 Fluorescent – Hazardous Area Lighting

ATEX Classification – Ex de II 2G 3D IIC T5 – T4 Protection IP 55

Petrel 9 Series are recessed high output fluorescent luminaires suitable for Zone 1 hazardous area lighting applications with restricted height.

Zone 1 fluorescent luminaires are manufactured from toughened glass and steel – available in standard and 3 hour emergency versions.

➡ See Zone 2 Hazardous Area Lighting for fluorescent, LED, floodlight and bulkhead type light fittings for potentially explosive atmospheres with ATEX certification – Zone 2 fluorescent light fittings in both single and twin version up to 58 watts are available.

➡ View full range of hazardous area lighting.

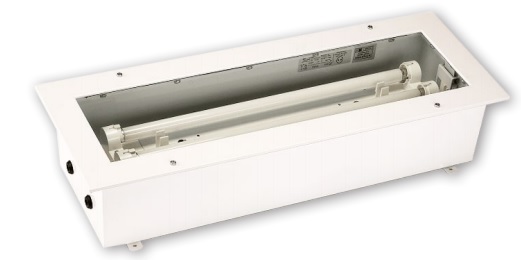

Zone 1 Fluorescent Recessed Hazardous Area Light Fitting

Zone 1 Fluorescent Recessed Hazardous Area Light Fitting

Hazardous Area Zone 1 Lighting - Zone 1 Fluorescent

Zone 1 Hazardous Area Lighting For Potentially Explosive Atmospheres In Both Onshore & Offshore Locations

ZONE 1 FLUORESCENT Recessed

ATEX

ATEX – Zone 1 Fluorescent Recessed Light Fitting

Hazardous Area & atex approved

  • Certification and Hazardous Area Approval Certification Code: Ex de II 2G 3D IIC T5 – T4
  • Certification Number: SIRA 00 ATEX 3106. IECEx SIR 09.0039
  • Certification Standard: EN 60079, EN 61241, IEC 60079, IEC 61241
  • Protection: IP 55

Zone 1 Fluorescent recessed

for hazardous area lighting

Benefits & Options

  • Fast installation due to infinitely variable mounting position
  • Flush fitting prevents dust build up
  • Toughened glass and steel construction ensures low maintenance
  • Variety of sizes for many applications

    Zone 1 Hazardous Area Lighting - Fluorescent

    Hazardous Area Zone 1 Lighting Stockists & Suppliers Shipping Worldwide

  • Through wiring (add /TW to version coding)
  • Alternative voltages available – please ask for details
  • Zone 1 standard fluorescent versions: Petrel 9R/218/HF (2x18W), 9R/236/HF (2x36W), 9R/258/HF (2x58W)
  • Zone 1 emergency fluorescent versions: Petrel 9R/218/HF/EM (2x18W), 9R/236/HF/EM (2x36W), 9R/258/HF/EM (2x58W)
  • Sizes: 2x18W (802mm), 2x36W (1402mm), 2×58 (1702mm)
  • Automatic end of life shutdown
  • Integral battery for emergency fluorescent version
  • EOL lamp shut down
  • Integral battery with 3 hour duration on emergency versions
  • Optionally omission of isolation switch

where S = single lamp fitting and T = twin light fitting.

hazardous area zone 1 fluorescent – Single & Twin Light Fittings

Petrel Zone 1 recessed fluorescent luminaires are available as twin lamps for standard and emergency lighting in 36 watts, 72 watts and 116 watts – contact T&D to discuss your hazardous area lighting requirements, we can provide lighting design layouts from the very simple to the extremely complex.

Part Number Light Description Fluorescent Recessed Lighting Sizes Petrel 9 Series  Lighting Fitting Dimensions Fixing Centres Hazardous Area Certification
9R/218/HF 9R/218/HF 2 (Twin) x Fluorescent 36 Watts 802 x 300 x 160mm 642mm Zone 1 Ex de
9R/236/HF 9R/236/HF 2 (Twin) x Fluorescent 72 Watts 1402 x 300 x 160mm 1242mm Zone 1 Ex de
9R/258/HF 9R/258/HF 2 (Twin) x Fluorescent 116 Watts 1702 x 300 x 160mm 1542mm Zone 1 Ex de



Part Number Light Description Fluorescent Recessed Lighting Sizes Petrel 9 Series  Lighting Fitting Dimensions Fixing Centres Hazardous Area Certification
9R/218/HF/EM 9R/218/HF/EM 2 (Twin) x Fluorescent 36 Watts 802 x 300 x 160mm 642mm Zone 1 Ex de
9R/236/HF/EM 9R/236/HF/EM 2 (Twin) x Fluorescent 72 Watts 1402 x 300 x 160mm 1242mm Zone 1 Ex de
9R/258/HF/EM 9R/258/HF/EM 2 (Twin) x Fluorescent 116 Watts 1702 x 300 x 160mm 1542mm Zone 1 Ex de



Zone 1 Recessed Fluorescent Luminaire ATEX Ex de - Petrel 9 Series

Zone 1 Recessed Fluorescent Luminaire ATEX Ex de – Petrel 9 Series

ZONE 1 FLUORESCENT Recessed LUMINAIRE ATEX

PETREL 9 SERIES – Technical Data

Supply Voltage 230V 50/60Hz standard, 110V, 254V and 277V Optional on some 18W and 36W. 60Hz also optional. Suitable for central battery operation
Operating Temperature -20ºC to +55ºC standard supply subject to ambient temperature requirements
Control Gear Electronic instant start ballast and integral charger inverter for emergency versions. EOL cut off. 3 hour operation with internal battery subject to ambient temperature
Lamp Options Zone 1- Twin 18W, 36W, 58W T8 (Lamps not provided)
Cable Entries 2 x M20 at each end (3 plugged as standard)
Terminals 3 wire and earth. Cable size 4mm² max.
Through wiring option available
Mounting Facility 4 fixed holes on rear of enclosure
Access Remove toughened glass front panel and quick release diffuser
Material Polyester coated steel and toughened glass in an aluminium frame
Finish Standard colour – White polyester coated
Weight Standard / Emergency Fluorescent Light Fittings
2x 18 Watt – 12kgs / 10kgs
2 x 36 Watt – 14kgs / 13kgs
2 x 58 Watt 15kgs / 15kgs
Features Flush fitting closing panel minimising dust and bacterial build up
Heavy duty rigid construction
Internal automatic isolation (may be omitted upon request)
110V, 254V and 277V available.
