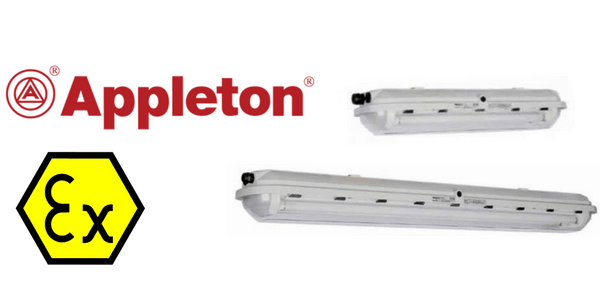

Appleton FN is part of the Zone 2 (21/22) hazardous area fluorescent luminaire ATEX lighting range and are designed as a nonmetallic hazardous area lighting solution for both indoor and outdoor industrial use which is corrosion resistant and protected against dirt, water and moisture.

Typical applications of ATEX fluorescent luminaires include the oil refineries, petrochemical facilities, pulp and paper mills, food processing plants, warehouses, underground tunnels and general manufacturing facilities.

Zone 2 (21/22) Hazardous Area Fluorescent Luminaire Lighting ATEX

Features & Benefits

  • Corrosion-resistant fiberglass reinforced polyester body and hinged polycarbonate lens.
  • High impact resistance housing (20 Joules – IK10) from -40 °C to +55 °C (-40 °F to +131 °F) ambient temperature and wind profile for use in extreme offshore and onshore environments.
  • Latch assembly and elastomer gasket seals against water and dust ingress, IP66/67.
  • Easily accessed for maintenance using Allen key or straight blade screw driver.
  • Central opening with unique patented release system to prevent damage.
  • Hinged parabolic reflector for high lumen output efficiency.
  • Vibration resistant spring loaded lampholders for Bi-pin (G13) or mono-pin (Fa6) versions.
  • Electronic multi-tap ballast 110 to 254 Vac/Vdc +/- 10% 50/60 Hz, for global applications. High power factor electronic ballast (>0.95). EOL (End Of Life) protection in accordance to the latest EN/IEC 60079-7 standard.
  • Also available with electronic ballast 220/240 Vac/Vdc +/- 10% 50/60 Hz. High power factor electronic ballast (>0.95). EOL.
  • Available in 3 hours emergency lighting version, including multi-tap ballast with built-in monthly self test. Test results through multicolor LED display.
Appleton RE for use in hazardous locations defined by ATEX/IECEx

Appleton RE for use in hazardous locations defined by ATEX/IECEx

Zone 2 (21/22) Hazardous Area FLuorescent Luminaire Lighting ATEX

Appleton FN

Technical Data

Ordering Information – Standard Version:
Surface/Suspension Mounting and Standard Wiring Version:
Connection via 1 x 6 terminals.
Capacity (flexible/solid): 4 mm² /6 mm² .
Unarmoured Version – Bi-pin (G13):
Three M25 threaded entries, two at one end and one at opposite end, supplied with one M25 polyamide cable gland
(dia. 8 to 18.5 mm) and two M25 polyamide blanking plugs.
Number of LampsPower (W)Lamp TypeVoltage (V)Weight (kg)Volume (dm³)Appleton Catalog NumberOld Catalog Number
218G13220/2405.532.3FNB218BKSNN096336
218G13110/2545.532.3FNB218BUSNN091336
236G13220/2407.954.2FNB236BKSNN096337
236G13110/2547.954.2FNB236BUSNN091337
258G13220/240965FNB258BKSNN096339
258G13110/2541165FNB258BUSNN091339
Armoured Version – Bi-pin (G13):
Two M20 threaded entries with brass earth continuity plate at one end and one M20 plugged clearance entry, supplied
with two M20 polyamide plugs.
Number of LampsPower (W)Lamp TypeVoltage (V)Weight (kg)Volume (dm³)Appleton Catalog NumberOld Catalog Number
218G13220/2405.532.3FNB218BKSAN096346
218G13110/2545.532.3FNB218BUSAN091346
236G13220/2407.954.2FNB236BKSAN096347
236G13110/2547.954.2FNB236BUSAN091347
258G13220/240965FNB258BKSAN096349
258G13110/2541165FNB258BUSAN091349
Ordering Information – Emergency Version:
Surface/Suspension Mounting and Standard Wiring
Connection via 1 x 4 terminals for 18 W version.
Connection via 1 x 8 terminals for 36 W & 58 W versions.
Capacity (flexible/solid): 4 mm² /6 mm² .
Unarmoured Version – Bi-pin (G13):
Three M25 entries, two at one end and one at opposite end, supplied with one M25 polyamide cable gland
(dia. 8 to 18.5 mm) and two M25 polyamide blanking plugs.
Number of LampsPower (W)Lamp TypeVoltage (V)Weight (kg)Volume (dm³)Duration (Hours) Battery CapacityAppleton Catalog NumberOld Catalog Number
218G13110/2547.332.334 AhFNB218BUSNEN096327
236G13110/2549.654.234 AhFNB236BUSNEN096328
258G13110/25410.76534 AhFNB258BUSNEN096329
Armoured Version – Bi-pin (G13):
Two M20 threaded entries with brass earth continuity plate at one end and one M20 plugged clearance entry,
supplied with two M20 polyamide plugs.
Number of LampsPower (W)Lamp TypeVoltage (V)Weight (kg)Volume (dm³)Duration (Hours) Battery CapacityAppleton Catalog NumberOld Catalog Number
218G13110/2547.332.334 AhFNB218BUSAEN096356
236G13110/2549.654.234 AhFNB236BUSAEN096357
258G13110/25410.76534 AhFNB258BUSAEN096358



Appleton FN

Appleton FN

ATEX/IECEx Certifications for hazardous areas

ATEX LED Luminaires

ATEX Fluorescent Luminaires

  • ATEX / IEC:
    — Zone 2 – 21 and 22
    Ex II 3 GD and Ex II 2 D
    — IP66/67 – IK10

GOST, Marine listed UL 1598A also available

Zone 2 (21/22) Lighting - Hazardous Area Fluorescent Luminaires ATEX – Appleton FN

Appleton FN – Hazardous Area Fluorescent Luminaires – Dimensions
