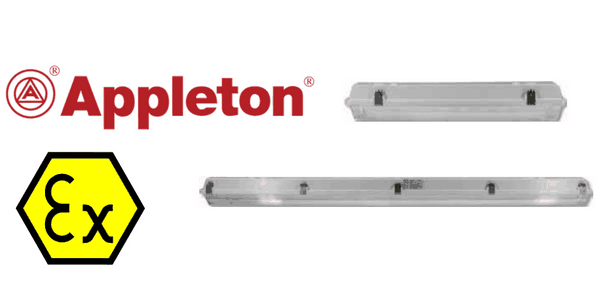

Appleton FL is part of the Zone 2 (22) hazardous area fluorescent luminaire ATEX lighting range and are designed as a nonmetallic lighting solution for light duty industrial use.

Typical applications of ATEX certified fluorescent luminaires include oil refineries, petrochemical plants, pulp and paper mills, tunnels and other light duty manufacturing locations.

Zone 2 (22) Hazardous Area Fluorescent Luminaire Lighting ATEX

Features & Benefits

  • Utilizes two 26 mm (T8) bi-pin fluorescent lamps.
  • Fiberglass reinforced polyester housing.
  • Instant start 95% power factor ballast.
  • Available in various lengths and lighting wattages ranging from 18 to 58.
  • Pre-impregnated fiberglass reinforced white polyester housing.
  • Closing system using stainless steel clips.
  • Electrostatically applied white powder painted steel reflector provides optimal lighting distribution.
  • Poured-in-place elastomer gasket secures IP65/67 ingress protection.
  • Available in 3 hours emergency version, including multi-tap ballast with built-in monthly self test. Test results through multicolored LED display.
  • Optional plug-in battery pack
  • Easy to remove for luminaire maintenance.
  • Battery voltage is 6 volts and 4 Ah capacity.
  • One fluorescent tube remains lit for up to 3 hours and up to 29% light intensity for 18 Watt, 15% for 36 Watt and 9% for 58 Watt.
  • All emergency units supplied with cut off switch to battery when fixture is opened.
Zone 2 Zone 22 Lighting - Hazardous Area Fluorescent Luminaires ATEX – Appleton FL

Appleton FL for use in hazardous locations defined by ATEX/IECEx

Zone 2 (22) Hazardous Area FLuorescent Luminaire Lighting ATEX

Appleton FL

Technical Data

Standard Version for Armored and Unarmored Cable
Supplied with one M20 cable entry at each end plus two locknuts, two earth continuity and one blanking plug.
Equipped with one 2 x — 3 x 2.5 mm² (0.004 x 0.003 in²) maximum flexible or rigid connection terminal block.
Number of LampsWattageVoltage (V)Weight kg (lbs)Volume dm³ (in³) Appleton Catalog Number
118220/2402.3 (5.07)22.3 (1360.83)FLB118BKSA
218220/2402.3 (5.07)22.3 (1360.83)FLB218BKSA
218110/2542.3 (5.07)22.3 (1360.83)FLB218BUSA
136220/2402.8 (6.17)38.0 (2318.90)FLB136BKSA
136110/2542.8 (6.17)38.0 (2318.90)FLB136BUSA
236220/2403.6 (7.94)38.0 (2318.90)FLB2636BKSA
236110/2403.6 (7.94)38.0 (2318.90)FLB236BUSA
158220/2403.4 (7.50)45.0 (2746.07)FLB158BKSA
158110/2543.4 (7.50)45.0 (2746.07)FLB158BUSA
258220/2404.4 (9.70)45.0 (2746.07)FLB258BKSA
258110/2544.4 (9.70)45.0 (2746.07)FLB258BUSA
Emergency Version for Armored and Unarmored Cable
Supplied with one M20 cable entry with earth continuity at each end and two M20 locknuts and one blanking plug.
Equipped with one 2 x — 5 x 2.5 mm² (0.008 x 0.003 in²) maximum flexible or rigid connection terminal block.
Number of LampsWattageVoltage (V)Weight kg (lbs)Volume dm³ (in³) Appleton Catalog Number
218110/2544.5 (9.92)22.3 (1360.83)FLB218BUSAE
236110/2407.0 (15.43)38.0 (2318.90)FLB236BUSAE
258110/2547.5 (16.53)45.0 (2746.07)FLB258BUSAE



Appleton FL

Appleton FL

ATEX/IECEx Certifications for hazardous areas

ATEX LED Luminaires

ATEX Fluorescent Luminaires

  • ATEX/IEC
    — Zone 2 and 22
    Ex II 3 GD
    — IP65/67
