Zone 2 Bulkhead Hazardous Area Lighting ATEX Certified – Petrel DN

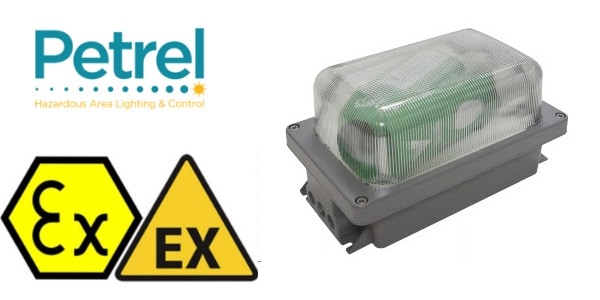

Zone 2 Bulkhead Luminaire EX nR- Petrel DN
Zone 2 Hazardous Area Bulkhead
ATEX Classification – 14ATEX TFDN /01X IP 65
Petrel DN bulkhead fitting is suitable for Zone 2 hazardous area lighting with hinged opening lens for access to lamp and control gear.
Zone 2 bulkheads can be fitted with a range of control gear suitable for lamps up to 200W and can be used with SON, MBF and tungsten lamps. Access to the lamp and control gear is via a hinged front cover. Mounting holes are cast into the base of the aluminium body.
*Product no longer supplied by Petrel.
Zone 2 Hazardous Area Lighting For Potentially Explosive Atmospheres In Both Onshore & Offshore Locations
Zone 2 Bulkhead Luminaire
ex nr hazardous area CERTIFICATION & APPROVAL
- Certification and Approval Certification Code: 14ATEX TFDN /01X
- Certificate Standards: EN 60079
- Protection: IP 65
ZONE 2 BULKHEAD
Hazardous Area Zone 2 Lighting Stockists & Suppliers Shipping Worldwide
BENEFITS & OPTIONS
- Diffuser design gives even light distribution – less glare from bulkhead
- Robust, tried and trusted design
- Bulkhead luminaire has hinged diffuser for safe relamping
- 230v 50Hz standard
- -20°C to +30°C standard supply subject to ambient temperature requirements
- Elliptical: 70w SON, 80w HPMV, 200w GLS
- Lamp source variants
- Power factor correction
- Various lamp options available suitable for Zone 2 hazardous areas
- Bulkhead versions: Petrel DXN70 (70W SON), DXN80 (80W MBF), DXN200 (GLS up to 200W)
➡ See also Hazardous Area Enclosures & Junction Boxes.
Ordering Information
| Petrel Part Number | Light Fitting Description | Light Source | Power Consumption |
| DN70 | 70 Watt SON | SON | 70 Watt |
| DN100 | 100 Watt Halogen | HALOGEN | Up to 100 Watt Halogen |
| DN23 | 23 Watt PLCE | Florescent | 23 Watt |

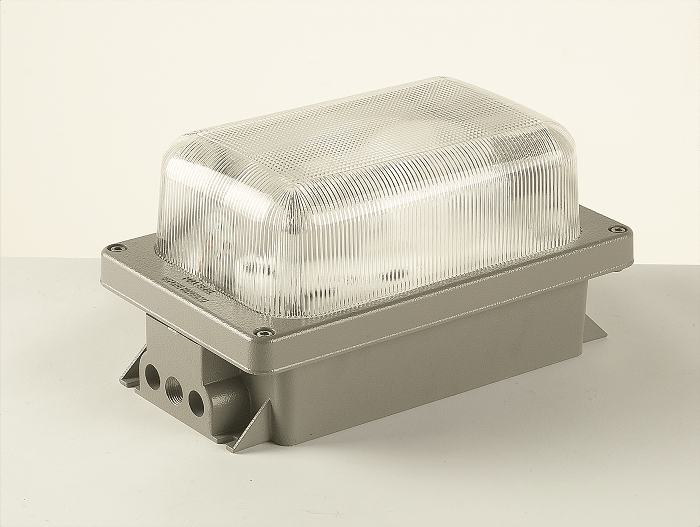

Zone 2 Bulkhead Luminaire (Hazardous Area ATEX Certified EX nR) – Petrel DN

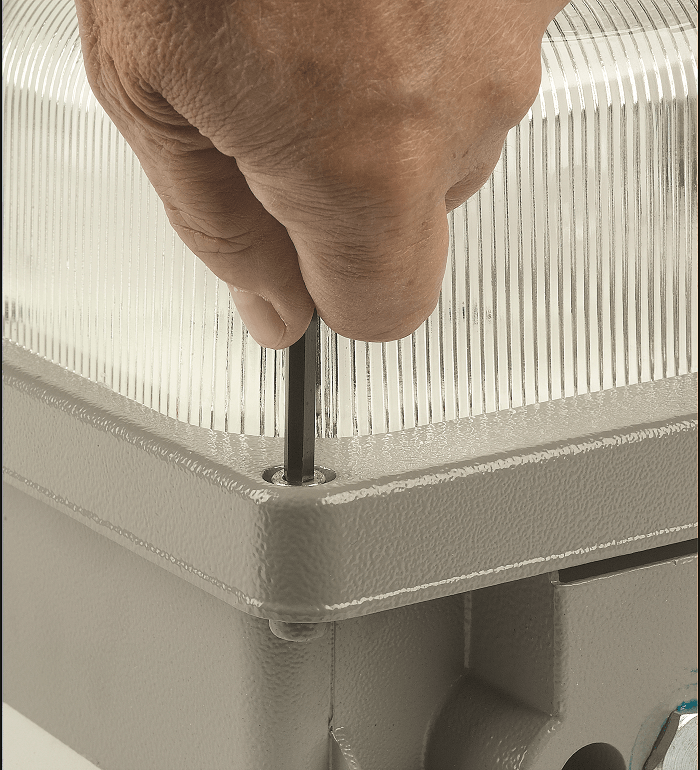

Zone 2 Bulkhead Luminaire EX nR – Bulk Lock

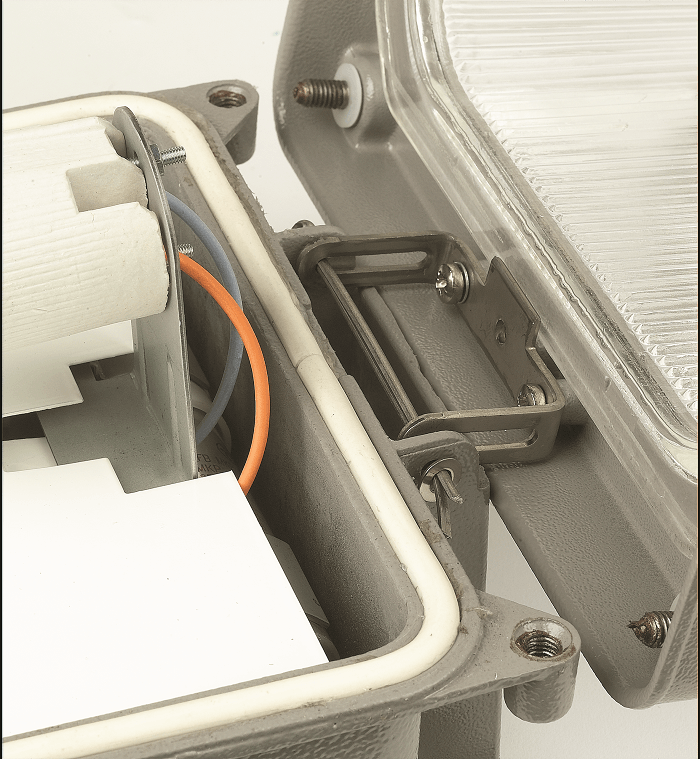

Zone 2 Bulkhead Luminaire EX nR – Hinge
Zone 2 Bulkhead Luminaire EX nR – End

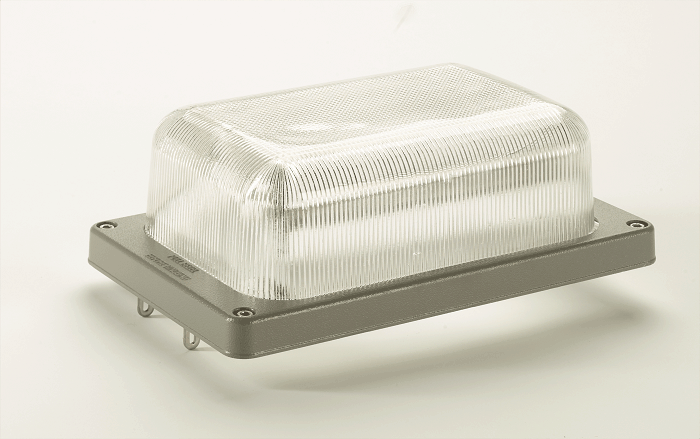

Zone 2 Bulkhead EX nR Luminaire – Lid
➡ Zone 2 floodlights are also available.
Zone 2: Petrel LED Luminaire, Fluorescent Luminaire, Floodlights & Bulkheads – all ATEX Certified for hazardous area Zone 2 lighting.
Electrical, Mechanical, Process & Instrumentation – Your Explosive Atmosphere Experts
Contact T&D for Hazardous Area Junction Boxes for Zone 1 & Zone 2 – electrical enclosures Ex rated with ATEX & IECEx certification. Zone 2 junction boxes are available in GRP, stainless steel and aluminium.
