Zone 2 Fluorescent Hazardous Area Lighting ATEX Certified – Petrel EXEN

Zone 2 Fluorescent Light Fitting

ATEX Classification – II3GD Ex nA nC IIC T4

Petrel EXEN is a fluorescent luminaire suitable for Zone 2 hazardous area lighting for use in both internal and external hazardous area applications.

Zone 2 fluorescent is designed with a moulded GRP body and polycarbonate diffuser that does not require routine testing during annual maintenance inspections of hazardous area lighting systems.

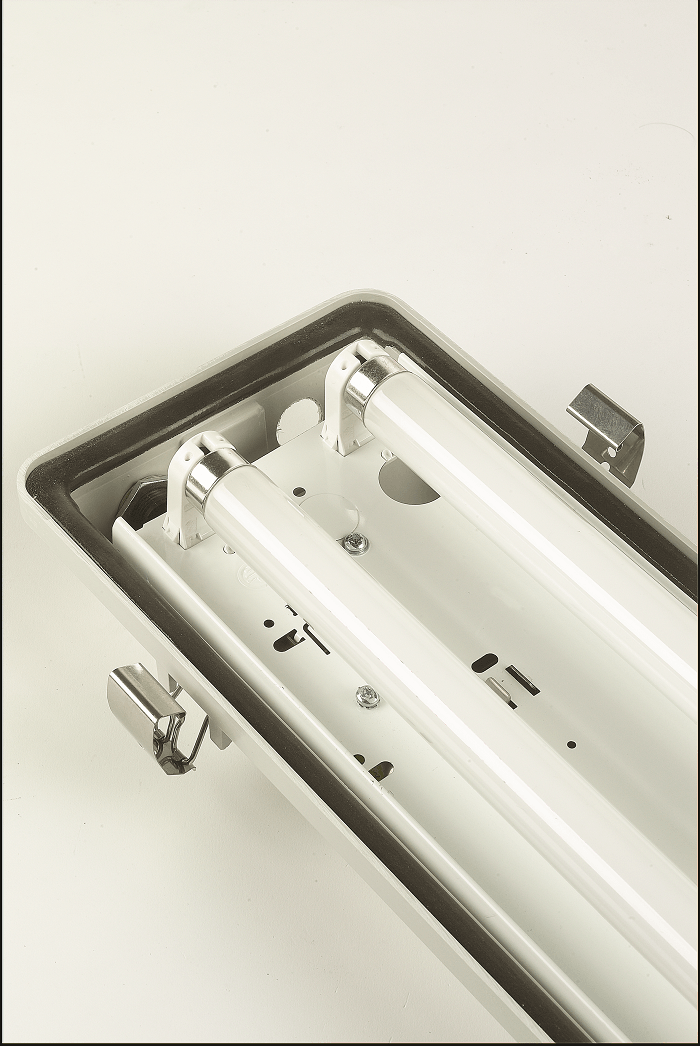

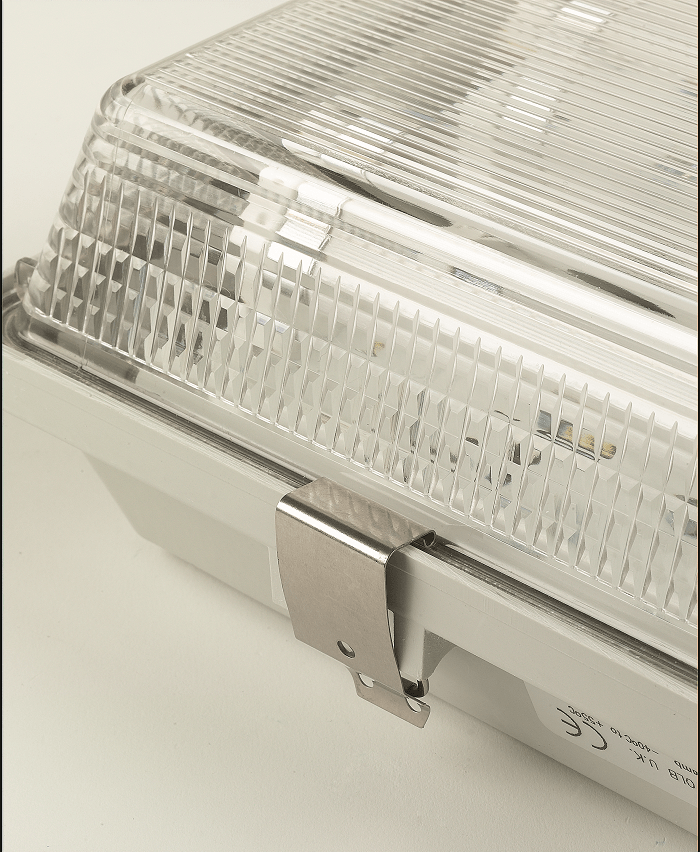

Designed cleanly so that lamp changes are achieved simply by releasing the stainless steel diffuser clips and removing the diffuser. Lamp sizes from 18W to 58W – both single and twin Zone 2 fluorescent versions are available. Three hour emergency versions are fitted with integral batteries and charging unit.

➡ See the new generation of Zone 2 LED light fittings for high output, low maintenance hazardous area lighting.

ZONE 2 FLUORESCENT

ATEX CERTIFICATION & APPROVAL

• Certification and Approval Certification Code: II3GD Ex nA nC IIC T4 Gc Ex tc IIIC T135°C Dc -20°C to +51°C
• Certification Number: ITS12ATEX47560X
• Certification Standard: EN 60079-0:2012; EN60079-15:2010; EN60079-31:2009
• Protection: IP 65

ZONE 2 FLUORESCENT

BENEFITS & OPTIONS

• Unrestricted breathing protection means no annual inspection costs
• Stainless steel clips means reduced light fitting corrosion
• Push fit gear tray for simple, fast installation of fluorescent fitting
• Through wiring (loop in, loop out) installation option (TW suffix on version code)
• Fluorescent supplied with heavy duty gull wing brackets
• Standard fluorescent versions: Petrel EXEN136/HF (single lamp 1x36W), EXEN158/HF (single lamp 1x58W fluorescent)
• EXEN218/HF (twin lamp 2x18W), EXEN236/HF (twin lamp 2x36W), EXEN258/HF (twin lamp 2x58W fluorescent)
• Emergency fluorescent versions: Petrel EXEN136/HF/EM (single lamp 1x36W), EXEN158/HF/EM (single lamp 1x58W)
• Petrel EXEN218/HF/EM (twin lamp 2x18W), EXEN236/HF/EM (twin lamp 2x36W), EXEN258/HF/EM (twin lamp 2x58W)
• Lamp sizes 2x18W (702mm, 2ft), 1 or 2 x 36W (1312mm, 4ft) , 1or 2 x 58W (1612mm, 5ft)

where S = single lamp fitting and T = twin light fitting.

SINGLE & TWIN LIGHT fluorescent  FITTINGS FOR HAZARDOUS AREA ZONE 2

Zone 2 fluorescent hazardous area light fittings are available as twin lamps in 18 watts, 36 watts and 58 watts –contact T&D to discuss your hazardous area lighting requirements, we can provide lighting design layouts from the very simple to the extremely complex.

Fluorescent Lighting Sizes	Part Number Standard & Emergency	Lighting Fitting Length	Lighting Fitting Width	Hazardous Area Certification
1 (Single) x 36 Watts	XN136/HF / XN136/HF/EM	1312mm	102mm	Zone 2 Ex nC
1 (Single) x 58 Watts	XN158/HF / XN158/HF/EM	1612mm	102mm	Zone 2 Ex nC
2 (Twin) x 18 Watts	XN218/HF / XN218/HF/EM	702mm	172mm	Zone 2 Ex nC
2 (Twin) x 36 Watts	XN236/HF / XN236/HF/EM	1312mm	172mm	Zone 2 Ex nC
2 (Twin) x 58 Watts	XN258/HF / XN258/HF/EM	1612mm	172mm	Zone 2 Ex nC



zone 2 Fluorescent light fitting

Petrel EXEN  Technical Data

Supply Voltage		230v 50/60Hz standard. Suitable for central battery operation.
Operating Temperature Requirements		-20ºC to +51ºC standard supply subject to ambient temperature
Control Gear		Electronic instant start ballast and integral charger inverter for emergency fluorescent versions. EOL cut off. 3hr operation with internal battery subject to ambient temperature.
Fluorescent Light Lamp Options		Twin 18w, 36w, 58w T8 (Lamps not provided) Single 36w and 58w T8 (Lamps not provided
Certificate		PET 14 ATEX TFXNX
Cable Entries		1 x M20 clearance holes at each end (1 plugged as Standard)
Terminals		3 wire and earth. Cable size 4mm2 max Through wiring option available
Light Mounting Facility		“Snap on” stainless steel brackets

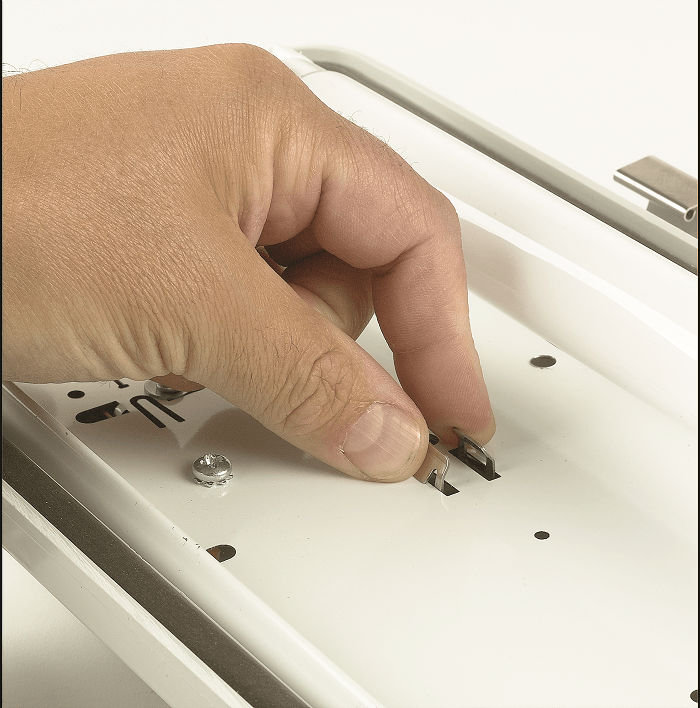

Access		Quick release stainless steel clips to free diffuser and spring clips release gear tray
Light Fitting Material		GRP moulded body, polycarbonate diffuser and coated steel control gear tray. Stainless steel diffuser and tray retaining clips
Finish		Standard colour – Light grey non coated moulding
Weight	Standard Fluorescent	2 x 18 Watts 2.8grams
		2 x 36 Watts 3.6grams
		2 x 58 Watts 5.0kilograms
		1 x 36 Watts 3.2kilograms
		1 x 58 Watts 3.4kilograms
	Emergency Fluorescent	2 x 18 Watts 3.8grams
		2 x 36 Watts 4.6grams
		2 x 58 Watts 5.6kilograms
		1 x 36 Watts 4.0kilograms
		1 x 58 Watts 4.2kilograms
