Raytec SPARTAN Linear Generation II | The Evolution

Published 28 Aug 2021

UK Stocks | International Delivery | Zone 1 (21) & Zone 2 (22) Light Fittings From Stock

Hazardous Area Lighting

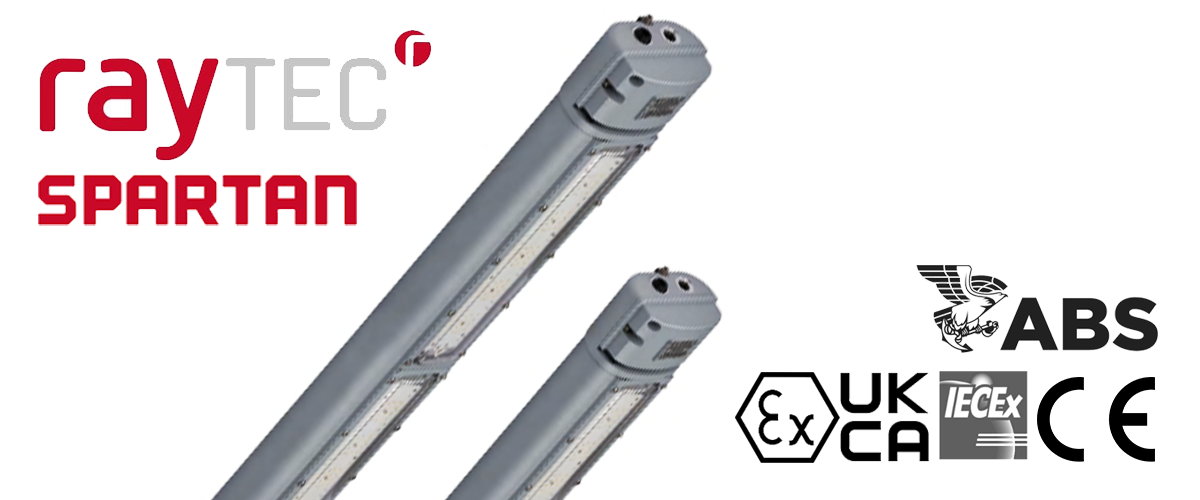

Spartan Linear Generation II

Thorne & Derrick on behalf of Raytec are delighted to announce their widely anticipated second generation of SPARTAN Linear luminaires. A natural evolution from their existing Linear luminaires the Generation II now offers more performance, even greater levels of durability together with a host of new features and variants to suit all your hazardous area lighting requirements in a range of different applications.

SPARTAN Linear Generation II is a globally certified (ATEX, IEC Ex & UKEX) range of LED light fittings designed for all new Zone 1 and Zone 2 hazardous area installations or to retrofit existing fluorescent installations.

Linear is the most popular product in the SPARTAN range so Raytec decided to build on the most important key features and carry out a comprehensive review on the design, performance and current product offering creating the Linear Generation II.

Raytec SPARTAN Linear Generation II Light Fittings is a globally certified (ATEX, IEC Ex & UKEX) range of LED light fittings designed for all Zone 1 and Zone 2 hazardous area lighting environments – LED luminaires designed for all new Zone 1 and Zone 2 hazardous area installations or to retrofit existing fluorescent installations.

Linear Generation II
Features & Benefits

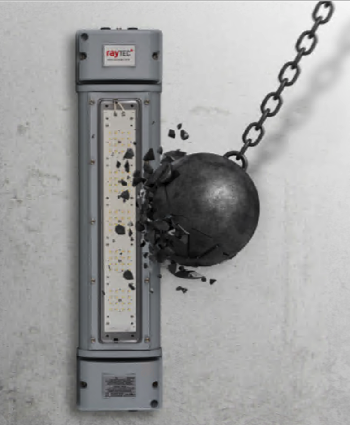

More Robust Redesigned front lens Twice the impact rating of the existing Linear More resistant to chemical attack IK10 rated

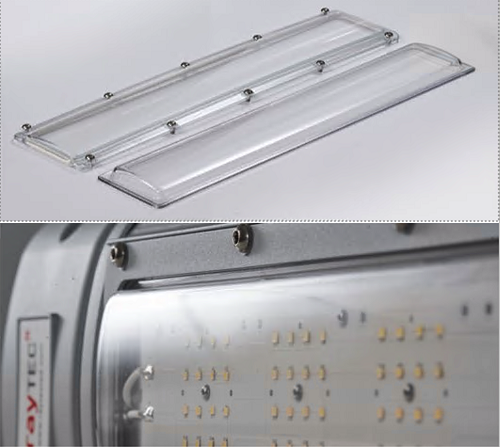

	A Closer Look….​ New lens clamping system​ Stress points removed​ Eradicates dirt from being trapped​

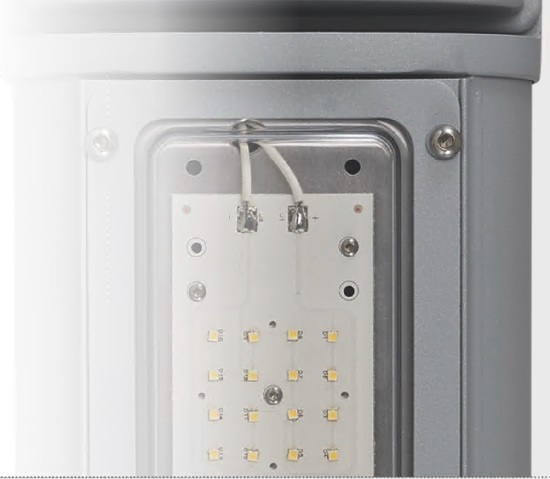

More Performance Upgraded lumen package​ WL168 – up to 7,000lm​ WL84 – up to 3,500lm​ More efficient driver on standard variants​ Up to 142lm per watt

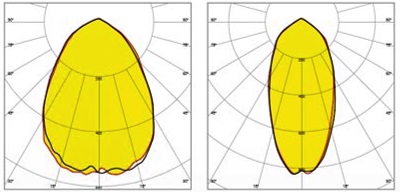

	Choice of Optics Includes asymmetric patterns for aisle, corridor and perimeter applications​ Improved standard beam pattern on Z 1 More beam angles = fewer luminaires per installation

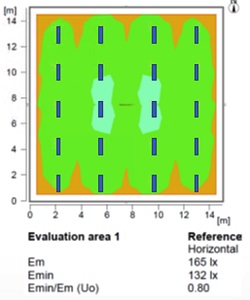

Generation I 20 fittings @ 3mtrs 678W total
	Generation II  16 fittings @ 3mtrs​  384W total (45% reduction)​  Lower investment cost​  Lower installation cost
Certification Certified to the latest editions of the standards​ UKCA Approved​ ‘Ex ec’ marking on Zone 2 variants​ More stringent than the outgoing ‘nA’ marking

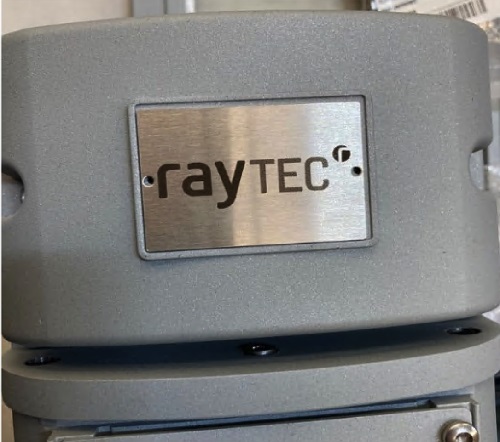

	Branding Branding label upgraded Engraved stainless steel plate

Alongside all the new features and benefits of the second generation of SPARTAN Linear, Raytec have also retained all the key elements which were so important to the original luminaire, such as

Easy Maintenance A unique modular design with interchangeable key components	Retrofittable Equivalent dimensions, fixing centres and cable entries to traditional fluorescents	Intelligent Emergency Self-testing intelligent emergency system with up to 100% output

Supporting Legacy Products

Linear Generation II products replace all existing variants, meaning you will no longer be able to order SPARTAN Linear to the existing specification (unless otherwise agreed with Raytec).

The Linear Generation II has been designed to ensure many parts are backwards compatible, and for those which are not we will ensure the supply of these will continue for a period of 10 years.

Please note – longer lead times are to be expected on legacy products.

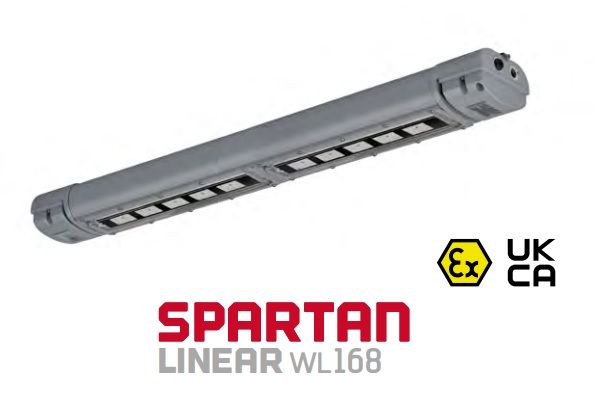

SPARTAN Linear SPX-WL168 Generation II

Video Gallery

Thorne & Derrick International, based in the UK, are Preferred Distributors and Stockists for the Raytec SPARTAN range of ATEX lighting using LED technology for the illumination of hazardous area locations and potentially explosive atmospheres.

See how Raytec have been working closely with UK notified body, Eurofins CML to ensure certificates are constantly updated to the latest edition of the standards for all hazardous area lighting in their range in the following Blog.

 UKCA Certified Hazardous Area Lighting from Raytec SPARTAN

 Did you Know? Thorne & Derrick using latest software provide a FREE LIGHTING DESIGN SERVICE for the specification and supply of ATEX & IECEx Certified light fittings to provide safe and reliable lighting in explosive atmospheres and hazardous area locations.

SPARTAN is a full range of Ex LED luminaires and lighting approved for all ATEX and IEC Ex Zone 1 and Zone 2 hazardous area environments, including UL /CSA C1D2 installations. The hazardous area lighting products are designed for the most extreme environments – Flood, Linear, Bulkhead, Bay and Crane luminaires with emergency and industrial lighting versions are also available from Thorne & Derrick International.

➡ Further Reading: UKCA ATEX & Hazardous Area Equipment Certification

EXPERTS IN EQUIPMENT FOR EXPLOSIVE ATMOSPHERES

leaders in ATEX Innovation To The Hazardous Area Industries

Thorne & Derrick are leaders in the development and distribution of Product Innovations that deliver significant improvements to clients plant, people and operational safety in the explosive atmosphere industries.

Your proactive problem solvers experienced in succession planning for the replacement of obsolete, non-conformant and legacy equipment in hazardous areas.

Your first-choice provider of innovative and competitive solutions to ensure ATEX & IECEx Compliance for Hazardous Area Electrical, HVAC & Process Instrumentation Equipment to UK and international projects.

FOLLOW US

Follow our Showcase Page on LinkedIn to receive hazardous area product innovations, industry news, whitepapers, videos, technical tips and training webinars for professionals involved in the explosive atmosphere industries.

Further Reading

• Raytec SPARTAN SPX Linear LED Zone 1/21 Linear Luminaire Size: 1.11 MB
• Raytec SPARTAN SPZ Linear LED Zone 2/22 Linear Luminaire Size: 1.10 MB
