LED Floodlights For

Hazardous Area Lighting

LED floodlight, light fittings and luminaires for hazardous area locations offer several, significant advantages over traditional fluorescent lighting technology. The biggest question when replacing your traditional light fittings and luminaires with LED is to understand which LED luminaires offer a suitable replacement of existing fittings.

Raytec SPARTAN understand hazardous area lighting and have created a quick and simple lighting guide which allows you to compare which Raytec SPARTAN Floodlight or Bay light fittings can be used to replace your traditional lighting technology.

The upgrade guide allows a simple way for distributors, specifiers and end-users to identify the correct hazardous area lighting product from the SPARTAN Flood and Bay range, in order to efficiently and effectively replace an existing unit.

As the guide shows, the power input and output related to a LED luminaire installation is far less than a traditional alternative.

This is largely due to its highly efficient distribution of light, amongst other factors, which targets more light where it is most needed, using fewer lumens at source. This means that significant savings can be made on running costs of hazardous area lighting systems, in Zone 1 or Zone 2 potentially explosive atmosphere locations.

The below tables shows a comparison between traditional light fittings and Raytec LED type light fittings – showing delivered lumens by both and the percentage of power savings from the Raytec LED lights.

Traditional Light Fittings Quoted Consumption Total Consumption inc gear loss Initial Lumens Delivered Lumens Replacement Raytec LED Light Fittings  Raytec Delivered Lumens Raytec Wattage inc gear loss Raytec % Power Savings
High Pressure Sodium 400W 460W 48,000 28,800 SPARTAN High Power Flood / Bay HP 25K 25,000 300W 35%
250W 288W 27,000 16,200 SPARTAN High Power Flood / Bay HP 15K 15,000 180W 38/29%
150W 173W 15,000 9,000 SPARTAN High Power Flood / Bay HP 10K or FL48 10,000 120/136W 31/21%
100W 115W 10,000 6,000 SPARTAN Flood FL24 5,000 71W 38%
70W 81W 6,000 3,600 SPARTAN Flood FL12 2,500 34W 58%
50W 58W 3,500 2,100 SPARTAN Flood FL12 2,500 34W 41%
Metal Halide 400W 460W 38,000 22,800 SPARTAN High Power Flood Bay HP 10K or FL48 20,000 240W 48%
250W 288W 21,000 12,600 SPARTAN High Power Flood Bay HP 20K 10,000 120/136W 58/53%
150W 173W 13,000 7,800 SPARTAN Flood FL48 of FL24 10,000/5,000 136/71W 21/59%
70W 81W 6,000 3,600 SPARTAN Flood FL24 or FL12 5,000/2,500 71/34W 12/58%

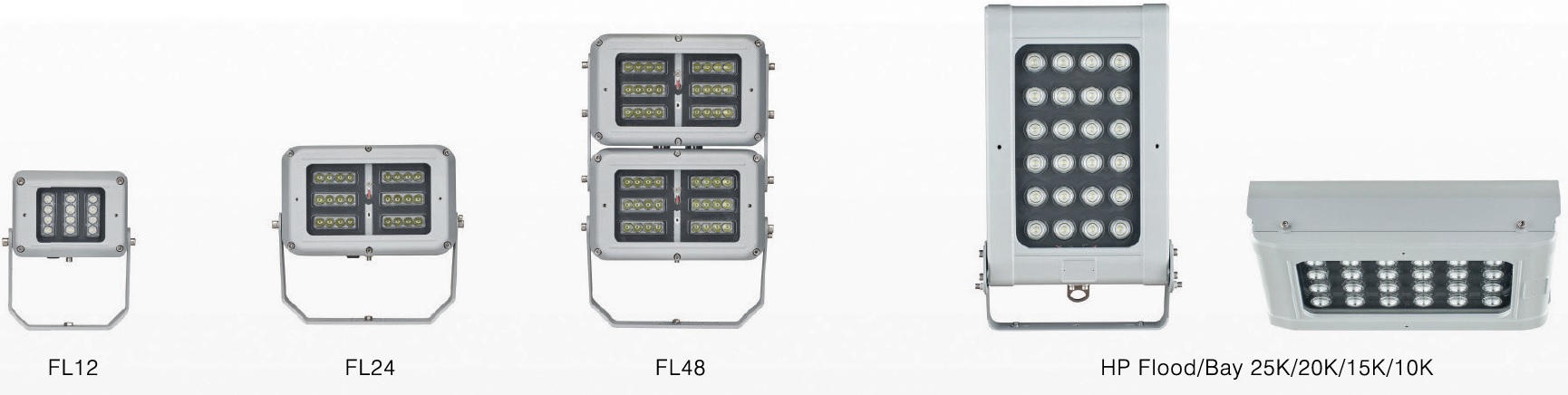

Raytec ATEX Floodlights

Raytec ATEX Floodlights



Traditional Luminaire Quoted Consumption Total Consumption inc gear loss Initial Lumens Delivered Lumens Replacement Raytec LED Luminaire  Raytec Delivered Lumens Raytec Wattage inc gear loss Raytec % Power Savings
Mercury Vapour 400W 460W 22,000 13,200 SPARTAN High Power Flood / Bay HP 15K 15,000 180W 61/56%
250W 288W 13,000 7,800 SPARTAN High Power Flood / Bay HP 10K or FL48 10,000 120/136W 58/53%
125W 114W 6,300 3,780 SPARTAN Flood FL24 5,000 71W 51%
80W 92W 3,800 2,280 SPARTAN Flood FL12 2,500 34W 63%
50W 58W 2,100 1,260 SPARTAN Flood FL12 2,500 34W 41%
Tungsten Halogen


 1500W N/A 33,000 19,800 SPARTAN High Power Flood Bay HP 20K 20,000 240W 84%
1000W N/A 22,000 13,200 SPARTAN High Power Flood Bay HP 15K 15,000 180W 82/80%
750W N/A 15,000 9,000 SPARTAN High Power Flood Bay HP 10K or FL48 10,000 120/136W 84/82%
500W N/A 9,000 5,400 SPARTAN Flood FL24 5,000 71W 86%
300W N/A 5,000 3,000 SPARTAN Flood FL12 2,500 34W 89%
200W N/A 3,000 1,800 SPARTAN Flood FL12 2,500 34W 83%



➡ Contact Thorne & Derrick Sales Team for the complete range of ATEX Lighting manufactured by Raytec.
