ATEX LED Worklite from Wolf Safety Now IECEx Approved For Temporary Lighting In Hazardous Areas

Published 17 Jul 2019

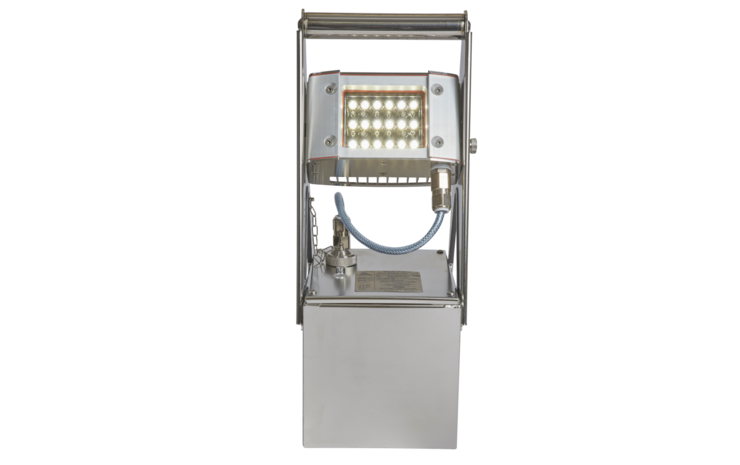

Wolf ATEX LED Worklite For Temporary Lighting In Hazardous Area

Wolf ATEX LED Worklite Now IECEx Approved For Temporary Lighting In Hazardous Area

uploaded by Chris Dodds - Sales & Marketing Manager Thorne & Derrick

ATEX LED Worklite

IECEx Approved Temporary Lighting In Hazardous Areas

Thorne & Derrick International, based in the UK, are Official Stockists and Distributors the range of Portable & Temporary Lighting manufactured by Wolf Safety Lamp to provide safe and reliable light into hazardous area zones, confined spaces and explosive atmospheres.

Since 2007 the Wolf ATEX LED Worklite has been widely used in some of the harshest environments around the world, including requirements for North Sea offshore tank cleaning lighting in hazardous areas.

Wolf ATEX Worklite are ATEX certified floodlights for safe use in hazardous area Zone 1 & 2 (Gas, Vapour & Mist Explosive Atmospheres) and Zone 21 & 22 (Dust Explosive Atmospheres) where a T4 temperature class permits. See T Class ratings to understand how surface ignition temperatures impacts upon hazardous area classification of lighting and electrical equipment.

The portable floodlights from Wolf Safety Lamp with IECEx approval as well as ATEX certification are used extensively to provide temporary lighting in explosive atmosphere applications.

For permanent and fixed location flood lighting in Zone 1 hazardous areas please see the Petrel range of ATEX floodlights available with an extensive range of lamp options.

ATEX/IECEx LED Worklite is a rechargeable, high output LED floodlight for use in harsh, remote applications for extended periods now offering more light for a longer period of time with better protection from hazardous areas.

Wolf Worklite has established a reputation for being a hazardous area floodlight with unrivaled durability and toughness. Over the years the Worklite has undergone many advancements including trebling a light output to 3100 lumens at source (previous version just over 1000 so there has been a threefold increase), doubling of light duration up to 40 hours (max) and a considerable increase in LED life which is now 100,000 plus.

Thorne & Derrick | Wolf Safety Lamp | Stockist, Supplier & Distributor

Worklite

3 standard models of temporary Wolf Worklites are available:

Wolf Worklite WL-85 with a 12 LED lamp head delivering over 1000 lumens output
Wolf Worklite WL-70 with a 6 LED lamp head delivering over 500 lumens output
Wolf Worklite WL-80 with a 12 LED lamp head delivering 1000 lumens of light output

Following the 2018 update, the Worklite now has:

3X The Light Output – up to 3,100 lumens at source
2X The Light Duration – up to 40 hours
4X The LED Life – designed to give 100,000+ hours
IECEx Certification

Wolf ATEX Worklite Floodlights | Wolf WL-70 | Wolf WL-80 | Wolf WL-85

➡ Should you require support or advice on selecting the correct hazardous area floodlight please do not hesitate to contact T&D.

The LED panel, integral to the Worklite range or portable floodlights manufactured by Wolf Safety Lamp, now has 18 LED’s providing a brighter beam of light with each LED having an encapsulated optical device. This unique design gives a piercing spot beam which provides excellent long-distance illumination and a flood of lower level fringe light into open and confined spaces in hazardous zone areas and potentially explosive atmospheres.

The 18 LED’s now offer 100,000 hours life securing reliability and LED longevity assured by efficient heat dissipation through built in fins in the LED head unit.

The WL-85 Worklite has seen an increase in LED efficieny due to the low power option increasing to a maximum of 40 hours duration. The emergency floodlight option, both with ATEX and IECEx certification, ensures that even if the power fails the user will not be in the dark when charging in a non hazardous area.

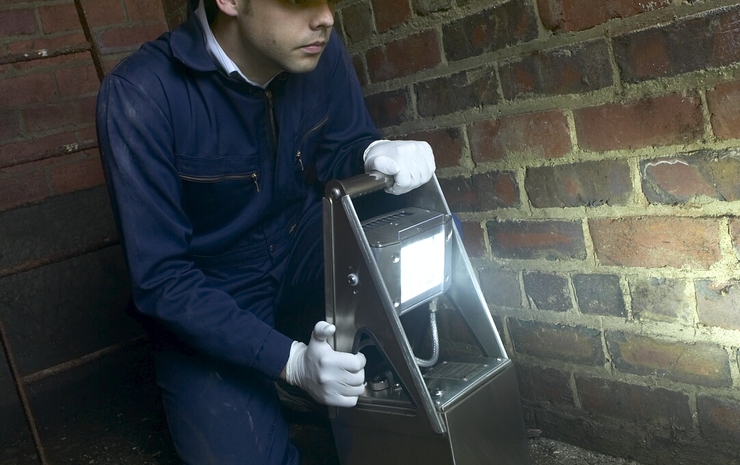

ATEX/IECEx LED Worklite for use in harsh, remote applications for extended periods

The Wolf WL-80 and WL85 Worklites are both certified to IP66 and IP67 – in other words they are dust tight and have protection against powerful jets of water, heavy seas and immersion due to the new fully sealed piezo switch.

The newer version of the ATEX Worklite retains the stainless steel casing and aluminium lamp head continuing the ability to withstand arduous and corrosive environments characterised by flammable gas and vapour atmospheres due to the solid and robust design.

The new and further developed Wolf WL-80 Worklite offers the same performance as the WL85 and now boasts a 30% decrease in weight (6.5kg), Futher to this the Wolf WL-85 now has increased battery operation on a low power at a maximum of 40 hours.

All Wolf Worklites come supplied with a disposable anti-static Lens Guards to protect the lens in shot blasting and painting applications, which can be re-ordered on the W-200 part number.

HAZARDOUS AREA CERTIFICATION

Wolf Worklites are certified according to leading hazardous area classifications including:

Area Classification Zone 1 & Zone 21, Zone 2 & 22, Gas and Dust
Type of Protection ‘e’ Increased Safety, ‘ib’ Intrinsic Safety, ‘mb’ Encapsulation, tD Enclosure Protection
Apparatus Coding II 2 GD II T4 (Tamb = 55°C) T135°C
Certificate Numbers Sira07ATEX3027 & IECEX SIR 18.0028X

Portable Lighting for hazardous areas

Wolf Safety Lamp lighting ranges include an extensive range of ATEX and IECEx certified portable lighting for safe use in potentially explosive atmospheres, including hazardous area Zone 1 & Zone 2: explosion proof Wolf handheld torches, headtorches, handlamps with bulb or LED versions.

Wolf - Hazardous Area Zone 1 & Zone 2 Handlamps, Headlamps, Torches & Floodlights (ATEX Certified)

Thorne & Derrick are hazardous area lighting specialists stocking a complete range of portable and permanent fixed lighting including both fluorescent and LED technology in standard linear light fittings, wellglass, high bay and floodlight design certified by ATEX for both Zone 1 and Zone 2 hazardous areas.

Technical Resources | Hazardous Area Zones | T Class Temperature Ratings | Explosive Atmospheres (Definitions)
