Hazardous Area Lighting

Floodlights & High Bays

Raytec hazardous area lighting products include; a high power, heavy duty floodlight, and a high power Highbay solution – combined into a single luminaire!

Customers are able to specify and configure the hazardous area lighting product as a Floodlight or Highbay variant with different mounting options – choose from two dedicated bracket kits which are designed to mount and position the lamp head in either orientation. With the dedicated brackets, they have the option to convert the fitting to either a Floodlight or Highbay version at any time.

Take a look…

High Power Floodlight

Raytec Spartan Flood HPFL25K High Power Floodlight Zone 1

Raytec Spartan Flood HPFL25K High Power Floodlight Zone 1

Raytec HPFL25K designed for large spaces, the SPARTAN high power Floodlight and Highbay luminaires can deliver up to 25,000 lumens.

The Floodlight variant has been designed to light up large, open areas such as an Offshore Oil Rig – the dedicated bracket allows the beam angle to be tilted and easily targeted into the required space.

The Highbay variant Raytec HPBY25K is designed for use in very high area applications such as aircraft hangers or hazardous area warehouses. Lighting installations that require high quantities of light from a powerful ceiling mounted solution.

High Power Highbay

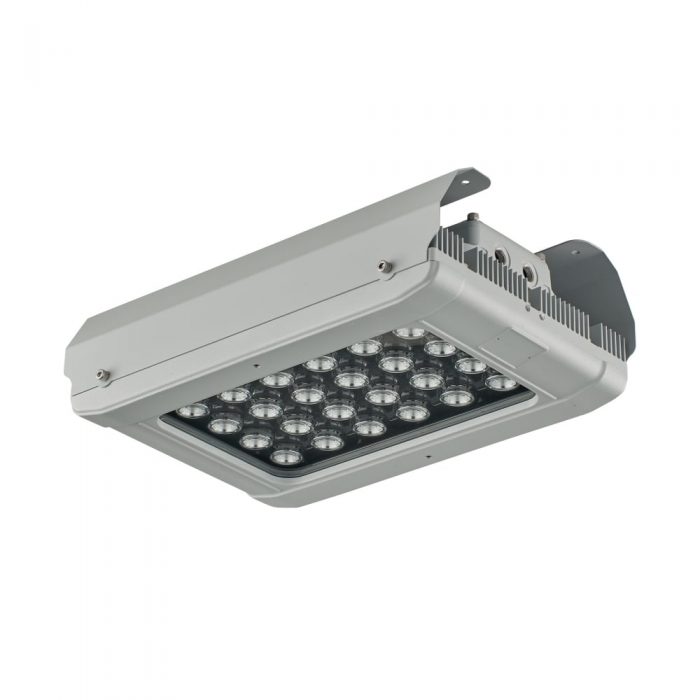

Raytec Spartan Bay HPBY25K High Power Bay Light Zone 1

Raytec Spartan Bay HPBY25K High Power Bay Light Zone 1

As well as requiring a high power lighting solution these applications need an even distribution of light to deliver the optimal working conditions in hazardous area locations. The SPARTAN high power Floodlight and Highbay luminaire feature Raytec’s cutting-edge holographic diffuser technology which smooths and shapes the light output to deliver crisp, even illumination. Additionally, each individual optic has been carefully optimised to achieve a uniform light distribution and the best thermal performance. The LEDs are also recessed to minimise any chance of glare.

Rated for all Zone 1 and Zone 2 hazardous areas, the new high power Floodlight and Highbay luminaire includes all of the standard SPARTAN family features. This includes a modular design for easy maintenance and installation, along with interchangeable lens inserts, enabling a variety of beam patterns.

ATEX Floodlights | Zone 1 Floodlight LED Hazardous Area Lighting

ATEX Floodlights | Zone 2 Floodlight LED Hazardous Area Lighting

ATEX High Bay Lights | Zone 1 LED Hazardous Area Lighting

ATEX High Bay Lights | Zone 2 LED Hazardous Area Lighting

Each lighting also features a smart PSU with DALI and dimming capabilities as standard. The PSU can also be located remotely from the lamp head – perfect for lamppost or difficult to reach applications.

➡ Contact Thorne & Derrick Sales Team for the complete range of ATEX Lighting manufactured by Raytec.
