Abtech BPG15 Enclosures – Zone 1 & 2 ATEX

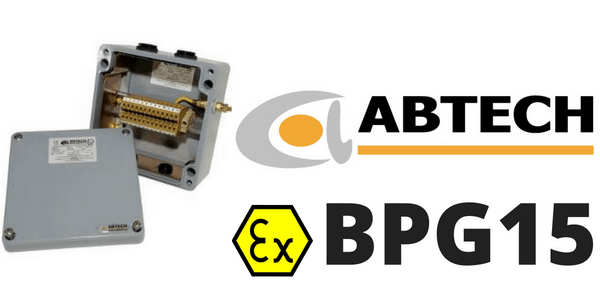

Abtech BPG15 GRP electrical enclosures are ATEX Certified for use in Zone 1 and Zone 2 hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from GRP and available in a full range of depths and sizes.

• ATEX EEx e (Zone 1 & Zone 2)
• ATEX EEx nA (Zone 2)
• ATEX EEx nR (Zone 2)

The GRP carbon loaded version of the enclosure (Abtech BPGC) helps to reduce the surface resistance of the material and consequently reduce the risk of spark from static build up – please quote Abtech BPGC15 when ordering.

GRP Enclosure

Zone 1 & Zone 2 Hazardous Areas

Enclosure Application

Abtech BPG15 electrical enclosures are suitable for both industrial and hazardous areas.

Protection Degree IP66 or IP67.

Hazardous Area Certification

• ATEX & IECEx (Zone 1 & 2; Zone 21 & 22)
• TR CU
• NEMA 4X (CSA, UL & FM) Class 1 Division 2

Abtech BPG15 GRP Enclosures

Junction Box Specification

Part Reference	Enclosure Material	Width mm	Length mm	Weight g	ATEX
Abtech BPG15 Enclosure	GRP	400	405	5580	Zone 1 & Zone 2
Abtech BPGC15 Enclosure	Carbon Loaded GRP	400	405	5580	Zone 1 & Zone 2

GRP Electrical Enclosures & Junction Boxes For Hazardous Areas

Abtech BPG15 electrical enclosures, manufactured from GRP, are suitable for Zone 1 and Zone 2 hazardous areas according to the ATEX Directive – the junction box or electrical enclosure can be populated with cable terminals including Weidmuller, Entrelec and Wago types.

Cable Gland Entry Matrix

Temperature Rating

Hazardous Area: -65°C to +130°C

Non Hazardous: -70°C to +130°C

ENCLOSURE Power Rating

31.350W

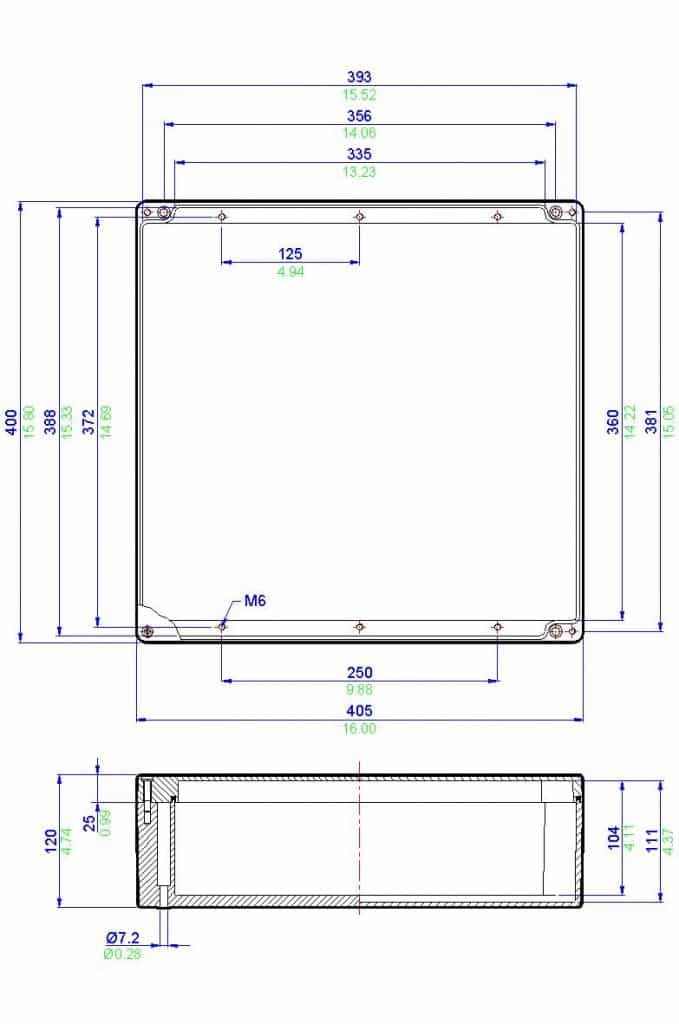

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches

T&D Are Main Abtech Stockists: Hazardous Area Power, Control & Instrumentation Junction Boxes & Electrical Enclosures suitable for low voltage and high voltage (3.3kV, 6.6kV, 11kV, 33kV) networks.

Data Sheets

• Abtech – Electrical Enclosures & Junction Boxes For Zone 1 & Zone 2 Hazardous Areas
  Download
