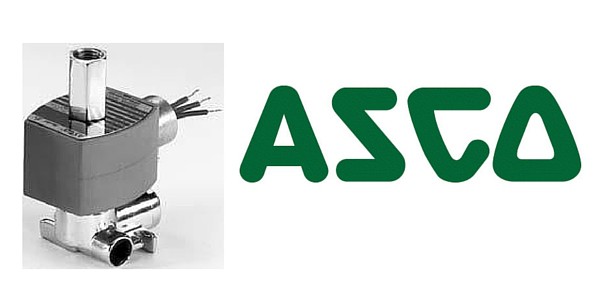

ASCO JPIS 8317 Intrinsic Safety ATEX Solenoid Valve
T&D – ASCO Numatics Authorised Distribution Channel. Process and flow control of air, gas, water, oil and steam using advanced solenoid valve technology.
ASCO JPIS 8317 intrinsic safety valves are part of the hazardous area solenoid valve range suitable for use in ATEX Zone 1 and Zone 2 hazardous area applications.
The JPIS 8317 is designed specifically for quick venting through the exhaust orifice and has resilient poppets for tight shutoff.
ASCO JPIS 8317 is suitable for use in many different industries as it can be mounted in any position and it is possible for air to be exhausted to quickly control valves.

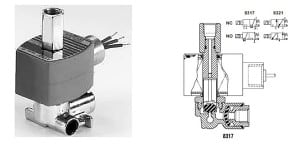

ASCO 8317 Hazardous Area Solenoid Valve With Manual Operator
The nominal ambient working temperature ranges for the ASCO JPIS 8317 hazardous area solenoid valve are -0˚C to 52˚C (-32˚F to 125˚F).
ASCO JPIS 8317 SOLENOID VALVE HAZARDOUS AREA CERTIFICATIONS
CSA UL FM ATEX IECEX
| ASCO Valve Series | Type | Pipe Size (in) | Max. Cv (Kv) |
CSA |
UL FM |
ATEX IECEx |
| ASCO JPIS 8317 | 3-Way Valve | 1/4 | 0.73 (.63) | ✓ | ✓ | ✓ |
Contact T&D for copy hazardous area certificates.
HAZARDOUS AREA CLASSIFICATION FM10ATEX0015X
ATEX IECEx Certified Valves
II 1 G Ex ia IIC T6 Ga under FM10ATEX0015X
HAZARDOUS AREA CLASSIFICATION IECExFMG10.0008X
IECEx approved for: Ex ia IIC T6 Ga under IECExFMG10.0008X
ASCO JPIS 8317 HAZARDOUS AREA SOLENOID VALVE CONSTRUCTION
| Valve Parts In Contact With Fluid | ||
| Body | Brass | 304 Stainless Steel |
| Diaphragm | CR (8317 Series only) | |
| Seals and Discs | NBR (PA upper disc for 8317 Series) | |
| Core Tube | 305 Stainless Steel | |
| Core and Plugnut | 430F Stainless Steel | |
| Core Springs | 302 Stainless Steel and 17-7 PH Stainless Steel | |
| Shading Coil | Copper | Silver |
| Pilot Seat Cartridge and Disc-Holder | CA (8321 Series only) | |
| Piston | Brass and 303 Stainless Steel (8321 only) | |
HAZARDOUS AREA VALVES
ASCO solenoid valves provide flow control in hazardous area industries including oil, gas, petrochem, mining, power and process industries to ATEX (European), IECEx (International), CSA (North America), UL (United States & Canada), NEPSI (China), INMETRO (Brazil) and TR CU (Russia) approvals.
• Standard 3-way and 4-way solenoid valves
• Direct-acting and pilot-operated solenoid valves
• Manual reset and NAMUR valves
• Rugged 316L stainless steel valves for harsh environments
• Low Power Intrinsically Safe and Non-Incendive valves
• Low temperature solenoid valves down to -58°F (-50°C)
