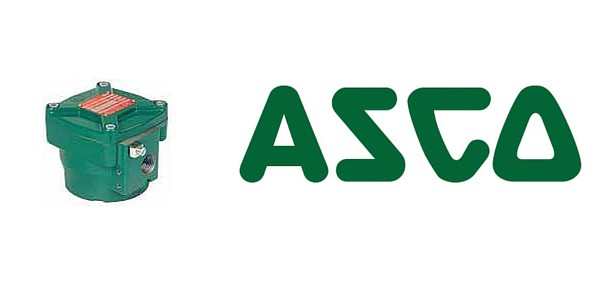

ASCO NF/WSNF 8316 Ex Proof ATEX Solenoid Valve
T&D – ASCO Numatics Authorised Distribution Channel. Process and flow control of air, gas, water, oil and steam using advanced solenoid valve technology.
ASCO NS/WSNF 8316 explosion proof enclosure are part of the hazardous area solenoid valve range suitable for use in ATEX Zone 1 and Zone 2 hazardous area applications.
The ASCO NS/WSNF 8316 is an explosion proof operator for use in potentially explosive atmospheres according to:
ATEX-Directive ATEX 2014/34/EU
EC type examination certificate no.: LCIE 00 ATEX 6008 X
IECEx Certificate of Conformity no.: IECEx LCI 07.0015X
ASCO NF/WSNF 8316 Ex Proof ATEX Solenoid Valve
Compliance with the Essential Health and Safety Requirements has been assured by compliance with the International and European Standards EN-IEC 60079-0, EN-IEC 60079-1 and EN-IEC 60079-31.
The ASCO NS/WSNF 8316 solenoid valve has an easy electrical installation by means of a screw terminal coil and the enclosure is provided with a 1/2 NPT threaded entry hole (M20 x 1,5 in option) for a broad range of cable entries.
- Ingress protection degree IP66/67
- A wide range of valves can be supplied with the operator
ASCO NS/WSNF 8316
Solenoid Valve HAZARDOUS area Certifications
CSA UL FM ATEX IECEX
| ASCO Valve Series | Type | Pipe Size (in) | Max. Cv (Kv) |
 ATEX IECEx |
 TR CU |
 INMETRO |
 NEPSI |
| ASCO NS/WSNF 8316 | 3-Way Valve | 1/4-1/2 | 3.9 (3.4) | ✓ | ✓ | ✓ | ✓ |
Contact T&D for copy hazardous area certificates.
HAZARDOUS AREA CLASSIFICATION ATEX & IECEx
ATEX IECEx Certified Valves
II 2G Ex d IIC Ga T6, II2D Ex + IIIC Db

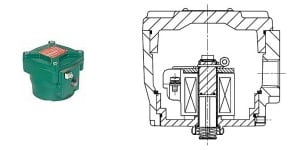

ASCO NS/WSNF 8316 Hazardous Area Solenoid Valve Construction
| Valve Parts In Contact With Fluid | ||
| Solenoid Enclosure | NF | Chromated aluminium, epoxy coated |
| WSNF | Stainless Steel (AISI 316L) | |
| Bonnett | NF | Steel (Zinc Plated) |
| WSNF | Stainless Steel (Nickel Plated) | |
| Core, Core Tube and Plugnut | All | Stainless Steel |
| Shading Coil | All | Copper or Silver |
| Nameplate | NF | Stainless Steel |
| WSNF | Stainless Steel | |
| Coil Connection | All | Embedded screw terminals |
| Fasteners & Screws | All | Stainless Steel |
| Safety Code | IECEx / Ex II 2G Ex d IIC T6..T4 Gb IECEx / Ex II 2D Ex tb IIIC 85°C..135°C Db IP66/67 |
|
HAZARDOUS AREA VALVES
ASCO solenoid valves provide flow control in hazardous area industries including oil, gas, petrochem, mining, power and process industries to ATEX (European), IECEx (International), CSA (North America), UL (United States & Canada), NEPSI (China), INMETRO (Brazil) and TR CU (Russia) approvals.
- Standard 3-way and 4-way solenoid valves
- Direct-acting and pilot-operated solenoid valves
- Manual reset and NAMUR valves
- Rugged 316L stainless steel valves for harsh environments
- Low Power Intrinsically Safe and Non-Incendive valves
- Low temperature solenoid valves down to -58°F (-50°C)
