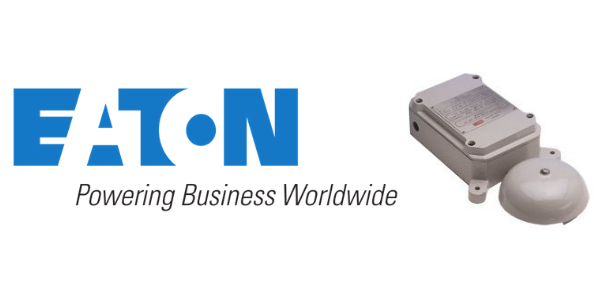

Eaton MEDC DB6 are ATEX sounders that are available in two voltages and suitable for use in ATEX & IECEx Zone 1 and Zone 2 hazardous areas.

The alarm bell hazardous area sounder is manufactured from cast iron finished in epoxy paint. Colour to customer specification.

Eaton MEDC DB6

Eaton MEDC DB6

ATEX Sounders Zone 1 & Zone 2

ATEX Sounders

ATEX

Features

  • Zone 1 and Zone 2 use.
  • Exd IIB T5.
  • ATEX approved Ex II 2G.
  • BASEEFA certified.
  • IECEx certified.
  • Brazilian (Inmetro) certified.
  • IP65.
  • Certified temperature: –20°C to +55°C.
  • 2 cable entries.
  • Captive cover screws.
Eaton MEDC DB6 - Dimensions

Eaton MEDC DB6 – Dimensions

MEDC DB6 Hazardous Area sounders

Technical Specification

Hazardous Area CertificationCertified to IEC60079-0, IEC60079-1
Certified to EN60079-0, EN60079-1
ATEX Cert. No. Baseefa03ATEX0257, Ex II 2 G Ex d IIB T5 Gb
IECEx Cert. No. IECEx BAS 09.0040 Exd IIB T5 Gb
MaterialCast Iron
FinishGrey epoxy paint as standard or to customer specification
Voltage24Vdc or 200/254 Vac 50/60 Hz
Contact springPhosphor bronze
ContactsSilver
CoilBakelite former
MagnetLaminated iron
ArmaturePivoted to operate shaft and hammer at back of gong through flameproof
bearing
Certified temp-20ºC to +55ºC
Weight11 kg
Ingress protectionIP65
EarthingM6 internal and external earthing points provided
Entries2 x M20 with one Ex d blank fitted
LabelsTag label optional
TerminationTerminals suitable for 4 x 4sqmm
cables

EATON MEDC db6 – ORDERING REQUIREMENTS

The following code is designed to help in selection of the correct Eaton hazardous area sounders with ATEX approval and certification. Build up the part number by inserting the code for each component into the appropriate box.

Eaton MEDC DB6 - Ordering Requirements

Eaton MEDC DB6 – Ordering Requirements
