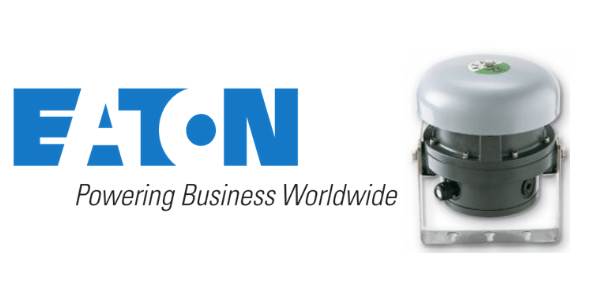

Eaton MEDC dGW 21 are ATEX sounders (signalling bell) that were designed to warn, call and signal in group II explosive atmospheres and rough environmental conditions in hazardous areas. The signalling bell produces a sound volume of approx. 105dB(A) at 1 meter distance.

The frequency of the sound of the bell is approx 1kHz, meaning the signal can be clearly heard against lower frequency background noise. The bell of the hazardous area sounder can also be activated with the presence of a telephone ringing signal in the dRGW 21 version.

The protection of this product is a mixture of Exd “flameproof” for the driver system and Exe “increased safety” for the termination chamber. The MEDC dRGW 21 offers initiation by a relay from a telephone ringing voltage.

The flameproof chamber contains the electromagnetic driver system and the enclosure is made from GRP (glass-fibre reinforced polyester), guaranteeing protection against corrosion. As the dGW 21 is safety class II, so there is no equipotential bonding necessary.

All D.C. versions are also equipped with an electronic contact breaker, increasing product service life.

Eaton MEDC dGW 21

Eaton MEDC dGW 21

ATEX Sounders Zone 1 & Zone 2

ATEX Sounders

ATEX

Features

  • ATEX II 2 G Ex de IIC T6
  • Housing made of glass-fibre reinforced polyester (GRP)
  • Volume: approx: 105 dB(A)
  • Protection: IP 66
  • Safety class II
    (no equipotential bonding necessary)
  • Version dRGW 21 with integrated telephone call relay
  • Integrated terminal box realized in Ex protection mode increased safety
Eaton MEDC dGW 20 - Dimensions

Eaton MEDC dGW 20 – Dimensions

MEDC Dgw 20 Hazardous Area sounders

Technical Specification

Explosion Protection II 2 G Ex de IIC T6
Protection IP 66
Safety class II (no equipotential bonding necessary)
Housing GRP glass-fibre reinforced polyester
Colour Black or red
Cable gland 1x M20 x 1.5 cable gland and 1 blind plug M20 x 1.5
Connection terminals 1.5sqmm fine wire.
2.5sqmm single wire
Operating conditions Indoors and outdoors
Operating position Bell dome to the front (tappet downwards)
Volume Approx. 105 dB(A) at 1m distance
Operating mode Continuous.
Temperature range Operation: -20ºC to +40ºC
Storage:  -30ºC to +80ºC
Weight Approx. 5.5 kg

EATON MEDC dgw 20 – ORDERING REQUIREMENTS

Product Type Product Description Voltage Ue Operating Voltage Range Ue Current Consumption Eaton MEDC Part Number
Housing Black
dGW 21 Ex-Signalling Bell 12 VDC +10/-15% 0.60 A MEDC F910 122 10*
dGW 21 Ex-Signalling Bell 24 VDC +10/-15% 0.35 A MEDC F910 242 10*
dGW 21 Ex-Signalling Bell 110 VAC +10/-15% 0.14 A MEDC F911 101 10*
dGW 21 Ex-Signalling Bell 110 VDC +10/-15% 0.13 A MEDC F911 102 10*
dGW 21 Ex-Signalling Bell 230 VAC +10/-15% 0.06 A MEDC F912 301 10*
dGW 21 Ex-Signalling Bell 240 VAC 60 Hz +10/-15% 0.07 A MEDC F912 401 1060*
dGW 21 Ex-Signalling Bell with telephone relay 230 VAC +10/-15% 0.06 A MEDC F912 301 1000*
Housing Red
dGW 21 Ex-Signalling Bell 12 VDC +10/-15% 0.60 A MEDC F910 122 1013*
dGW 21 Ex-Signalling Bell 24 VDC +10/-15% 0.35 A MEDC F910 242 1013*
dGW 21 Ex-Signalling Bell 110 VAC +10/-15% 0.14 A MEDC F911 101 1013*
dGW 21 Ex-Signalling Bell 110 VDC +10/-15% 0.13 A MEDC F911 102 1013*
dGW 21 Ex-Signalling Bell 230 VAC +10/-15% 0.06 A MEDC  F912 301 1013*

*All part numbers are ATEX variants
