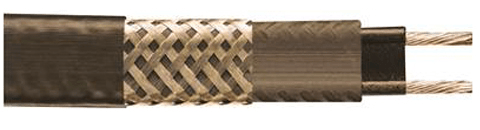

Chromalox HSRL Hazardous Area Trace Heating Cable to 150°F (65°C)

Trace Heating Cables & Systems – Design & Supply From Stock

Chromalox HSRL Heat Trace Cables – Hazardous Area Trace Heating

Trace Heating

Chromalox HSRL hazardous area trace heating cables are self regulating and provide process temperature maintenance and frost protection to pipework, instrument lines, tanks and drums up to 65º Celsius – with CSA and FM certification Chromalox HSRL heat trace cables ensures operating integrity in Div. 1 hazardous environments.

Chromalox HSRL Hazardous Area Trace Heating Cable – Features

  • Energy efficient HSRL self regulating cables requires less energy as less heat is required
  • Simple to install cable and can be cut to any length (see max circuit length)
  • HSRL trace heating cables offer low installation costs and require less maintenance minimising downtime
  • Can be single overlapped without burnout, which simplifies heat tracing of in-line process equipment such as valves, elbows and pumps
  • Chromalox HL Connection Kits reduce installation time

Chromalox Hsrl Hazardous area trace heating CABLE – SPECIFICATION

Chromalox HSRL heat trace cable wattages per metre at 10°C – 3, 5, 8 and 10 watts.

  • Approximate Cable Size : 3/8″ W x 1/8″ H
  • Maximum Maintain Temperature : 65° Celsius
  • Maximum Continuous Exposure Temperature : Power Off 85° Celsius
  • Available Models (Voltages) : 120 and 208-277V
  • Minimum Cable Bend Radius : 1-1/8″
  • Trace Heating Cable Circuit Lengths : Up to 660 feet

Chromalox HSRL hazardous area trace heating cables are self-regulating as they increase power output as temperatures falls to provide guaranteed frost protection and temperature maintenance of industrial process and water pipework.

CHROMALOX HSRL Hazardous Area TRACE HEATING CABLE

Product Offering

Part Number Trace Heating Cable Description
382070Chromalox HSRL3-1CT 3W/FT 120V
382061Chromalox HSRL3-2CT 3W/FT 240V
382053Chromalox HSRL5-1CT 5W/FT 120V
382045Chromalox HSRL5-2CT 5W/FT 240V
382037Chromalox HSRL8-1CT 8W/FT 120V
382029Chromalox HSRL8-2CT 8W/FT 240V
382010Chromalox HSRL10-1CT 10W/FT 120V
382022Chromalox HSRL10-2CT 10W/FT 240V



Chromalox HSRL Thermal Output Ratings on Insulated Metal Pipe

Chromalox HSRL Thermal Output Ratings on Insulated Metal Pipe



Chromalox HSRL Thermal Output Ratings On Plastic Pipe With Aluminum Tape

Chromalox HSRL Thermal Output Ratings On Plastic Pipe With Aluminum Tape

Chromalox HSRL Output Wattage at Alternate Voltages (W/Ft.)

Chromalox Part Number208V% Change In Output220V% Change In Output277V% Change In Output
Chromalox HSRL 32.4-202.6-133.4+15
Chromalox HSRL 54.1-184.5-105.6+13
Chromalox HSRL 86.88-147.28-98.96+12
Chromalox HSRL 108.7-139.2-811.1+10

Chromalox HSRL SELF-REGULATING TRACE HEATING CABLE

Cable Construction

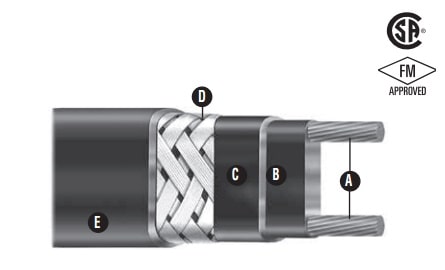

Chromalox HSRL Hazardous Area Trace Heating Cable - Construction



  • A Twin 16 AWG Copper Buss Wires are able to Provide reliable electrical current capability.
  • B Semiconductive Polymer Core Matrix is the ‘self regulating component of the cable and it’s electrical resistance varies with temperature.
  • C Polyolefin Jacket is flame retardant and electrically insulates the matric and buss wires and provides resistance to water and some inorganic chemical solutions.
  • D Tinned Copper Braid that provides additional mechanical protection in any environment, and a positive ground path.
  • E High Temperature Fluoropolymer Overjacket is a corrosion resistant, flame retardant overjacket is highly effective in many environments.

Chromalox HSRL HEAT TRACE CABLE – HAZARDOUS AREA CERTIFICATIONS

FM Approvals

  • Class I, Division 1, Groups B, C, D
  • Class II, Division 1, Groups E, F, G
  • Class III, Division 1
  • 3 Watt rated T6 temperature class
  • 5 and 8 Watt rated T5 temperature class
  • 10 Watt rated T4A temperature class

CSA

  • Class I, Division 1, Groups B, C, D
  • Class II, Division 1, Groups E, F, G
  • 3 Watt rated T6 temperature class
  • 5 and 8 Watt rated T5 temperature class
  • 10 Watt rated T4A temperature class
Hazardous Area Heating Cables

Hazardous Area Heating Cables

Chromalox video with Chris Myers Product Manager at Chromalox explaining about their heat trace product offering including self regulating trace heating cable.

Trace Heating

Chromalox HSRL trace heating cables provide temperature maintenance and frost protection to pipework and mechanical services in all industries – typical applications include heating process pipework, instrument lines and storage tanks to maintain viscosity or prevent frost damage.

Heat Tracing Using Trace Heating Cables

Trace Heating Cables – providing process heating to pipework, vessel and bulk storage drums.

Chromalox

Chromalox technical manual covering trace heating cable selection, design, heat loss calculation, heat transfer fundamentals and radiant infrared heating theory.
