Chromalox HWM Hot Water Maintenance Trace Heating Cable

chromalox-hwm-hot-water-maintenance-trace-heating-cable

Chromalox

Frost Protection Trace Heating Cables

Trace Heating

hot water maintenance

Chromalox HWM hot water maintenance trace heating cables are a hot water temperature maintenance system which uses self-regulating heat trace technology to provide commercial buildings with immediate hot water.

The system, consisting of the self-regulating cable, connection kits and specialised electronic controls, provides hot water without the need for expensive re circulation systems. It provides a simple, yet energy efficient approach by providing heat at the point where heat loss occurs.

The parallel construction of the trace heating cable can be cut to any length, spliced, tee-branched and terminated on site.

Trace Heating Cable Features

  • Energy efficient HWM self regulating heating cables require less energy as less heat is required
  • Simple to install trace heating cable which can be cut to any length
  • Field splices can be performed easily in minutes with no scrap or wasted cold sections
  • Can be single overlapped without burnout, which simplifies heat tracing of in-line process equipment such as valves, elbows and pumps
  • Chromalox termination, splice, tee and end seal kits reduce installation time

Trace Heating Cable – SPECIFICATION

Chromalox HWM heat trace cable is available in either 5 or 10 watts per foot and features 16 Awg buss wires.

  • Approximate Cable Size : 3/8″W x 1/8″H
  • Available Models (Voltages) : 120 and 208-277V
  • Minimum Cable Bend Radius : 1 1/8″
  • Trace Heating Cable Circuit Lengths : Up to 800 feet
  • Minimum Install Temperature : -40°F (-40°C)

Chromalox Part Number Order Code

Voltage

W/Ft.

Chromalox HWM Maximum Circuit Length (Ft.)
15A 20A 30A
HWM 5-1CT 387305 120V 5 200 270 400
HWM 5-2CT 387348 240V 400 540 800
HWM 10-1CT 387250 120V 10 130 155 220
HWM 10-2CT 387313 240V 260 310 440

HOT WATER MAINTENANCE cable

Construction

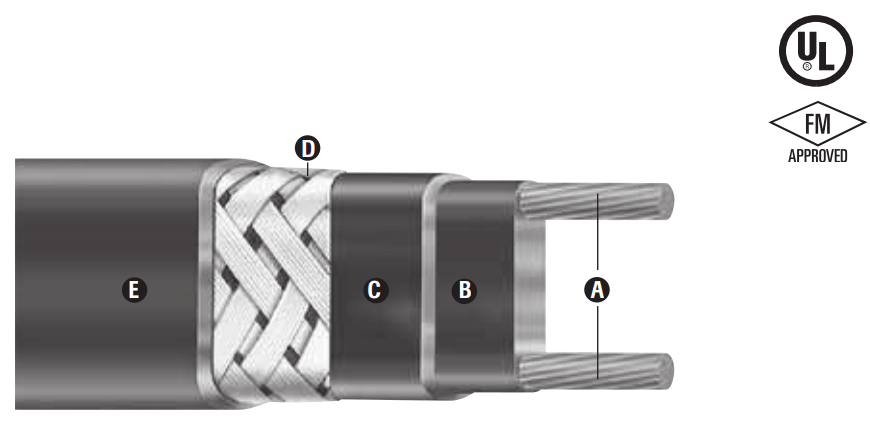

  1. Twin 16 AWG Copper Buss Wires are able to Provide reliable electrical current capability
  2. Semiconductive Polymer Core Matrix is the ‘self regulating component of the cable and it’s electrical resistance varies with temperature
  3. Flame Retardant and electrically insulates the matric and buss wires and provides resistance to water and some inorganic chemical solutions
  4. Metallic Grounding Braid that provides additional mechanical protection in any environment, and a positive ground path
  5. Fluoropolymer Outer Jacket is a corrosion resistant, flame retardant overjacket is highly effective in many environments.
