Chromalox SRF Frost Protection Trace Heating Cable – Metal & Plastic Pipe Heating Cable

Chromalox SRF Frost Protection Trace Heating Cable - Metal & Plastic Pipe Heating Cable

Trace Heating Cables & Systems – Design & Supply From Stock

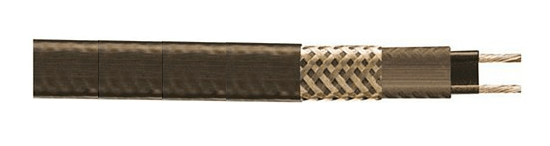

Chromalox SRF Heat Trace Cables – Trace Heating

Trace Heating

Chromalox SRF frost protection trace heating cables provide self-regulating freeze protection to institutional buildings and freeze protection applications up to 85º Celsius – with CSA and UL certification.

Chromalox SRF Frost Protection Trace Heating Cable – Features

  • Energy efficient SRF frost protection cables requires less energy as less heat is required
  • Simple to install cable and can be cut to any length (see max circuit length)
  • Can be single overlapped without burnout, which simplifies heat tracing of in-line process equipment such as valves, elbows and pumps
  • Field splices can be performed easily in minutes with no scrap or wasted cold sections
  • Chromalox termination, splice, tee and end seal kits reduce installation time
  • UL approved for Freeze protection of fire protection system piping

Chromalox SRF Frost Protection Trace Heating Cable – SPECIFICATION

Chromalox SRF heat trace cable wattages per metre at 10°C – 3, 5 and 8 watts.

  • Approximate Cable Size : 3/8″ W x 1/8″ H
  • Maximum Continuous Exposure Temperature : Power Off 85° Celsius
  • Available Models (Voltages) : 120 and 208-277V
  • Minimum Cable Bend Radius : 1-1/8″
  • Trace Heating Cable Circuit Lengths : Up to 660 feet

CHROMALOX SRF FROST PROTECTION TRACE HEATING CABLE

Product Offering

Part Number Trace Heating Cable Description
386943Chromalox SRF-3-1C 3W/FT 120V
386951Chromalox SRF-3-2C 3W/FT 240V
386100Chromalox SRF-3-1CR 3W/FT 120V
386118Chromalox SRF-3-2CR 3W/FT 240V
386960Chromalox SRF-5-1C 5W/FT 120V
386978Chromalox SRF-5-2C 5W/FT 240V
386142Chromalox SRF-5-1CR 5W/FT 120V
386150Chromalox SRF-5-2CR 5W/FT 240V
386986Chromalox SRF-8-1C 8W/FT 120V
386994Chromalox SRF-8-2C 8W/FT 240V
386062Chromalox SRF-8-1CR 8W/FT 120V
386070Chromalox SRF-8-2CR 8W/FT 240V

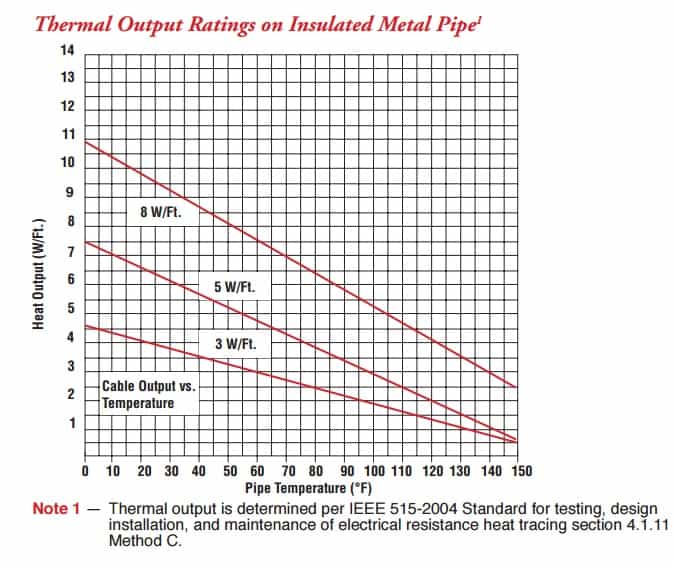

Chromalox SLL Thermal Output Rating On Insulated Metal Pipe

Chromalox SLL Thermal Output Rating On Plastice Pipe With Aluminum Tape



Chromalox SRF Output Wattage at Alternate Voltages (W/Ft.)

Chromalox Part Number208V% Change In Output220V% Change In Output277V% Change In Output
Chromalox SRF 32.4-202.6-133.4+15
Chromalox SRF 54.1-184.5-105.6+13
Chromalox SRF 86.88-147.28-98.96+12

Chromalox Chromalox SRF Frost Protection Trace Heating Cable

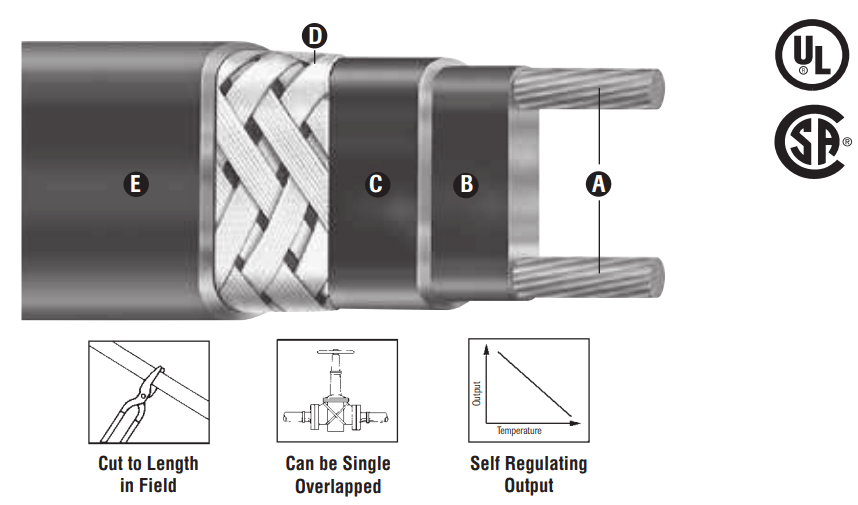

Construction

Chromalox SRP Self-Regulating Trace Heating Cable - Construction

  • A Twin 16 AWG Copper Buss Wires are able to provide reliable electrical current capability.
  • B Semiconductive Polymer Core Matrix is the ‘self regulating component of the cable and it’s electrical resistance varies with temperature.
  • C Fluoropolymer Jacket is flame retardant and electrically insulates the matric and buss wires and provides corrosion resistance.
  • D Tinned Copper Braid that provides additional mechanical protection in any environment, and a positive ground path.
  • E High Temperature Fluoropolymer or TPR Overjacket (optional) is a corrosion resistant, flame retardant overjacket is highly effective in many environments. TPR coatings protect against certain inorganic chemical solutions.

Chromalox SRL HEAT TRACE CABLE – HAZARDOUS AREA CERTIFICATIONS

UL Listed

  • Listed for ordinary areas
  • Listed for fire protection system piping

CSA

  • Certified for ordinary areas.



Chromalox video with Chris Myers Product Manager at Chromalox explaining about their heat trace product offering including self regulating trace heating cable.
