Constant Wattage heat tracing Cables

Industrial Heat Tracing Cable | Eltherm ELP/Si 40 BO 230

Eltherm ELP/Si constant wattage heat tracing cables provide process temperature maintenance and frost protection to pipework, instrument lines, tanks and drums up to 200° Celsius.

These heat tracing cables manufactured by Eltherm offer flexibility in use as they can easily be cut to the required length off the roll, with the assurance of constant power output. There is no need for connecting cable and input can be unilateral. The constant wattage heat tracing cable is quick and easy to assemble, saving time and reducing operating costs.

Since the trace heater cable output of up to 40 W/m is possible for lengths laid to piping, Eltherm ELP/Si heat tracing cables are particularly suited for piping with high output requirements such as in industrial process technology. The following are applications are below:

Chemistry & Petrochemistry
Building Construction
Food Processing Industry
Paper Industry
Process Industries

HEAT TRACING CABLES

eLTHERM ELP/SI 40 Heater Cable SPECIFICATION

Eltherm ELP/SI 40 Heater Cable wattages per metre – 10, 20, 30 and 40 watts.

Nominal Supply Voltage : 230v AC/DC
Nominal Temperature : 200ºC
Nominal Output: 40 w/m
Minimum Installation Temperature : -60° Celsius
Minimum Heater Cable Bend Radius : 30mm
Frost Protection Cable Insulation: Silicone
Constant Wattage Heater Cable Outer Jacket: Silicone
Protective Braid: Copper
Bus Wire Cross Section: 2 x 1.5mm²
Moisture Proof: Yes

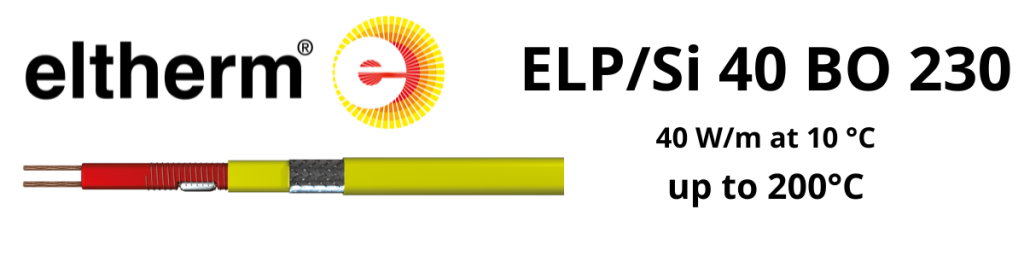

Eltherm ELP/Si Constant Wattage Heat Tracing Cable | Constant Wattage Process Temperature Maintenance

Bus wire: Copper
1st insulation: Silicone
Heating conductor: Heating conductor alloy
2nd insulation: Silicone
Protective braid: Copper, nickel-plated
Outer jacket: Silicone

Eltherm ELP/SI 40 Heater Cable Benefits

Single end power input
Trace heating cable can be cut from the cable drum
Constant power output per meter
Long life cycle
Laying without exact measuring possible
High chemical resistance
UV resistance heating cables
Moisture proof

ELP/Si Constant Wattage Cable

Constant wattage heating cables such as the ELP/Si consist of a succession of heating zones (length = contact spacing) and can be cut to length in sections of the contact distance to the required length – when cutting heater cables into lengths, the heating circuit is interrupted up to the next contact point and this non-active part can be used as a cold lead.

Maximum heating circuit length

Type	Watts/Metre	Length (m) at 50°C	Length (m) at 150 °C
ELP/Si 40 BO 230	40	73.5	70.5

* The maximum maintain temperature depends on the respective installation situation and must be considered on a case-to-case basis.

Heating Zone

CONSTANT WATTAGE HEATING CABLES

Constant wattage heating cables consist of a succession of heating zones (length = contact spacing) and can be cut to length in sections of the contact distance to the required length – when cutting heater cables into lengths, the heating circuit is interrupted up to the next contact point and this non-active part can be used as a cold lead.

Constant wattage heater cable when installed onto pipework for frost protection or process temperature maintenance must not intersect, contact or overlap to prevent overheating.

Self-regulating heating cables can be overlapped without risk of burn-out or overheating.
