Self Regulating heat tracing

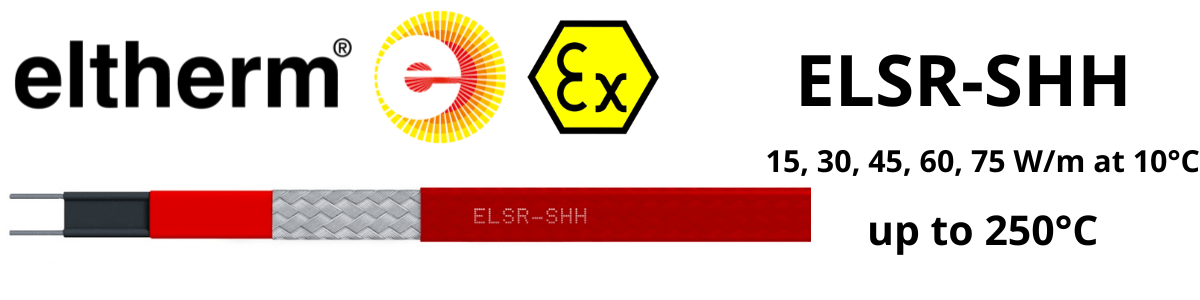

ATEX Heat Tracing Cable | Eltherm ELSR-SHH
The Eltherm ELSR-SHH high temperature self-regulating heat tracing cables  is designed for temperature maintenance in industrial processes and applications in hazardous areas – and is suitable for use up to 250 °C . The high chemical resistance allows the cables to be installed in environments with exposure to aggressive influences. With IECEx and ATEX Certification, Eltherm ELSR-SHH Heat Tracing cables are suitable for Zone 1 and Zone 2 hazardous areas – and have a temperature Class of T3/T2.
The ELSR-SHH is now available with certificate according to standard EN 60079-30-1:2017 .
The self-regulating trace heating cable provides frost protection and temperature maintenance to pipework, silos vessels ,tanks, valves and pumps. Suitable for use in the following industries:
- Chemistry and Petrochemistry
- Oil and Gas Industry
- Power plants
- Water and sanitation utilities
Our Team of Trained Sales Engineers are available to advise and support your ATEX heat tracing enquiries – this includes design and supply of complex multi-kilometre, major-project systems to custom heat trace cable kits for the protection of winterisation against plant and factory facilities.
Eltherm ELSR-SHH heat tracing CABLE – SPECIFICATION
Eltherm ELSR-SHH Heater Cable wattages per metre at 10°C – 15, 30, 45, 60 and 75 watts.
- Nominal Supply Voltage : 230v
- Maximum Exposure Temperature : 250°C
- Minimum Installation Temperature : -60° Celsius
- Minimum Heater Cable Bend Radius : 35mm
- Heater Cable Outer Jacket: Fluoropolymer

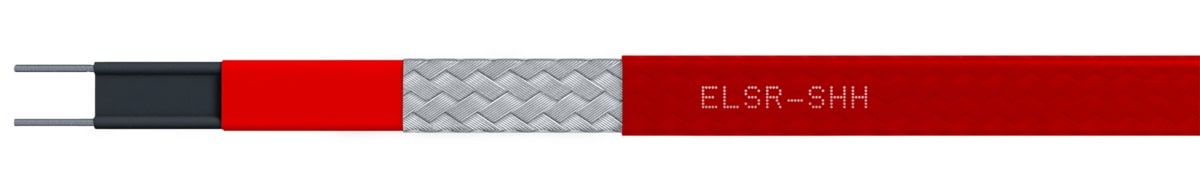

- Bus Wire: Nickel plated copper, 1.23 mm²
- Bus wire – nickel plated copper, 1.23 mm²
- Self-regulating heating element
- InsulationÂ
- Protective braid – (Cu, tin plated)
- Outer jacket – fluoropolymer
Eltherm ELSR-SH self-regulating heater cables has a BOT cable design which has a high chemical resistance and is able to withstand aggressive chemicals, oil and fuel for improved service life due to the protective braid and fluoropolymer outer jacket.
Hazardous Area Classifications
The ELSR-SHH hazardous area heat tracing cable has both ATEX and IECEx approvals suitable for use in Zone 1 and Zone 2 hazardous areas.
Heat Tracing Classification:
- II 2G Ex 60079-30-1 IIC Gb
- II 2D Ex 60079-30-1 IIIC Db
System Classification:
- II 2G Ex 60079-30-1 eb IIC T3 Gb
- II 2D Ex 60079-30-1 tb IIIC T200°C Db
Hazardous Area Certification:
- EPS 17 ATEX 1169 X
- CML 20 ATEX 3171
- IECEx EPS 17.0064 X
- IECEx CML 20.0106
- CML 21 UKEX 3806 U
- CML 21 UKEX 3807
Temperature Class: T3
Eltherm ELSR-SHH Benefits
- Temperature Classification T3*
- Five Nominal outputs
- Moisture proof
- Resistant to chemicals
- Use in hazardous areas
*Except for 75 W/m: T2
The Eltherm ELSR-SHH high temperature heat tracing range is designed for temperature maintenance in industrial processes and applications in hazardous areas. The heat tracer’s high chemical resistance allows them to be installed in environments with exposure to aggressive influences.
heat tracing CABLE SELECTION TABLE – ELTHERM ELSR-SHH
Contact T&D for technical guidance, heat loss calculations for pipework systems and optimum specification of the correct heat tracer cable for your application.
| Eltherm ELSR-SHH Heater Cable | Nominal Output | Cable Dimensions Approx. (mm) | Cable Weight Approx. (g/m) |
| ELSR-SHH-15-2-BOT | 15 W/m at 10ºC | 12.1 x 5.4 | 146 |
| ELSR-SHH-30-2-BOT | 30 W/m at 10ºC | 12.1 x 5.4 | 146 |
| ELSR-SHH-45-2-BOT | 45 W/m at 10ºC | 12.1 x 5.4 | 146 |
| ELSR-SHH-60-2-BOT | 60 W/m at 10ºC | 12.1 x 5.4 | 146 |
| ELSR-SHH-75-2-BOT | 75 W/m at 10ºC | 12.1 x 5.4 | 146 |

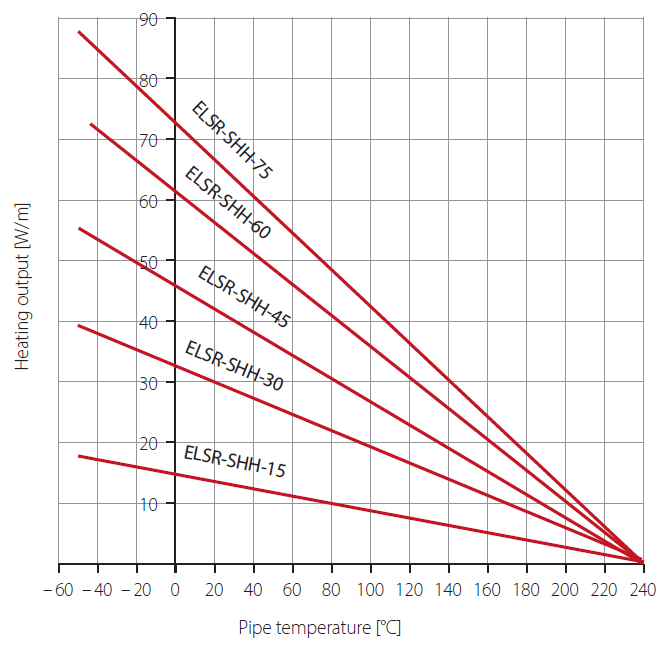

Eltherm ELSR-SHH heater cable power output on insulated metallic pipes in accordance with EN 62395-1
ELSR-shH Heating circuit length
| Switch on temperature [°C] | Nominal fuse rating [A] |
Heating circuit length*1 [m] | ||||
| ELSR-SHH15-2-BOT | ELSR-SHH30-2-BOT | ELSR-SHH45-2-BOT | ELSR-SHH60-2-BOT | ELSR-SHH75-2-BOT | ||
| 10 | 10 | 76.0 | 52.0 | 38.0 | 24.0 | 14.0 |
| 16 | 122.0 | 82.0 | 62.0 | 38.0 | 24.0 | |
| 20 | 154.0 | 102.0 | 76.0 | 46.0 | 28.0 | |
| 32 | 154.0 | 108.0 | 88.0 | 76.0 | 46.0 | |
| 0 | 10 | 70.0 | 46.0 | 32.0 | 18.0 | 12.0 |
| 16 | 112.0 | 74.0 | 52.0 | 30.0 | 18.0 | |
| 20 | 140.0 | 92.0 | 66.0 | 36.0 | 22.0 | |
| 32 | 146.0 | 104.0 | 84.0 | 58.0 | 36.0 | |
| -20 | 10 | 62.0 | 40.0 | 24.0 | 12.0 | 8.0 |
| 16 | 98.0 | 66.0 | 38.0 | 20.0 | 12.0 | |
| 20 | 122.0 | 82.0 | 46.0 | 26.0 | 16.0 | |
| 32 | 138.0 | 98.0 | 76.0 | 42.0 | 24.0 | |
| -40 | 10 | 52.0 | 30.0 | 14.0 | 8.0 | 4.0 |
| 16 | 82.0 | 50.0 | 24.0 | 12.0 | 8.0 | |
| 20 | 102.0 | 62.0 | 28.0 | 16.0 | 10.0 | |
| 32 | 126.0 | 88.0 | 46.0 | 24.0 | 14.0 | |
*1 Heating circuit lengths on the following conditions:
- 230 V nominal voltage
- Delayed action circuit breakers (C-characteristic) with 80 % max. load
- Maximum 10 % line voltage drop on heating cable bus wire
- Power connection to one heater end
Self-Regulating heat tracing System
A Trace Heater
B Power Connection Kit
C End Termination Kit
D Junction Box
E Pipe Mounting Bracket
F Fasteners and Self-adhesive Tapes, Foils
G Insulation Bushing
H Warning Sign
I Temperature Controller
J Temperature Sensor
Self-Regulating Heat Tracing System
