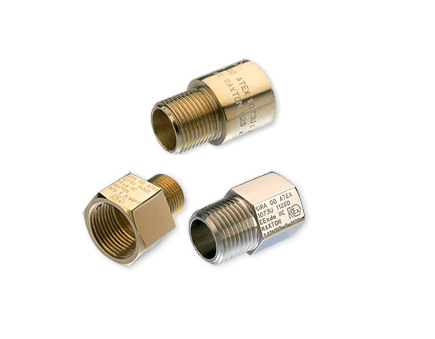

Raxton Exe Exd Adaptors AB AJ

Electrical Thread Conversions & Cable Installation Solutions for Hazardous Areas & Explosion Proof/Protection Applications

Exe Exd Adaptors

Flameproof & Increased Safety Adaptors

Adaptors | Flameproof & Increased Safety

Raxton Exd/Exe hazardous area adaptors provide a means of electrical connection between different thread forms and sizes – adaptors are ATEX Certified.

Standard Exe Exd adaptors, manufactured by Raxton, have a hexagonal body, or for applications where space is a critical factor, adaptors with a round body with a diameter equal to the A/F dimension of the standard item, may be more useful.

Raxton flameproof (Exd) and increased safety (Ex e) adaptors are marked with the applicable approval number and size.

Certified adaptors should be used following the basic rules in line with good engineering practice:- no more than one conversion adaptor should be used at one time on any given cable entry.

Materials

Brass: BS2874: 1985 CZ121
Mild Steel: BS970 PT3 230M07
Stainless Steel: BS970 PT3 316 S11
Aluminium: BS1474/1 6082 T4 or T6
Aluminium Bronze: BS1400 1985 AB2 or BS2874:1986 CA104

Raxton Exe & Exd adaptors are available in a variety of finishes including Nickel, Electro Zinc, Zinc Passivated, Chromatised, Electroless Nickel and Anodised.

Exd exe adaptor dimensions

Adaptors are available for up to 2 step sizing. e.g. M20 male x M32 female – the ATEX Certified adaptors are suitable for both Zone 1 & Zone 2 hazardous area installations.

Thread	Metallic Male Thread Max Bore	Nylon Male Thread Max Bore	Metallic Thread A/F (mm)	Nylon Head Dia. (mm)
M16	11.0	8.0	20.8	24.0
M20	14.3	12.5	23.4	27.5
M25	20.5	17.5	27.9	35.5
M32	26.8	24.5	37.6	41.0
M40	33.5	32.5	47.2	50.0
M50	44.0	42.5	56.4	60.0
M63	55.2	53.0	70.1	75.0
M75	66.7	64.0	80.0	85.0
M90	80.0	76.0	105.0	100.0

Hazardous Areas

The hazardous area adaptors are certified and approved to the following international hazardous area classifications and are Flameproof & Increased Safety Standards.

adaptor Thread selection

Isometric (ISO) to BS3643:1981 and ISO 965 Pts 1 & 3
Imperial (ET) to BS31:1940 (1979)
National Pipe Thread (NPT) to ANSI/ASME:1983
British Standard Pipe (BSP) to BS21:1985
Pg to DIN 40430:1971

These adaptor selection tables identify the standard thread variations produced and are designed to assist the user in selecting the correct hazardous area Exe/Exd adaptor suitable for use in Zone 1 or Zone 2 potentially explosive atmospheres according to the ATEX Directive.

Isometric to BS 3643:1981

Adaptor Size	Major Diameter (mm)	Threads per Inch	Pitch
16mm (M16)	16	16.93	1.50
20mm (M20)	20	16.93	1.50
25mm (M25)	25	16.93	1.50
32mm (M32)	32	16.93	1.50
40mm (M40)	40	16.93	1.50
50mm (M50)	50	16.93	1.50
63mm (M63)	63	16.93	1.50
75mm (M75)	75	16.93	1.50

National Pipe Thread to ANSI/ASME: 1983

Adaptor Size	Major Diameter (mm)	Threads per Inch	Pitch
1/8″ NPT	10.30	27	0.94
1/4″ NPT	13.72	18	1.41
3/8″ NPT	17.15	18	1.41
1/2″ NPT	21.34	14	1.81
3/4″ NPT	26.67	14	1.81
1″ NPT	33.40	11 1/2	2.20
1 1/4″ NPT	42.16	11 1/2	2.20
1 1/2″ NPT	48.26	11 1/2	2.20
2″ NPT	60.33	11 1/2	2.20
2 1/2″ NPT	73.03	8	3.175
3″ NPT	88.90	8	3.175
4″ NPT	114.30	8	3.175

British Standard Pipe to BS 21:1985

Adaptor Size	Major Diameter (mm)	Threads per Inch	Pitch
1/8″ BSP	9.73	28	0.91
1/4″ BSP	13.16	19	1.34
3/8″ BSP	16.66	19	1.34
1/2″ BSP	20.96	14	1.81
3/4″ BSP	26.44	14	1.81
1″ BSP	33.25	11	2.31
1 1/4″ BSP	41.91	11	2.31
1 1/2″ BSP	47.80	11	2.31
2″ BSP	59.61	11	2.31
2 1/2″ BSP	75.18	11	2.31
3″ BSP	87.88	11	2.31
4″ BSP	113.03	11	2.31

Adaptors, Reducers, Stopping Plugs & Breather Drains

For further information about the complete range of Raxton electrical thread conversion and flameproof/increased safety products for use with cables and ATEX electrical enclosures installed in potentially explosive atmospheres or hazardous area locations please refer to the information below:

Exd/Exe Reducers	Exd/Exe Male to Male & Female to Female Adaptors	Exd/Exe Right Angle Adaptors
Exd/Exe Swivel Adaptors	Exd/Exe Y and T Adaptors	Exd/Exe Stopping Plugs
Exd/Exe Breather Drains	Exd/Exe Compound Stopper Box	Exd/Exe Unions
