Raxton Swivel Adapters

Electrical Thread Conversions & Cable Installation Solutions for Hazardous Areas & Explosion Proof/Protection Applications

Exe Exd swivel Adaptors

Flameproof & Increased Safety Swivel Adaptors

Adaptors | Flameproof & Increased Safety

Raxton Exd/Exe hazardous area adaptors provide a means of electrical connection between different thread forms and sizes – adaptors are ATEX Certified.

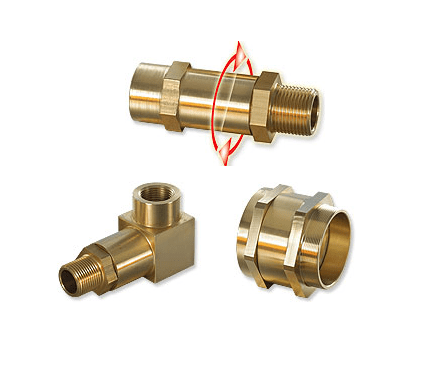

Exd/Exe Swivel Adaptors, manufactured by Raxton, are available in either right angle version or in-line versions, this new product is available in a variety of materials and a comprehensive range of thread forms.

Raxton flameproof (Exd) and increased safety (Ex e) swivel adaptors are ideal for applications where awkward cable entries are a problem.

Features

Rotates through 360 degrees
Facilitates easier cable positioning in confined spaces
Variety of thread forms
Available in Brass, Brass Nickel plated & Stainless Steel (316)
Male – Male, Male – Female and Female to Female versions available

Materials

Brass: BS2874: 1985 CZ121
Mild Steel: BS970 PT3 230M07
Stainless Steel: BS970 PT3 316 S11
Aluminium: BS1474/1 6082 T4 or T6
Aluminium Bronze: BS1400 1985 AB2 or BS2874:1986 CA104

Raxton Exe & Exd swivel adaptors are available in a variety of finishes including Nickel, Electro Zinc, Zinc Passivated, Chromatised, Electroless Nickel and Anodised.

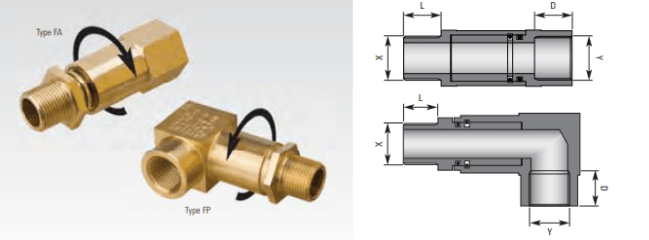

Exd exe swivel adaptor dimensions

Raxton Exd/Exe Swivel Adaptors

The ATEX Certified swivel adaptors are suitable for both Zone 1 & Zone 2 hazardous area installations.

Thread	Thread Y	Length (L) (mm)	Depth (D) (mm)	Min Wall (mm)
M16	M20	17.0	17.0	2.25
M25	M25-M20	17.0	17.0	2.75
M32	M32-M20	17.0	17.0	3.00
M40	M40-M20	17.0	17.0	3.00
M50	M50-M20	17.0	17.0	3.00
M63	M63-M20	17.0	17.0	3.25
M75	M75-M20	17.0	17.0	3.25

Hazardous Areas

The hazardous area swivel adaptors are certified and approved to the following international hazardous area classifications and are Flameproof & Increased Safety Standards.

Approvals & Certifications: Sira 10ATEX1056U | IECEx SIR 10.0025U (90 Degree Angle version) | IECEx SIR 12.0014X (Inline version) | INMETRO NCC 12.0764X

adaptor Thread selection

These adaptor selection tables identify the standard thread variations produced and are designed to assist the user in selecting the correct hazardous area Exe/Exd adaptor suitable for use in Zone 1 or Zone 2 potentially explosive atmospheres according to the ATEX Directive.

Isometric to BS 3643:1981

Adaptor Size	Major Diameter (mm)	Threads per Inch	Pitch
16mm (M16)	16	16.93	1.50
20mm (M20)	20	16.93	1.50
25mm (M25)	25	16.93	1.50
32mm (M32)	32	16.93	1.50
40mm (M40)	40	16.93	1.50
50mm (M50)	50	16.93	1.50
63mm (M63)	63	16.93	1.50
75mm (M75)	75	16.93	1.50

National Pipe Thread to ANSI/ASME: 1983

Adaptor Size	Major Diameter (mm)	Threads per Inch	Pitch
1/8″ NPT	10.30	27	0.94
1/4″ NPT	13.72	18	1.41
3/8″ NPT	17.15	18	1.41
1/2″ NPT	21.34	14	1.81
3/4″ NPT	26.67	14	1.81
1″ NPT	33.40	11 1/2	2.20
1 1/4″ NPT	42.16	11 1/2	2.20
1 1/2″ NPT	48.26	11 1/2	2.20
2″ NPT	60.33	11 1/2	2.20
2 1/2″ NPT	73.03	8	3.175
3″ NPT	88.90	8	3.175
4″ NPT	114.30	8	3.175

British Standard Pipe to BS 21:1985

Adaptor Size	Major Diameter (mm)	Threads per Inch	Pitch
1/8″ BSP	9.73	28	0.91
1/4″ BSP	13.16	19	1.34
3/8″ BSP	16.66	19	1.34
1/2″ BSP	20.96	14	1.81
3/4″ BSP	26.44	14	1.81
1″ BSP	33.25	11	2.31
1 1/4″ BSP	41.91	11	2.31
1 1/2″ BSP	47.80	11	2.31
2″ BSP	59.61	11	2.31
2 1/2″ BSP	75.18	11	2.31
3″ BSP	87.88	11	2.31
4″ BSP	113.03	11	2.31

Adaptors, Reducers, Stopping Plugs & Breather Drains

For further information about the complete range of Raxton electrical thread conversion and flameproof/increased safety products for use with cables and ATEX electrical enclosures installed in potentially explosive atmospheres or hazardous area locations please refer to the information below:

Exd/Exe Reducers	Exd/Exe Male to Male & Female to Female Adaptors	Exd/Exe Right Angle Adaptors
Exd/Exe Swivel Adaptors	Exd/Exe Y and T Adaptors	Exd/Exe Stopping Plugs
Exd/Exe Breather Drains	Exd/Exe Compound Stopper Box	Exd/Exe Unions
