Raxton Exd Insulated adaptors

Electrical Thread Conversions & Cable Installation Solutions for Hazardous Areas & Explosion Proof/Protection Applications

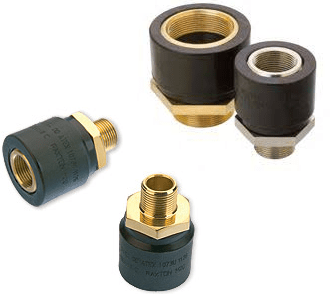

Exd insulated Adaptors

Flameproof Insulated Adaptors

Adaptors | Flameproof & Increased Safety

Raxton Exd hazardous area insulated adaptors provide a means to isolate the earth of the supply cable from the load equipment thus reducing the risk of damage to electronic equipment within the enclosure in the event of a short circuit to ground through the enclosure. – adaptors are ATEX Certified.

Insulated Exd adaptors, manufactured by Raxton, also reduce the problems of electrical noise on the armour affecting the clean earth required by some sensitive instruments. Single point grounding can reduce the circulating current that can cause heating of high capacity cables.

Cable gland and cable can still be earthed externally with the use of an earth tag fitted between the cable gland and the insulated adaptor.

Raxton flameproof (Exd) insulated adaptors are marked with the applicable approval number and size.

Materials

Brass: BS2874: 1985 CZ121
Mild Steel: BS970 PT3 230M07
Stainless Steel: BS970 PT3 316 S11
Aluminium: BS1474/1 6082 T4 or T6
Aluminium Bronze: BS1400 1985 AB2 or BS2874:1986 CA104
Nylon: 30% Glass filled Nylon 66

Raxton Exd insulated adaptors are available in a variety of finishes including Nickel, Electro Zinc, Zinc Passivated, Chromatised, Electroless Nickel and Anodised.

Exd exe adaptor dimensions

The ATEX Certified adaptors are suitable for both Zone 1 & Zone 2 hazardous area installations.

Thread	Protrusion (mm)	Bore (mm)	Nylon Head Dia. (mm)
M16	45.0	11.0	30.0
M20	45.0	14.3	42.0
M25	45.0	20.5	47.0
M32	45.0	26.8	54.0
M40	45.0	33.5	62.0
M50	45.0	44.0	77.0
M63	45.0	55.2	87.0
M75	45.0	66.7	102.0

Hazardous Areas

The hazardous area adaptors are certified and approved to the following international hazardous area classifications and are Flameproof.

Approvals & Certifications: Sira 00ATEX1073U | GOST TС С-GB.ГБ06.В00105

insulated adaptor Thread selection

Isometric (ISO) to BS3643:1981 and ISO 965 Pts 1 & 3
Imperial (ET) to BS31:1940 (1979)
National Pipe Thread (NPT) to ANSI/ASME:1983
British Standard Pipe (BSP) to BS21:1985
Pg to DIN 40430:1971

These insulated adaptor selection tables identify the standard thread variations produced and are designed to assist the user in selecting the correct hazardous area Exd adaptor suitable for use in Zone 1 or Zone 2 potentially explosive atmospheres according to the ATEX Directive.

Isometric to BS 3643:1981

Adaptor Size	Major Diameter (mm)	Threads per Inch	Pitch
16mm (M16)	16	16.93	1.50
20mm (M20)	20	16.93	1.50
25mm (M25)	25	16.93	1.50
32mm (M32)	32	16.93	1.50
40mm (M40)	40	16.93	1.50
50mm (M50)	50	16.93	1.50
63mm (M63)	63	16.93	1.50
75mm (M75)	75	16.93	1.50

National Pipe Thread to ANSI/ASME: 1983

Adaptor Size	Major Diameter (mm)	Threads per Inch	Pitch
1/8″ NPT	10.30	27	0.94
1/4″ NPT	13.72	18	1.41
3/8″ NPT	17.15	18	1.41
1/2″ NPT	21.34	14	1.81
3/4″ NPT	26.67	14	1.81
1″ NPT	33.40	11 1/2	2.20
1 1/4″ NPT	42.16	11 1/2	2.20
1 1/2″ NPT	48.26	11 1/2	2.20
2″ NPT	60.33	11 1/2	2.20
2 1/2″ NPT	73.03	8	3.175
3″ NPT	88.90	8	3.175
4″ NPT	114.30	8	3.175

British Standard Pipe to BS 21:1985

Adaptor Size	Major Diameter (mm)	Threads per Inch	Pitch
1/8″ BSP	9.73	28	0.91
1/4″ BSP	13.16	19	1.34
3/8″ BSP	16.66	19	1.34
1/2″ BSP	20.96	14	1.81
3/4″ BSP	26.44	14	1.81
1″ BSP	33.25	11	2.31
1 1/4″ BSP	41.91	11	2.31
1 1/2″ BSP	47.80	11	2.31
2″ BSP	59.61	11	2.31
2 1/2″ BSP	75.18	11	2.31
3″ BSP	87.88	11	2.31
4″ BSP	113.03	11	2.31

Adaptors, Reducers, Stopping Plugs & Breather Drains

For further information about the complete range of Raxton electrical thread conversion and flameproof/increased safety products for use with cables and ATEX electrical enclosures installed in potentially explosive atmospheres or hazardous area locations please refer to the information below:

Exd/Exe Reducers	Exd/Exe Male to Male & Female to Female Adaptors	Exd/Exe Right Angle Adaptors
Exd/Exe Swivel Adaptors	Exd/Exe Y and T Adaptors	Exd/Exe Stopping Plugs
Exd/Exe Breather Drains	Exd/Exe Compound Stopper Box	Exd/Exe Unions

➡ View all Exd Exe Adaptors, Reducers, Stopping Plugs & Breather Drain Plugs | ATEX Hazardous Area

Exd Exe Adaptors, Reducers, Stopping Plugs & Breather Drain Plugs | ATEX Hazardous Area
