Exe breather drains

Increased Safety Breather Drains

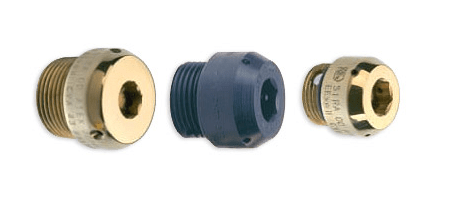

Raxton Exe hazardous area breather drains are designed to effectively drain moisture from an enclosure, allow air from the enclosure to vent into the surrounding atmosphere to minimise moisture build up and provide the explosion proof safety required by a hazardous area environments – adaptors are ATEX Certified.

The breather drain, manufactured by Raxton, is fastened by means of an Allen key, the breather drain should be fitted at the lowest point of the enclosure. Raxton Exe breather drains are tested to IP66.

Exe breather drains can be fitted into a chamfered plain hole using drainage washer and locknut or castellated locknut on the inside of the enclosure, or directly into a threaded hole provided that, if the thread protrudes, the drainage hole is visible.

Raxton breather drains can be supplied with either a serrated washer and locknut allowing the condensation to drain whilst ensuring the plug is shakeproof or with a castellated locknut.

The breather Drain is fitted with an ‘O’ ring as standard ensuring that the IP integrity of the installation is maintained.

Raxton increased safety (Ex e) breather drains are marked with the applicable approval number and size.

Materials

Brass: BS2874: 1985 CZ121
Stainless Steel: BS970 PT3 316 S11
Nylon: 30% Glass filled Nylon 66

Raxton Exe metallic drain plugs are available in a variety of finishes including Nickel, Electro Zinc, Zinc Passivated, Chromatised, Electroless Nickel and Anodised.

exe breather drain dimensions

The ATEX Certified breather drains are suitable for both Zone 1 & Zone 2 hazardous area installations.

Dimensions – Ex e (Type CV)

Thread	Dia. (mm)	Allen Key (mm)	Head Protrusion (mm)
M20	25.4	10	14
M25	30.5	10	14
M32	38.0	10	14
1/2″ NPT	25.4	10	14
3/4″ NPT	30.5	10	14
1″ NPT	38.0	10	14

Dimensions – Ex de (Type CT)

Thread	Hex AF (mm)	Thread Length (mm)	OAL (mm)
M20	27.0	16.0	31
M25	31.8	16.0	31
1/2″ NPT	27.0	20.0	35
1″ NPT	27.9	20.0	35

Hazardous Areas

Adaptors | Flameproof & Increased Safety

The hazardous area breather drains are certified and approved to the following international hazardous area classifications and Increased Safety Standards.

Approvals & Certifications:Sira 10ATEX3279X | IECEx SIR 09.0096X | GOST TC C-GB.ГБ06.В00105 | INMETRO NCC 12.0926X

breather drain Thread selection

Isometric (ISO) to BS3643:1981 and ISO 965 Pts 1 & 3
National Pipe Thread (NPT) to ANSI/ASME:1983
Imperial (ET) to BS31:1940 (1979)
British Standard Pipe (BSP) to BS21:1985
Pg to DIN 40430:1971

These breather drain selection tables identify the standard thread variations produced and are designed to assist the user in selecting the correct hazardous area Exe breather drain suitable for use in Zone 1 or Zone 2 potentially explosive atmospheres according to the ATEX Directive.

Isometric to BS 3643:1981

Adaptor Size	Major Diameter (mm)	Threads per Inch	Pitch
16mm (M16)	16	16.93	1.50
20mm (M20)	20	16.93	1.50
25mm (M25)	25	16.93	1.50
32mm (M32)	32	16.93	1.50
40mm (M40)	40	16.93	1.50
50mm (M50)	50	16.93	1.50
63mm (M63)	63	16.93	1.50
75mm (M75)	75	16.93	1.50

National Pipe Thread to ANSI/ASME: 1983

Adaptor Size	Major Diameter (mm)	Threads per Inch	Pitch
1/8″ NPT	10.30	27	0.94
1/4″ NPT	13.72	18	1.41
3/8″ NPT	17.15	18	1.41
1/2″ NPT	21.34	14	1.81
3/4″ NPT	26.67	14	1.81
1″ NPT	33.40	11 1/2	2.20
1 1/4″ NPT	42.16	11 1/2	2.20
1 1/2″ NPT	48.26	11 1/2	2.20
2″ NPT	60.33	11 1/2	2.20
2 1/2″ NPT	73.03	8	3.175
3″ NPT	88.90	8	3.175
4″ NPT	114.30	8	3.175

British Standard Pipe to BS 21:1985

Adaptor Size	Major Diameter (mm)	Threads per Inch	Pitch
1/8″ BSP	9.73	28	0.91
1/4″ BSP	13.16	19	1.34
3/8″ BSP	16.66	19	1.34
1/2″ BSP	20.96	14	1.81
3/4″ BSP	26.44	14	1.81
1″ BSP	33.25	11	2.31
1 1/4″ BSP	41.91	11	2.31
1 1/2″ BSP	47.80	11	2.31
2″ BSP	59.61	11	2.31
2 1/2″ BSP	75.18	11	2.31
3″ BSP	87.88	11	2.31
4″ BSP	113.03	11	2.31

Adaptors, Reducers, Stopping Plugs & Breather Drains

For further information about the complete range of Raxton electrical thread conversion and flameproof/increased safety products for use with cables and ATEX electrical enclosures installed in potentially explosive atmospheres or hazardous area locations please refer to the information below:

Exd/Exe Reducers	Exd/Exe Male to Male & Female to Female Adaptors	Exd/Exe Right Angle Adaptors
Exd/Exe Swivel Adaptors	Exd/Exe Y and T Adaptors	Exd/Exe Stopping Plugs
Exd/Exe Breather Drains	Exd/Exe Compound Stopper Box	Exd/Exe Unions
