Hazardous Area Thermostats | Flameproof Thermostat Zone 1 Zone 2 | EXHEAT RFT

EXHEAT RFT Hazardous Area Thermostats Flameproof Process Sensing Thermostat (Zone 1 & Zone 2)

EXHEAT Hazardous Area Thermostats: ATEX & IECEx

ATEX Process Sensing Thermostat | Zone 1 & Zone 2 (IIA, IIB, IIC) Hazardous Areas

Hazardous Area Thermostats

ATEX Certified

EXHEAT RFT hazardous area thermostats provide temperature control for hazardous area heating and air warming in Zone 1 & Zone 2 (Flammable Gas) explosive atmospheres according to ATEX Directive.

The EXHEAT RFT thermostat is supplied in a weatherproof or explosionproof enclosure to compliment the range of hazardous area air warmers and is designed for the temperature control within process tanks and vessels containing liquids.

Hazardous area thermostat with lightweight cast aluminium enclosure certified weatherproof to IP6X and is suitable for ambient temperatures from -20°C to +40°C.

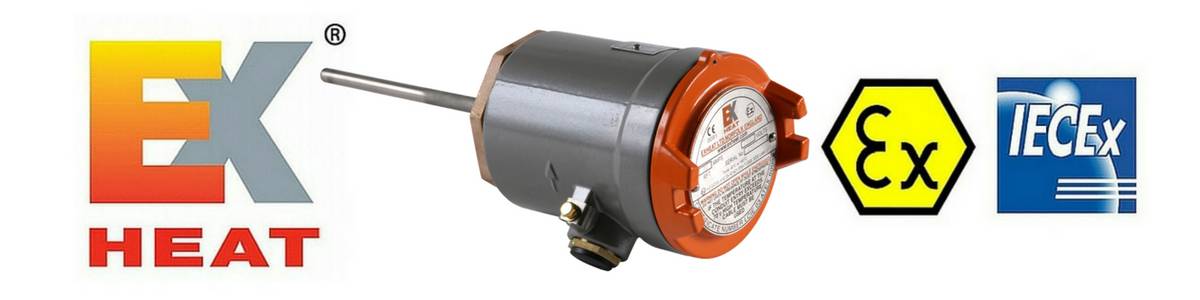

EXHEAT RFT Hazardous Area Thermostats Flameproof Process Sensing Thermostat

EXHEAT RFT Hazardous Area Thermostats Flameproof Process Sensing Thermostat

Features of EXHEAT RFT Hazardous Area Thermostats

  • Hazardous Area Certification – Certified to ATEX standards
  • Protection – Lightweight cast aluminium enclosure certified weatherproof to IP6X
  • Temperature range – Thermostats suitable for ambient temperatures from -20°C to +40°C
  • Installation – Mounting of the hazardous area thermostats can be by a threaded boss or an industry standard flange
  • Cable – 1 × M20 and 1 × M25 (plugged) cable entries provided as standard

EXHEAT RFT Hazardous Area Thermostat

ATEX Certification

Hazardous Area Thermostats For Zone 1 Zone 2 Hazardous Areas

Hazardous Area Thermostats For Zone 1 Zone 2 Hazardous Areas

Certification: ATEX  II 2 G
Ex d IIC T1 to T6 Gb Zone 1 and 2
Ex d t IIIC T450 to T85°C Db Zone 21 and 22

ATEX   II 2 G
Ex d IIC T1 to T6 Gb Zone 1 and 2
Ex d t IIIC T450 to T85°C Db Zone 21 and 22



EnclosureCast aluminium alloy with a maximum of two cable entries and external and internal earths
ControlsChoice of control range to suit process application
MountingAny threaded boss or flange in any material can be specified within the limits of the design parameters
Voltage20A on 250VAC maximum in a choice of switching configurations
EXHEAT

EXHEAT Stockist – Worldwide Delivery, Competitive Quotations

EXHEAT RFT Hazardous Area Thermostats – Applications

  • Hazardous Area Process Temperature Measurement
  • Process Temperature Measurement
  • Temperature Measurement
  • Thermowell Assemblies
  • Thermowells

EXHEAT RFT HAZARDOUS AREA THERMOSTATS

These RFT hazardous area thermostats are suitable for Zone 1 & Zone 2 (IIA, IIB, IIC) gas groups according to ATEX.

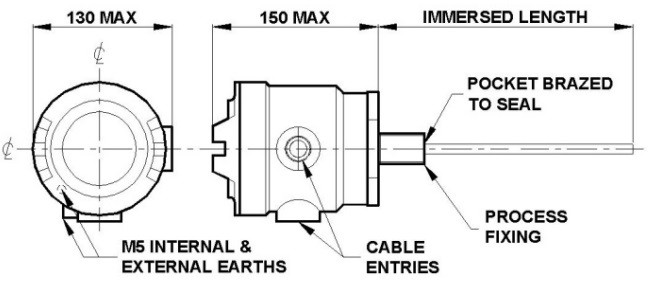

EXHEAT RFT Hazardous Area Thermostats Flameproof Process Sensing Thermostat - Dimensions

EXHEAT RFT Hazardous Area Thermostats Flameproof Process Sensing Thermostat – Dimensions
