Hazardous Area Technor G2X LED Lighting

ZONE 2, ZONE 22 led LIGHTING

LED Lighting for Zone 2, Zone 22 Hazardous Area Lighting Applications

Thorne & Derrick, a trusted specialist distributor of hazardous area lighting, offers competitive pricing and in-stock availability for the complete range of Technor hazardous area lighting solutions, including electrical enclosures and explosion-proof junction boxes. Our extensive inventory ensures quick delivery for ATEX-certified lighting designed for Zone 1, Zone 21, Zone 2, and Zone 22 applications.

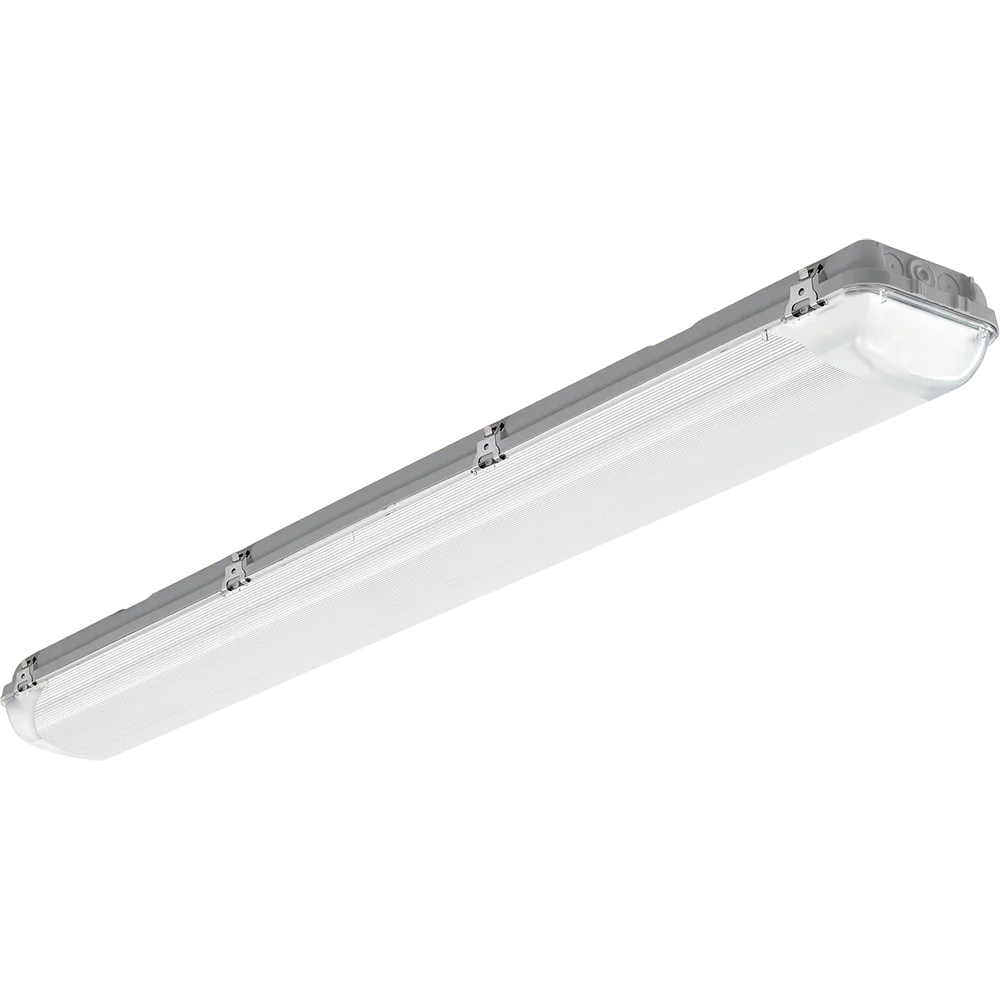

Technor’s G2X LED is an LED Ex nA lighting fixture suitable for hazardous area lighting in industrial plants and space included in Zone 2 and 22 and is manufactured from GRP with 2 gear tray holders in white lacquered steel plate. A transparent diffuser in PC provides UV protection and high impact resistance.

Technor G2X LED lighting is classified to international hazardous area classifications with ATEX certification, with ingress protection IP66 and an operational ambient temperature range of -20°C to +40°C.

Technor G2X LED LIGHTING

Technical Specification

Code	Technor Part Number	Dimensions (mm)	Power (W)	Service	Weight (kg)	Power Supply
A11020021W111	G2X LED 600 PC INOX	665 x 145 x 101	21W	Normal	2kg	230V AC/DC
A11020044W111	G2X LED 1200 PC INOX	1282 x 145 x 101	36W	Normal	3.25kg	230V AC/DC
A11020056W111	G2X LED 1500 PC INOX	1578 x 145 x 101	44W	Normal	3.6kg	230V AC/DC
A11020044W131	G2X LED EB 1200 PC INOX	1282 x 145 x 101	36W	Normal – 3H Emergency	3.45kg	230V AC
A11020056W131	G2X LED EB 1500 PC INOX	1578 x 145 x 101	44W	Normal – 3H Emergency	3.8kg	230V AC

Technor G2X LED Lighting – Technical Features

Material	GRP + 2 gear tray holders in white lacquered steel plate Transparent diffuser in PC with UV protection and high impact resistance
IP rating	IP66
Ambient temperature range	-20°C to +40°C
Approvals	OBAC 15 CZ/ATEX 163X
Standards	EN 60079-0, EN 60079-15, EN 60079-31
Zones	Zone 2 & Zone 22
Gaskets	Gasket in polyurethane (to obtain IP66 rating)
Entries	N° 1 passing entry M20
Hardware and screws	Fixing springs and closing clips in stainless steel
Lamps	LED Lamps
Ballast	Electronic
Rated Operation Voltage (UE)	230V AC/DC (normal service); 230V AC (emergency service); 110V according to execution
Frequency	50 – 60 Hz in AC
Accessories available upon request	Polyamide ATEX cable gland M20x1.5
Maximum Number of Terminals	3 x 2.5mm²

Hazardous Area Technor G2X LED Lighting – Features & Benefits

Simple, easy and quick installation
High resistance to corrosive industrial environment
High luminous efficiency
Quality ignition systems
UV resistant.
Easy maintenance
A high-quality LED source with high colour rendering

Hazardous Area Technor G2X LED Lighting – Dimensions

HAZARDOUS AREA CERTIFICATION & MARKING FOR Lighting

II 3 G

II 3G Ex nA IIC T6 Gc
II 3D Ex tc IIIC T85°C Dc IP66

Approvals

OBAC 15 CZ/ATEX 163X

Technor electrical equipment and Exd enclosures makes it possible to safely use instruments, lights, motors and equipment requiring electric power in potentially explosive atmospheres and hazardous areas.

Technor is part of the Marechal Electrical Group, leading manufacturer of ATEX plugs and sockets for hazardous areas and explosive atmospheres.

Technor hazardous area explosion proof and protected electrical equipment is specified in the following applications : oil refineries and offshore rigs, power stations, sugar refining, mines, sewage treatment plants, grain handling and storage, chemical plants, aircraft refuelling and hangars, printing, paper and textiles.

Technor products meet the requirements of the joint European standards (ATEX regulations) and each individual component are certiﬁed in accordance with speciﬁc Ex certiﬁcation requirements.
