Manual Call Point Ex de IIC | Zone 1 (21) & Zone 2 (22) Aluminium

Manual Call Point Ex de IIC Aluminium

PF-BExCP3A-BG-ST-NF-NL-RD

Manual call points, manufactured by Pepperl+Fuchs, allow the manual operation of a facility alarm system upon verification of an emergency, such as fire in a potentially explosive atmosphere or hazardous area location Zone 1 (21) or Zone 2 (22).

Call points are manufactured from corrosion resistant aluminium or glass fibre reinforced polyester (GRP), making them ideal for use in the harshest and hazardous industrial environments. Compliant to SIL 2 as well as ATEX, IECEx, EAC and INMETRO approvals, manual call points are suitable for ambient temperatures between -40 °C to +55 °C and are also available in Ex d (flameproof) or Ex i (intrinsic safety) variants.

➡ Contact Thorne & Derrick to learn more about the available options for your application.

manual call point

Specifications

Enclosure Colour: Red
Call Point Dimensions: 95 mm x 98 mm x 76 mm
Housing: Aluminium
Operating Voltage: 250 V AC max. , 50 V DC max.
Operating Current: 5 A AC max. 1 A DC max.
Terminal Capacity: 4 mm²
Spring mechanism with break glass
Hazardous Areas: Suitable for installation in Zone 1, Zone 2, Zone 21 and Zone 22
Explosion Protection: Ex de and Ex t certified

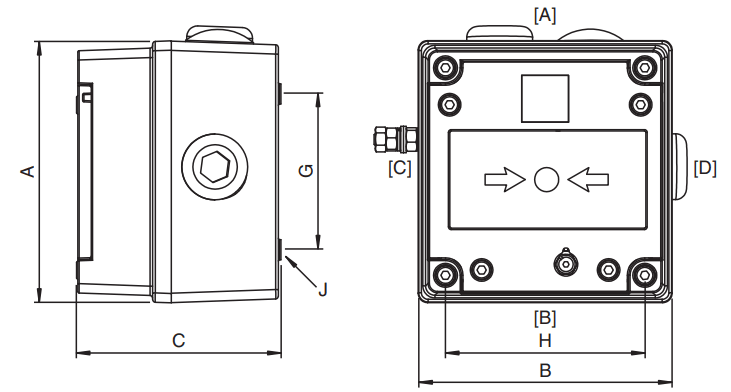

Manual Call Point Ex de IIC Aluminium | Dimensions

Legend

A	Height
B	Width
C	Depth
G	Mounting holes distance
H	Mounting holes distance
J	Mounting holes distance
[A] … [D]	Cable entry faces
