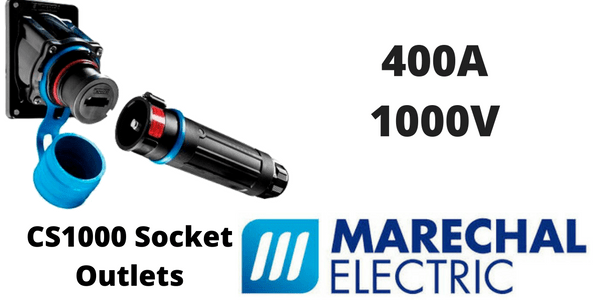

Marechal CS1000 400Amps Socket Outlets – 1000V IP66/67 IK08 Single Pole Power Connectors

Marechal CS1000 400Amps Socket Outlets – 1000V IP66/67 IK08 Single Pole Power Connectors

Marechal CS1000 400Amps socket outlets are compact and have a current rating of 400A and a maximum voltage of 1000V. CS1000 400Amps socket outlets have a locking mechanism preventing disconnection by accident with IP66/67 watertightness with cap; or upon connection.

The CS1000 socket outlets offer high performance thanks to its silver butt-contact technology it can withstand permanent current of 400 A / 1 000 V a.c. or1 500 V d.c. (wiring from 50 to 150 mm²).

➡ View the complete range of High Current Plugs – 75A to 700Amps 1,000V electrical connectors for heavy power requirements.

Marechal CS1000 socket outlets – Technical Specification

Rated Current (with wiring according to standard)	400A
Maximum Voltage a.c	1000V
Maximum Voltage d.c	1500 V
Short-circuit current Icc	20kA during 250 ms
Protection	IP66/IP67
Shock Resistance	IK08
Ambient Temperature	-40ºC to +60ºC
Flexible Wiring (Min-Max)	50mm² – 150mm²
Number of operations	2000
Keying Positions	mechanical (5) and visual

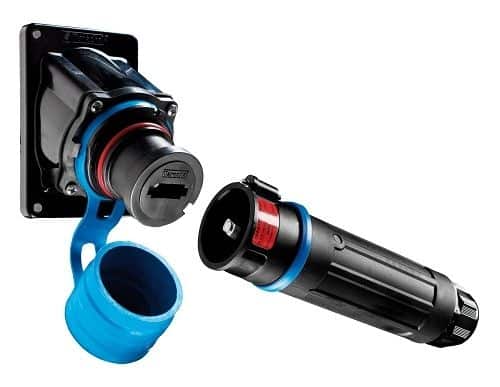

Marechal CS1000 400Amps Socket Outlets – 1000V IP6667 IK08 Single Pole Power Connectors

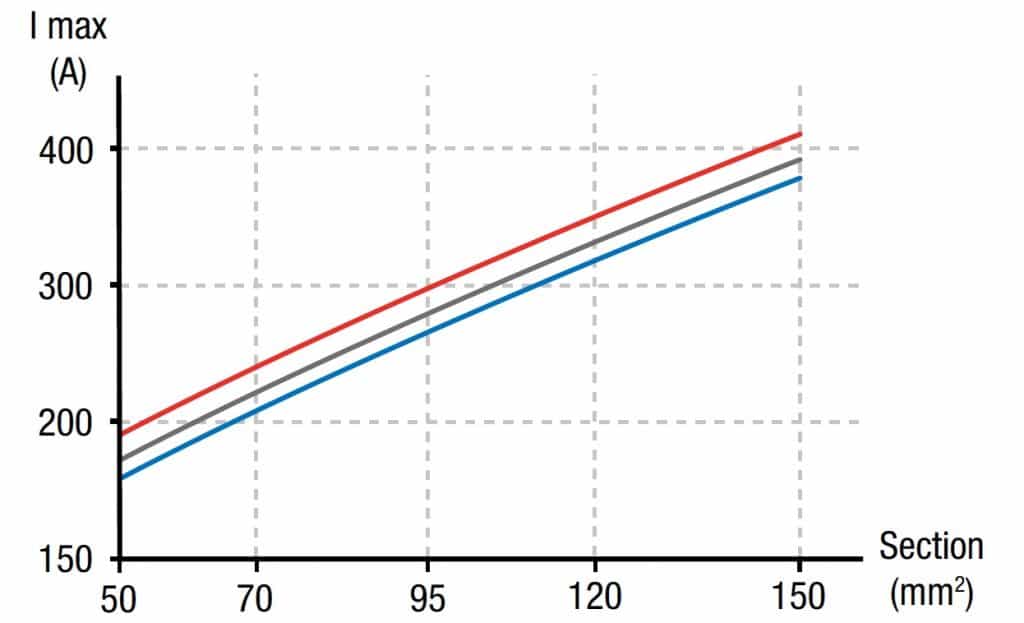

CS1000 Electrical Rating

Permanent permissible current for a H07RNF cable, at 30 °C ambient temperature

Red Line – Maximum permanent permissible current in the CS1000 after 2 000 operations depending on cable cross-section

Grey Line – Maximum intensity of permanent current specified by the cable manufacturers to maintain a conductor core temperature < 85 °C

Blue Line – Maximum intensity of permanent current specified bythe NFC 15-100 or the IEC 60 364-5-52 standards to maintain a conductor core temperature < 70 °C

MARECHAL HIGH CURRENT CONNECTOR TYPE CS1000

The CS1000 is a 1 kV single-pole connecting device without breaking capacity. The connection and disconnection must be made off-load. Live parts are protected against contact test finger (IP2X/ IPXXB), according to IEC/EN 60529. When connected, accessories have an IP66/IP67 protection. The socket-outlet alone has an IP66/IP67 protection when the cap is in place.

Warnings

These accessories must be installed by a qualified electrician, according to applicable installation standards and to the present instruction sheet
Use a conductor cross-section suitable for the load
The tightening torque must not be transmitted to the insulating part of the accessory. Maintain the rear of the contact with a suitable key while tightening
Respect tightening torques
These accessories must be used according to their designed destination, in a strict respect of the required operation of connection and disconnection
Marechal accessories must be used with Marechal complementary accessories only. Any repair or service must be achieved with genuine Marechal parts only
The cables must not exert any constraint on the accessories

Marechal CS1000 400Amps Socket Outlets – Install & Operation Guidelines

Install & Operation Guidelines

The nominal current and voltage must be indicated on the supplied adhesive stickers which must be then filled out legibly and affixed on the accessories.

Wiring

Five sizes of lugs and threaded ferrules are available (see general catalogue).
Strip the conductor by about 30 mm, according to the ferrule used.
Crimp the threaded lug or the ferrule with an appropriate die (NFC 20-130 or VDE 0220 or another). A double hexagonal crimping is recommended. For threaded lugs, do not crimp beyond the line.
Apply a torque of 40 N.m.

Assembly Of The Handle

Screw handle onto the product and tighten the cable gland with an appropriate tool. Block the rotation of the handle with the supplied screw.

Colour-Coded Ring And Colour-Coded Ring With Attached Cap

The colour-coded rings allow visual identification of the pole, according to the standardised colour code. Place these rings between the inlet or socket-outlet and its rear accessory or panel board. These rings act as seals.

For socket-outlets and connectors, the cap is attached to the colour-coded ring.

Operation

Insert the plug into the corresponding socket-outlet.
Turn a quarter of a turn to the right until locked.
To withdraw the plug, push the locking finger backwards with the key provided and turn the plug a quarter of a turn to the left. Put the cap back in place.
