Marechal DN8 Plugs & Sockets 20A 500V Decontactors
Marechal DN8 Plugs 20A 500V Decontactors
plugs & sockets 20A
marechal dN8

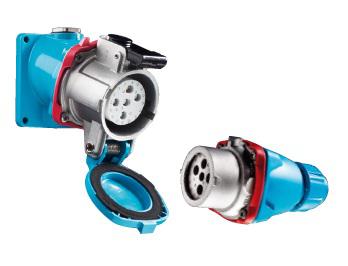

Marechal DN8 plugs and sockets are suitable for use in heavy duty environments and have a current rating of 20A and a maximum voltage of 500V.
Marechal DN8 plugs and sockets have a metal-bodied plug and socket-outlet with integral switching device AC-22, silver-nickel butt contacts with metallic braid that are compliant with international standards.
Marechal DN8 Plugs
Technical Specification
| Rated Current (with wiring according to standard) | 20A |
| Maximum Voltage | 500V |
| Ingress Protection Rating – Lid Closed | IP55 |
| Ingress Protection Rating – Connected Plug | IP54 |
| Impact Protection Rating (metal casing) | IK09 |
| Ambient Temperature | -40ºC to +60ºC |
| Flexible Wiring (Min – Max) | 1 mm² – 6 mm² |
| Stranded Wiring (Min – Max) | 1.5 mm² – 10 mm² |
| Other Wiring | On Request |
| Keying Positions | 16 |
Load Break Capability Of Decontactor
- Comply with IEC EN 60309-1 and IEC EN 60309-4 standards – 20 A / 500 V
- Load-break capability according to IEC EN 60947-3 / AC-22A – 20 A / 400 V or 10 A / 500 V
Marechal DN8 Decontactors | Typical Configuration
A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal DN range of plugs and sockets are suitable for rated currents from 20A up to 90A and maximum voltages of 500V.
Marechal DN8 – Socket Outlets & Inlets
| Voltage 50Hz | Polarity | Marechal Socket Outlet (Female) DN8 20A | Marechal Inlet (Male) DN8 20A |
| 20V – 24V | 2P | 198408A | 198808A |
| 220V – 250V | 1P+N+E | 1984015 | 1988015 |
| 380V – 440V | 3P+E | 1984013 | 1988013 |
| 220V – 250V / 380V – 440V* | 3P+N+E | 1984017 | 1988017 |
| 480V – 500V | 3P+E | 1984093 | 1988093 |
| 480V – 500V | 3P+N+E | 1984097 | 1988097 |
*Dual-voltage socket outlet
Power Distribution & Control In Hazardous Areas
T&D also distribute hazardous area isolators, control panels and distribution boards, electrical enclosures and motor starters certified according to ATEX for use in Zone 1 & Zone 2 (gas/vapour) explosive atmospheres.
